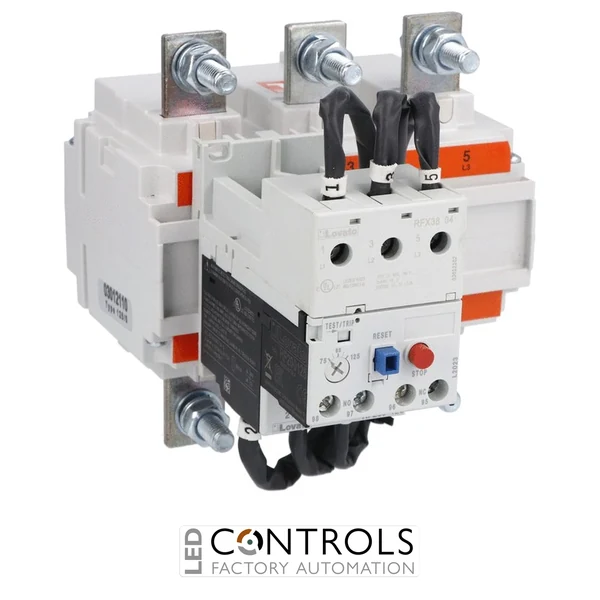

Lovato RF200150 is a three-pole Class 10A thermal motor protection relay with a 90–150 A adjustable operational current range, selectable manual or automatic resetting and compatibility with Lovato B series contactors.
£485.55
The Lovato RF200150 is a three-pole thermal motor protection relay designed for industrial three-phase motor applications. With an adjustable operational current range of 90–150 A, it provides thermal overload protection for higher-current motor control systems using compatible Lovato B series contactors.
Part of the Lovato RF200 motor protection relay series, the RF200150 combines a Class 10A tripping characteristic with selectable manual or automatic resetting. An integrated test button and trip indicator assist commissioning and maintenance, while one normally open and one normally closed auxiliary contact provide interfaces for control and signalling circuits.
With a 690 V rated operational voltage, 1000 V rated insulation voltage and 6 kV rated impulse withstand voltage, the RF200150 is designed for demanding industrial motor control installations. Its screw-mounted construction and M8 power terminals provide a robust connection arrangement for high-current motor protection applications.
Thermal overload relays protect motors against sustained overload conditions that can cause excessive heating and premature motor failure. An adjustable current setting allows the protection threshold to be matched to the rated operating current of the connected motor, helping provide appropriate thermal protection for the application.
The Lovato RF200150 combines a 90–150 A adjustment range with Class 10A tripping, selectable manual or automatic resetting, a test button and trip indication. Its 690 V rated operational voltage and robust screw-mounted construction make it suitable for higher-current industrial motor control systems.
| HS Code | 85364900 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | RF200 |
| Model | RF200150 |
| Product type | Thermal motor protection relay |
| Number of poles | 3 |
| Release type | Thermal |
| Operational current range | 90–150 A |
| Tripping class | 10A |
| Reset mode | Manual or automatic |
| Test button | Yes |
| Trip indicator | Yes |
| Auxiliary contacts | 1 NO + 1 NC |
| Rated operational voltage | 690 V |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Operational frequency | 50–60 Hz |
| Frontal protection rating | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| gG protection fuse | 250 A |
| aM protection fuse | 160 A |
| Power terminal type | Screw and flat washer |
| Power terminal screw | M8 |
| Power terminal width | 20 mm |
| Power terminal tightening torque | 18 Nm |
| Auxiliary rated insulation voltage | 690 V |
| Auxiliary rated impulse withstand voltage | 6 kV |
| Auxiliary rated operational voltage | 690 V |
| Auxiliary conventional free-air thermal current | 10 A at ≤40 °C |
| Maximum auxiliary flexible conductor section | 2.5 mm² |
| Auxiliary terminal tightening torque | 0.8–1 Nm |
| Operating temperature | -25 to +60 °C |
| Storage temperature | -50 to +70 °C |
| Temperature compensation range | -20 to +60 °C |
| Maximum altitude | 3000 m |
| Normal operating position | Vertical plane |
| Allowable mounting inclination | ±30° |
| Fixing | Screw |
| For contactor series | B |
| UL three-phase motor full-load current at 480 V | 150 A |
| UL three-phase motor full-load current at 600 V | 150 A |
| Weight | 2120 g |
| Package dimensions | 135 × 130 × 175 mm |
| Package volume | 3071.25 cm³ |
| Quantity per package | 1 |
| EAN13 | 8013975169483 |
| Conformity | IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 |
The Lovato RF200150 has an adjustable operational current range of 90–150 A.
The RF200150 has a Class 10A thermal overload tripping characteristic.
Yes. The RF200150 supports selectable manual or automatic reset.
The RF200150 incorporates one normally open and one normally closed auxiliary contact for integration with motor control and signalling circuits.
The RF200150 is specified for use with Lovato B series contactors.
The Lovato RF200150 provides adjustable 90–150 A thermal overload protection with Class 10A tripping, manual or automatic resetting and robust screw mounting for higher-current industrial motor control applications.
