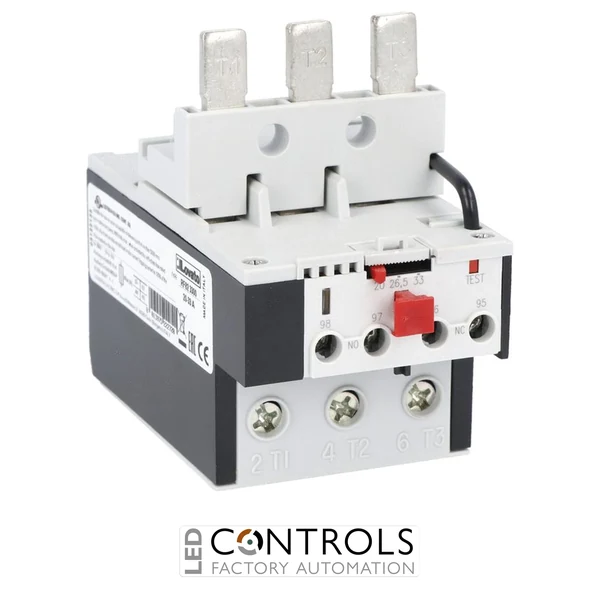

Lovato RF829500 is a three-pole Class 10A thermal overload motor protection relay with a 70-95 A operational current range, phase-failure sensitivity and direct mounting on BF40-BF94 contactors.
£218.06
The Lovato RF829500 is a robust three-pole thermal overload motor protection relay designed to protect three-phase motors against overload and phase failure conditions. Part of the Lovato RF82 motor protection relay series, it provides an adjustable operational current range of 70–95 A and is designed for direct mounting on Lovato BF40–BF94 contactors.
The RF829500 is phase-failure and single-phase sensitive and uses manual resetting for controlled restoration after a trip. Its Class 10A tripping characteristic, integrated test button and trip indicator support dependable motor protection, commissioning and fault identification in industrial installations.
With a rated operational voltage and insulation voltage of 690 V, an 8 kV rated impulse withstand voltage and an operational frequency range of 0–400 Hz, the RF829500 provides a versatile protection solution for industrial motor starters and control panels.
Thermal overload relays help protect electric motors by responding when sustained current exceeds the selected operating range. The Lovato RF829500 combines an adjustable 70–95 A current setting with phase-failure sensitivity and a Class 10A tripping characteristic for dependable three-phase motor protection.
Designed for direct mounting on Lovato BF40–BF94 contactors, the RF829500 supports compact motor starter construction. Its manual reset, test button and trip indicator provide straightforward operation, testing and fault identification in industrial motor control systems.
| HS Code | 85364900 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | RF82 |
| Model | RF829500 |
| Product type | Thermal overload motor protection relay |
| Number of poles | 3 |
| Release type | Thermal |
| Operational current | 70–95 A |
| Rated operational voltage | 690 V |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Operational frequency | 0–400 Hz |
| Tripping class | 10A |
| Phase failure detection | Yes |
| Reset mode | Manual |
| Test button | Yes |
| Trip indicator | Yes |
| Frontal protection rating | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Mounting type | Direct mounting on BF40–BF94 contactors |
| Terminal type | Yoke clamp |
| Terminal screw | M5 |
| Terminal width | 9 mm |
| Operating temperature | -20–55 °C |
| Storage temperature | -55–80 °C |
| Maximum altitude | 3000 m |
| Operating position | Vertical plane, ±30° allowable |
| Weight | 380 g |
| Quantity per package | 1 |
| Package dimensions | 97 × 65 × 90 mm |
| Package volume | 567.45 cm³ |
| EAN | 8013975243800 |
The RF829500 is a three-pole thermal overload motor protection relay designed to protect three-phase motors against overload and phase failure conditions.
The RF829500 has an adjustable operational current range of 70–95 A.
The RF829500 is designed for direct mounting on Lovato BF40–BF94 contactors.
The Lovato RF829500 has a Class 10A tripping characteristic.
Yes. The RF829500 is phase-failure and single-phase sensitive and uses manual resetting after a trip.
The Lovato RF829500 combines adjustable thermal overload protection, phase-failure sensitivity and direct BF contactor mounting for dependable motor protection in industrial control applications.
