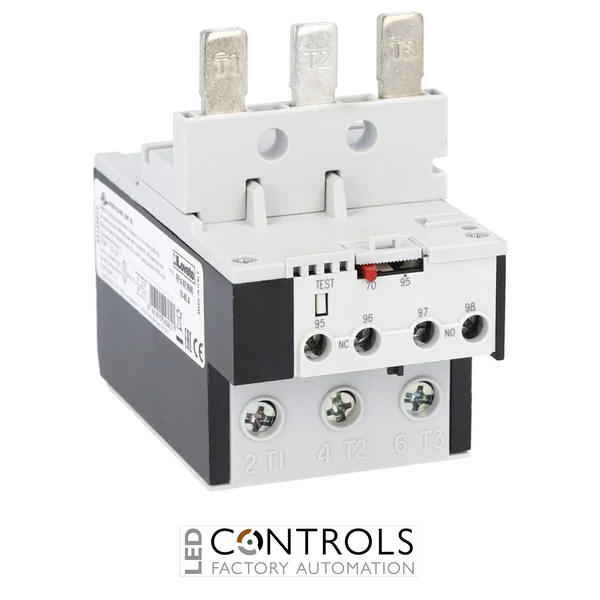

Lovato RFA823300 is a three-pole Class 10A thermal overload motor protection relay with a 20-33 A operational current range, phase-failure sensitivity, automatic resetting and direct mounting on BF40-BF94 contactors.
£138.29
The Lovato RFA823300 is a three-pole thermal overload motor protection relay designed to protect three-phase motors against overload, phase failure and single-phasing conditions. Part of the Lovato RFA82 motor protection relay range, it provides an adjustable operational current range of 20–33 A and is designed for direct mounting on Lovato BF40–BF94 contactors.
The RFA823300 features automatic resetting, allowing the relay to reset automatically after an overload trip once operating conditions permit. Its phase-failure sensitivity, Class 10A tripping characteristic, test button and trip indicator provide practical protection and status indication for industrial motor control systems.
With a rated operational voltage and insulation voltage of 690 V, an 8 kV rated impulse withstand voltage and an operational frequency range of 0–400 Hz, the RFA823300 is engineered for industrial motor starter applications. Its direct BF contactor mounting provides a compact installation within electrical control panels and machinery.
Thermal overload relays help protect electric motors by responding when sustained current exceeds the selected operating range. The Lovato RFA823300 combines an adjustable 20–33 A current setting with phase-failure sensitivity and Class 10A tripping performance for dependable protection of compatible three-phase motor circuits.
Designed for direct mounting on Lovato BF40–BF94 contactors, the RFA823300 supports compact motor starter construction. Its automatic reset function, test button, trip indicator and auxiliary contacts provide practical functionality for industrial motor control and automation systems.
| HS Code | 85364900 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | RFA82 |
| Model | RFA823300 |
| Product type | Thermal overload motor protection relay |
| Number of poles | 3 |
| Release type | Thermal |
| Operational current | 20–33 A |
| Rated operational voltage | 690 V |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Operational frequency | 0–400 Hz |
| Tripping class | 10A |
| Phase failure detection | Yes |
| Reset mode | Automatic |
| Test button | Yes |
| Trip indicator | Yes |
| Auxiliary contacts | 1 NO + 1 NC |
| Frontal protection rating | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Mounting type | Direct mounting on BF40–BF94 contactors |
| Power terminal type | Yoke clamp |
| Power terminal screw | M5 |
| Power terminal width | 9 mm |
| Operating temperature | -20–55 °C |
| Storage temperature | -55–80 °C |
| Maximum altitude | 3000 m |
| Operating position | Vertical plane, ±30° allowable |
| Quantity per package | 1 |
| Package dimensions | 97 × 65 × 90 mm |
| Package volume | 567 cm³ |
| EAN | 8013975224892 |
The RFA823300 is a three-pole thermal overload motor protection relay designed to protect three-phase motors against overload, phase failure and single-phasing conditions.
The RFA823300 has an adjustable operational current range of 20–33 A.
The RFA823300 is designed for direct mounting on Lovato BF40–BF94 contactors.
The Lovato RFA823300 uses automatic resetting.
Yes. The RFA823300 is phase-failure and single-phase sensitive and has a Class 10A tripping characteristic.
The Lovato RFA823300 combines adjustable thermal overload protection, phase-failure sensitivity, automatic resetting and direct BF contactor mounting for dependable motor protection in industrial control applications.
