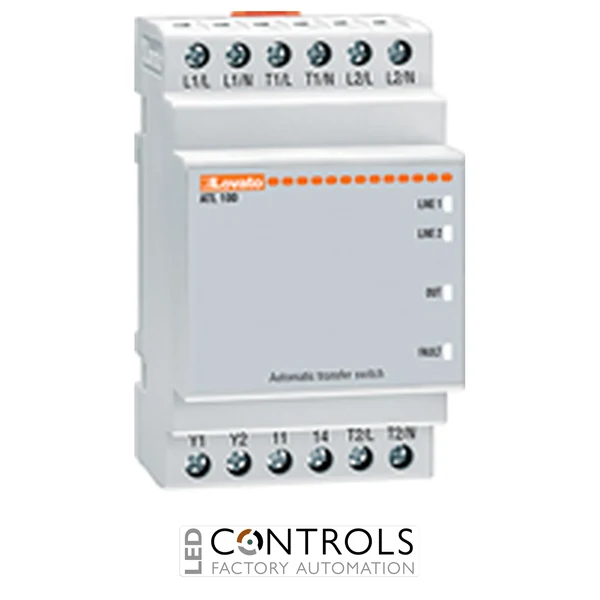

Lovato ATL100 automatic transfer switch controller for two single-phase power sources with 110–230 V AC supply designed for reliable automatic power changeover systems.
£234.38
The Lovato ATL100 is a compact automatic transfer switch (ATS) controller designed to manage automatic changeover between two independent single-phase power sources. As part of the reliable Lovato ATL Series automatic transfer switch controller range, it provides dependable monitoring and switching control for standby power systems, generator applications and electrical distribution installations.
The ATL100 continuously monitors supply voltage conditions and controls transfer operations between two power sources when used with suitable switching devices such as contactors. Its modular DIN rail housing, True RMS measurement and simple configuration make it an effective solution for applications where reliable power continuity is required.
With a 110–230 V AC supply range, single-phase voltage monitoring and control of two power sources, the Lovato ATL100 is suitable for automatic mains failure systems and compact power transfer applications.
Automatic transfer switch controllers such as the Lovato ATL100 provide intelligent supervision of electrical supplies and enable reliable transfer between primary and standby power sources. This helps maintain continuity of supply for essential equipment and electrical systems.
The ATL100 combines compact construction, accurate voltage monitoring and flexible relay outputs to simplify the implementation of automatic transfer solutions in modern electrical installations.
| HS Code | 85389091 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | ATL Automatic Transfer Switch Controllers |
| Model | ATL100 |
| Product type | Automatic transfer switch controller |
| Controlled power sources | 2 |
| Voltage input type | Single-phase |
| Rated supply voltage | 110–230 V AC |
| Operating supply voltage range | 80–300 V AC |
| Frequency | 50 / 60 Hz |
| Measurement method | True RMS (TRMS) |
| Digital inputs | 1 |
| Relay outputs | 3 |
| Relay output configuration | 2 × 2NO + 1 × alarm output |
| Mounting type | 35 mm DIN rail mounting |
| Housing | Modular polyamide enclosure |
| Protection rating | IP40 front / IP20 terminals |
| Dimensions (W × H × D) | 53.5 × 104.7 × 63 mm |
| Weight | approx. 300 g |
| Operating temperature | -30 to +70 °C |
The Lovato ATL100 is an automatic transfer switch controller used to manage automatic changeover between two single-phase electrical power sources.
The ATL100 can control two power sources, such as a mains supply and a standby generator supply.
The controller operates from a 110–230 V AC supply.
The ATL100 is a compact controller without a display, using status indication and relay outputs for control applications.
The ATL100 is typically installed on a 35 mm DIN rail inside electrical control panels.
Lovato automatic transfer switch controllers are widely used by electrical engineers and system integrators to provide dependable monitoring and automatic power source changeover for industrial and commercial installations.
