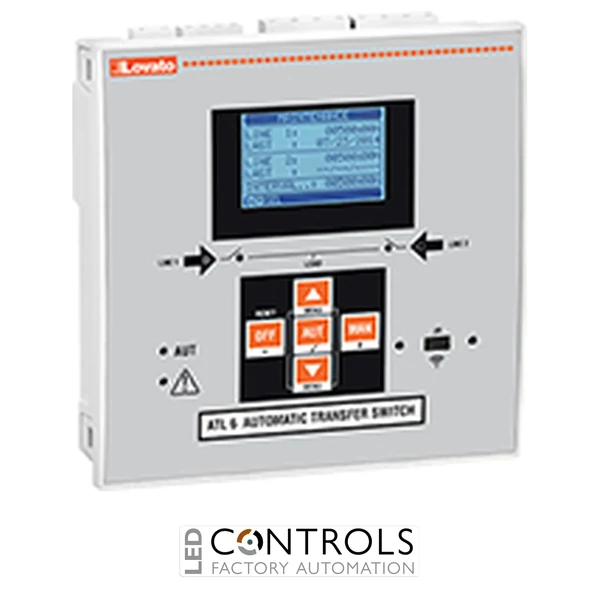

Lovato ATL610 automatic transfer switch controller for two power sources with LCD display, dual AC/DC supply and three-phase monitoring designed for reliable automatic power changeover systems.
£793.14
The Lovato ATL610 is an advanced automatic transfer switch (ATS) controller designed to manage automatic and manual changeover between two electrical power sources in critical power distribution systems. As part of the reliable Lovato ATL Series automatic transfer switch controller range, it provides intelligent monitoring, control and protection functions for mains and standby power applications.
The ATL610 continuously monitors electrical parameters and controls transfer operations between two independent power supplies. Its backlit LCD graphic display, True RMS measurement technology, programmable inputs and outputs, and expandable communication options make it suitable for industrial, commercial and emergency power installations.
With a dual AC/DC power supply of 110–240 V AC and 12–24 V DC, support for two power sources and three-phase voltage monitoring, the Lovato ATL610 provides a flexible solution for automatic mains failure systems and reliable power source management.
Automatic transfer switch controllers such as the Lovato ATL610 provide intelligent supervision of electrical supplies, ensuring reliable transfer between primary and backup power sources when required. This helps maintain continuity of supply for essential equipment and critical installations.
The ATL610 combines accurate measurement, programmable control functions, event logging and communication flexibility to simplify the design and operation of modern automatic transfer systems. Its expandable architecture allows integration into advanced energy management and industrial control environments.
| HS Code | 85389091 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | ATL Automatic Transfer Switch Controllers |
| Model | ATL610 |
| Product type | Automatic transfer switch controller |
| Controlled power sources | 2 |
| Voltage input type | Three-phase |
| Rated supply voltage | 12–24 V DC / 110–240 V AC |
| Operating supply range | 7.5–33 V DC / 90–264 V AC |
| Frequency | 50 / 60 Hz |
| Maximum rated voltage | 100–480 V AC L-L |
| Measurement range | 50–576 V AC L-L |
| Measurement method | True RMS (TRMS) |
| Digital inputs | 6 |
| Relay outputs | 7 |
| Relay output configuration | 6 × NO-SPST + 1 × C/O-SPDT |
| Display | Backlit LCD graphic display 128 × 80 pixels |
| Communication | Optical port with optional USB, Wi-Fi, RS232, RS485, Ethernet and Profibus modules |
| Mounting type | Flush panel mounting |
| Protection rating | IP40 front / IP20 terminals |
| Dimensions (W × H × D) | 144 × 144 × 52.2 mm |
| Weight | approx. 680 g |
| Operating temperature | -30 to +70 °C |
The Lovato ATL610 is an automatic transfer switch controller used to manage automatic and manual changeover between two electrical power sources.
The ATL610 can control two power sources, such as a mains supply and a standby generator supply.
The controller supports both 110–240 V AC and 12–24 V DC supply options.
Yes, the ATL610 supports three-phase voltage monitoring and configurable single-phase, two-phase and three-phase systems.
The ATL610 includes a 128 × 80 pixel backlit LCD graphic display for monitoring measurements, events and alarms.
Lovato automatic transfer switch controllers are widely used by electrical engineers and system integrators to deliver dependable power source monitoring, automatic changeover control and reliable operation for critical electrical installations.
