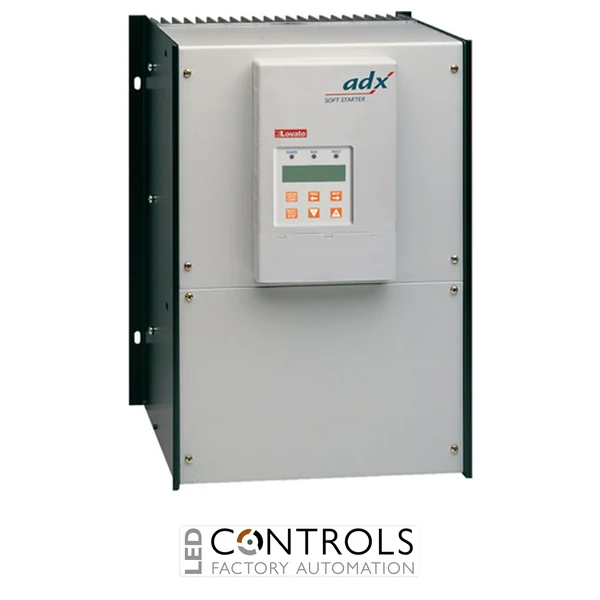

Lovato 51ADX0245B severe-duty three-phase soft starter rated at 245 A for 208–500 V AC asynchronous motors, with an integrated bypass contactor and IEC motor ratings up to 160 kW.
£7,630.18
The Lovato 51ADX0245B is an advanced three-phase soft starter designed for controlled starting and stopping of asynchronous three-phase motors in demanding industrial applications. As part of the Lovato Electric ADX...B soft starter series, it is designed for severe-duty operation with a starting current of up to 5 × Ie and incorporates an integrated bypass contactor.
The 51ADX0245B provides three-phase control with torque or voltage ramp starting and current limitation. Multiple stopping modes include torque ramp, voltage ramp and free-wheel stopping, while motor management functions include motor current thermal protection, torque control, kick start, dynamic braking, PTC input, event logging and RS232 communication.
With a rated starter current of 245 A and a three-phase 208–500 V AC supply, the 51ADX0245B supports IEC motor ratings of 75 kW at 230 V AC, 132 kW at 400 V AC and 160 kW at 500 V AC. Its integrated bypass contactor, forced cooling system and built-in LCD interface make it suitable for demanding high-power industrial motor-starting applications.
Soft starters progressively control the electrical power supplied to a motor during acceleration, helping to reduce the high starting current and mechanical stress associated with direct-on-line starting. The Lovato 51ADX0245B provides three-phase control with configurable torque or voltage ramp starting, allowing acceleration to be matched to the requirements of the motor and driven equipment.
The integrated bypass contactor carries the motor current after the starting sequence is complete, while forced cooling supports operation in demanding applications. Functions including current limitation, motor current thermal protection, torque control, kick start, dynamic braking, PTC monitoring and event logging provide comprehensive motor management for industrial machinery and process equipment.
| HS Code | 85371098 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | ADX...B |
| Model | 51ADX0245B |
| Product type | Advanced three-phase soft starter |
| Motor type | Asynchronous three-phase |
| Duty | Severe duty, starting current 5 × Ie |
| Rated starter current | 245 A |
| Rated supply voltage | 208–500 V AC |
| Auxiliary supply voltage | 208–240 V AC |
| Rated frequency | 50/60 Hz |
| Rated motor power at 230 V AC | 75 kW |
| Rated motor power at 400 V AC | 132 kW |
| Rated motor power at 500 V AC | 160 kW |
| UL motor rating at 220–240 V AC | 75 HP |
| UL motor rating at 380–415 V AC | 150 HP |
| UL motor rating at 440–480 V AC | 200 HP |
| Number of controlled phases | 3 |
| Built-in bypass | Yes |
| Cooling system | Forced cooling |
| Display | Backlit LCD, 2 × 16 characters |
| Starting method | Torque or voltage ramp with current limitation |
| Stopping methods | Torque ramp, voltage ramp and free-wheel stop |
| Braking method | DC dynamic braking with external relay |
| Digital outputs | 4 |
| Analogue outputs | 1 |
| Analogue output | 0–20 mA or 4–20 mA |
| Protection rating | IP00 |
| Pollution degree | 3 |
| Mounting type | Screw fixing |
| Operating temperature | -10 to +55 °C |
| Storage temperature | -30 to +70 °C |
| Maximum altitude without derating | 1000 m |
| Maximum relative humidity | 95% without condensation or dripping |
| Dimensions (W × H × D) | 273 × 680 × 310 mm |
| Weight | 39.3 kg |
| EAN | 8013975075401 |
The Lovato 51ADX0245B is an advanced three-phase soft starter designed for controlled starting and stopping of asynchronous three-phase motors in severe-duty industrial applications.
The 51ADX0245B has a rated starter current of 245 A.
Under IEC ratings at up to 40 °C, the soft starter supports 75 kW at 230 V AC, 132 kW at 400 V AC and 160 kW at 500 V AC.
Yes. The Lovato 51ADX0245B has an integrated bypass contactor for efficient operation after the motor starting sequence is complete.
The 51ADX0245B has a three-phase rated supply voltage of 208–500 V AC and requires a 208–240 V AC auxiliary supply.
Lovato Electric ADX soft starters provide advanced three-phase motor starting and stopping control, combining integrated motor protection, flexible control functions and built-in bypass technology for demanding industrial applications.
