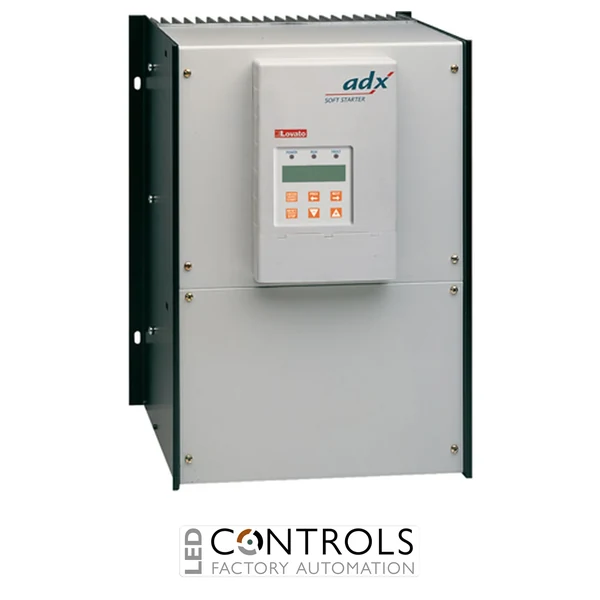

Lovato 51ADX0365 severe-duty three-phase soft starter rated at 365 A for 208–415 V AC asynchronous motors, with current-limited starting, torque control, motor thermal protection and provision for an external bypass contactor.
£10,249.78
The Lovato 51ADX0365 is an advanced three-phase soft starter designed for controlled starting and stopping of asynchronous three-phase motors in severe-duty industrial applications. As part of the Lovato Electric ADX soft starter series, it is designed for severe-duty operation with a starting current of up to 5 × Ie and is predisposed for use with an external bypass contactor.
The 51ADX0365 provides three-phase control with torque or voltage ramp starting and current limitation. It also supports torque-ramp, voltage-ramp and free-wheel stopping, together with motor current thermal protection, torque control, kick start, dynamic braking, PTC input, event logging and RS232 communication for comprehensive motor control and diagnostics.
With a rated starter current of 365 A and a three-phase 208–415 V AC rated supply, the 51ADX0365 has IEC motor ratings of 110 kW at 230 V AC and 200 kW at 400 V AC. Forced cooling and provision for an external bypass contactor make it suitable for demanding high-power industrial motor-starting applications.
Soft starters progressively control the electrical power supplied to a motor during acceleration, helping to reduce the high starting current and mechanical stress associated with direct-on-line starting. The Lovato 51ADX0365 provides three-phase control with configurable torque or voltage ramp starting, allowing acceleration to be matched to the requirements of the motor and driven equipment.
The 51ADX0365 is predisposed for connection to an external bypass contactor rather than incorporating an internal bypass. Its motor management functions include current thermal protection, current-limited starting, torque control, kick start, dynamic braking and PTC input, while the LCD display, event log and RS232 interface support configuration and diagnostics.
| HS Code | 85371098 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | ADX |
| Model | 51ADX0365 |
| Product type | Advanced three-phase soft starter |
| Motor type | Asynchronous three-phase |
| Duty | Severe duty, starting current 5 × Ie |
| Rated starter current | 365 A |
| Rated supply voltage | 208–415 V AC |
| Auxiliary supply voltage | 208–240 V AC |
| Rated frequency | 50/60 Hz |
| Rated motor power at 230 V AC | 110 kW |
| Rated motor power at 400 V AC | 200 kW |
| Number of controlled phases | 3 |
| Built-in bypass | No |
| External bypass | Predisposed for external bypass contactor |
| Cooling system | Forced cooling |
| Display | Backlit LCD, 2 × 16 characters |
| Starting method | Torque or voltage ramp with current limitation |
| Stopping methods | Torque ramp, voltage ramp and free-wheel stop |
| Digital outputs | 4 |
| Digital output arrangement | 3 × 1 NO (SPST) + 1 C/O (SPDT) |
| Analogue outputs | 1 |
| Analogue output | 0–20 mA or 4–20 mA |
| Protection rating | IP00 |
| Pollution degree | 3 |
| Mounting type | Screw fixing |
| Operating temperature | -10 to +55 °C |
| Storage temperature | -30 to +70 °C |
| Maximum altitude without derating | 1000 m |
| Maximum relative humidity | 95% without condensation or dripping |
| Dimensions (W × H × D) | 640 × 600 × 380 mm |
| Weight | 49.3 kg |
| EAN | 8013975064092 |
The Lovato 51ADX0365 is an advanced three-phase soft starter designed for controlled starting and stopping of asynchronous three-phase motors in severe-duty industrial applications.
The 51ADX0365 has a rated starter current of 365 A.
Under IEC ratings at up to 40 °C, the soft starter is rated for 110 kW at 230 V AC and 200 kW at 400 V AC.
No. The Lovato 51ADX0365 is predisposed for an external bypass contactor, which must be provided separately when required by the installation.
The 51ADX0365 has a three-phase rated supply voltage of 208–415 V AC and requires a 208–240 V AC auxiliary supply.
Lovato Electric ADX soft starters provide advanced three-phase motor starting and stopping control, combining configurable torque and current control, comprehensive motor protection and external bypass capability for demanding industrial applications.
