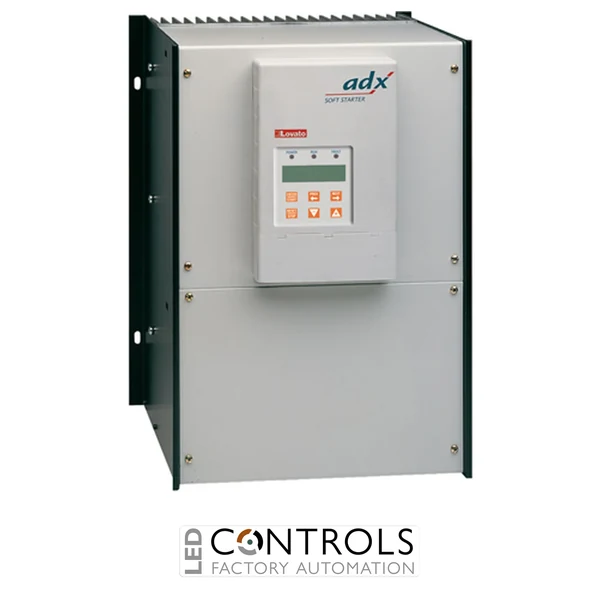

Lovato 51ADX0568 severe-duty three-phase soft starter rated at 568 A for 208–415 V AC asynchronous motors, with adjustable current limitation, motor protection and provision for an external bypass contactor.
£13,863.60
The Lovato 51ADX0568 is an advanced three-phase soft starter designed for progressive starting and stopping of asynchronous three-phase motors in severe-duty industrial applications. As part of the Lovato Electric ADX soft starter series, it is designed for severe-duty starting at up to 5 × Ie and is predisposed for connection to an external bypass contactor.
The 51ADX0568 provides three-phase control with torque or voltage ramp starting and adjustable current limitation. It also supports torque-ramp, voltage-ramp and free-wheel stopping, together with motor electronic overload protection, torque control, kick start, dynamic braking and PTC motor protection for comprehensive motor management.
With a rated starter current of 568 A and a three-phase 208–415 V AC rated supply, the 51ADX0568 supports IEC motor ratings of 160 kW at 230 V AC, 315 kW at 400 V AC and 400 kW at 500 V AC. Its forced cooling system and provision for an external bypass contactor make it suitable for demanding high-power industrial motor-starting applications.
Soft starters progressively control the electrical power supplied to a motor during acceleration, helping to reduce the high starting current and mechanical stress associated with direct-on-line starting. The Lovato 51ADX0568 provides three-phase control with configurable torque or voltage ramp starting, allowing acceleration to be matched to the requirements of the motor and driven equipment.
The 51ADX0568 is predisposed for connection to an external bypass contactor rather than incorporating an internal bypass. Its protection functions include motor overload protection during starting and running, locked-rotor detection, current asymmetry monitoring, minimum-torque protection, phase-loss and phase-sequence protection, overcurrent protection and overtemperature protection.
| HS Code | 85371098 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | ADX |
| Model | 51ADX0568 |
| Product type | Advanced three-phase soft starter |
| Motor type | Asynchronous three-phase |
| Duty | Severe duty, starting current 5 × Ie |
| Rated starter current | 568 A |
| Rated supply voltage | 208–415 V AC |
| Auxiliary supply voltage | 208–240 V AC |
| Rated frequency | 50/60 Hz |
| Rated motor power at 230 V AC | 160 kW |
| Rated motor power at 400 V AC | 315 kW |
| Rated motor power at 500 V AC | 400 kW |
| UL motor rating at 220–240 V AC | 200 HP |
| UL motor rating at 380–415 V AC | 350 HP |
| UL motor rating at 440–480 V AC | 400 HP |
| Number of controlled phases | 3 |
| Built-in bypass | No |
| External bypass | Predisposed for external bypass contactor |
| Cooling system | Forced cooling |
| Display | Backlit LCD, 2 × 16 characters |
| Starting method | Torque or voltage ramp with current limitation |
| Stopping methods | Torque ramp, voltage ramp and free-wheel stop |
| Braking method | DC dynamic braking with external relay |
| Digital inputs | 3 |
| Analogue inputs | 1 |
| Digital outputs | 4 |
| Digital output arrangement | 3 × 1 NO (SPST) + 1 C/O (SPDT) |
| Analogue outputs | 1 |
| Analogue output | 0–20 mA or 4–20 mA |
| Protection rating | IP00 |
| Pollution degree | 3 |
| Mounting type | Screw fixing |
| Operating temperature | -10 to +55 °C |
| Storage temperature | -30 to +70 °C |
| Maximum altitude without derating | 1000 m |
| Maximum relative humidity | 95% without condensation or dripping |
| Dimensions (W × H × D) | 790 × 650 × 430 mm |
| Weight | 95 kg |
| EAN | 8013975068083 |
The Lovato 51ADX0568 is an advanced three-phase soft starter designed for progressive starting and stopping of asynchronous three-phase motors in severe-duty industrial applications.
The 51ADX0568 has a rated starter current of 568 A.
Under IEC ratings at up to 40 °C, the soft starter is rated for 160 kW at 230 V AC, 315 kW at 400 V AC and 400 kW at 500 V AC.
No. The Lovato 51ADX0568 is predisposed for an external bypass contactor, which must be provided separately when required by the installation.
The 51ADX0568 has a three-phase rated supply voltage of 208–415 V AC and requires a 208–240 V AC auxiliary supply.
Lovato Electric ADX soft starters provide advanced three-phase motor starting and stopping control, combining configurable torque and current control, comprehensive motor protection and external bypass capability for demanding industrial applications.
