Lovato Electric LP9P11R electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£66.99

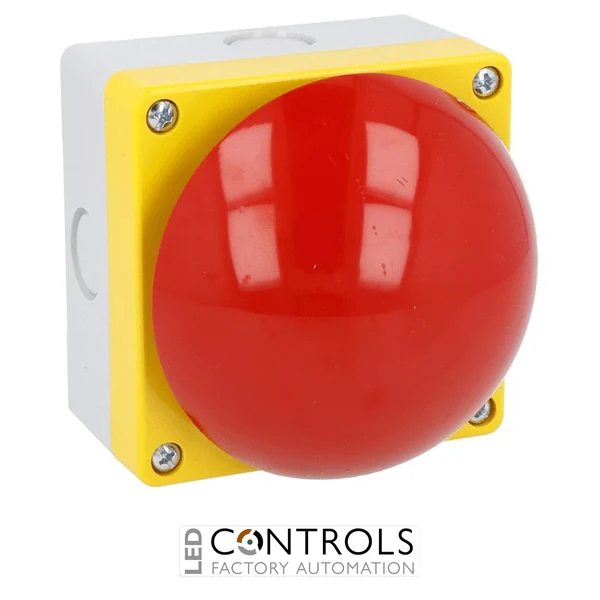

The Lovato LP9P11R is a robust emergency palm switch from the Lovato Electric LP9 series, designed to provide reliable emergency stop control for industrial machinery, automation systems and safety circuits. This large-format palm-operated switch features a highly visible red mushroom actuator and a pull-to-release reset mechanism for dependable emergency operation.
Designed for demanding industrial environments, the LP9P11R combines durable construction with excellent operator accessibility. Its Ø90 mm red mushroom actuator enables rapid activation during emergency situations, while the pull-to-release function helps prevent accidental machine restart after activation.
The emergency palm switch features a 1 normally open + 1 normally closed (1NO+1NC) contact configuration, IP65 protection and a compact surface-mounted design suitable for machinery safety applications. It is ideal for industrial systems where reliable emergency stopping and operator protection are required.
Emergency palm switches are essential safety devices used to quickly stop machinery during hazardous conditions. The Lovato LP9P11R provides operators with an easily accessible emergency control interface designed for dependable operation in industrial environments.
Its large mushroom actuator, pull-to-release reset function and combined NO/NC contacts make it suitable for safety circuits requiring dependable emergency isolation and machine protection.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 300 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X100X100 |
| Volume [cm³] | 1000 |
| Bar code [EAN13] | 8013975266298 |
| Product designation | Palm switches |
| Product type designation | LP9 |
| Colour | Grey/Yellow with red mushroom |
| Type of positions | Pull to release |
| Resistance value | ≤0.025 |
| Material | PC-ABS for button and control station. Chrome-plasted zamak for metal operator frame |
| IEC degree of protection | IP65 |
| Rated insulation voltage Ui IEC/EN [V] | 690 |
| IEC Conventional free air thermal current Ith | 10 |
| Rated frequency [Hz] | 50 |
| Conductivity | 5V 10mA |
| UL/CSA and IEC/EN 60947-5-1 designation | A600 Q300 |
| 12V | 3 |
| 24V | 3 |
| 48V | 1.5 |
| 120V | 6 |
| 240V | 3 |
| 400V | 1.9 |
| 480V | 1.5 |
| 500V | 0.13 |
| 600V | 0.1 |
| 125V | 0.55 |
| 250V | 0.27 |
| 440V | 0.15 |
| Operating force | ≤2.6Nm |
| Mechanical life | 1000000 |
| Tightening torque for terminals max [Nm] | 0.5 … 0.8 Nm |
| min [mm²] | 0.5 |
| max [mm²] | 2.5 |
| allowable | Any |
| min [°C] | -40 |
| max [°C] | +85 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
| HS Code | 85365080 |
The Lovato LP9P11R is an emergency palm switch used to provide rapid machine stopping control in industrial safety applications.
The LP9P11R uses a pull-to-release reset mechanism, requiring the operator to manually release the mushroom actuator before restarting.
The switch features one normally open and one normally closed contact (1NO+1NC) for integration into safety control circuits.
The Lovato LP9P11R has an IP65 protection rating, making it suitable for industrial environments.
The emergency palm switch is typically installed on machinery, production lines and industrial control systems requiring accessible emergency stop functionality.
Lovato Electric safety switches are widely used by machine builders, panel manufacturers and automation engineers to provide reliable emergency control solutions for industrial equipment.
