Lovato Electric LP9S01R electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
£47.34

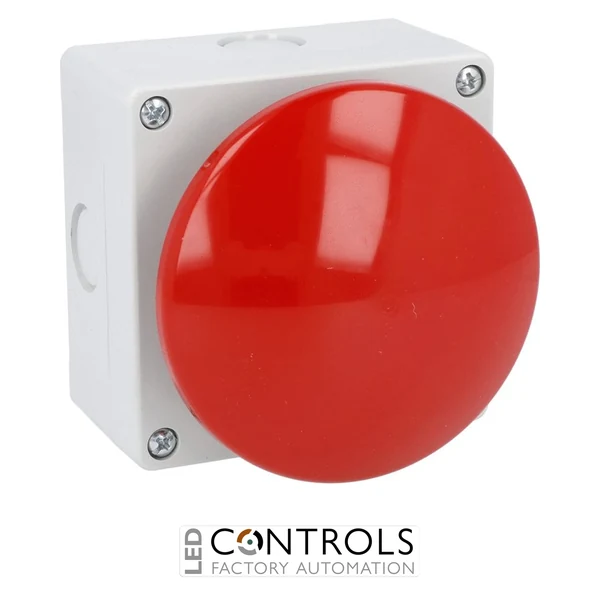

The Lovato LP9S01R is a reliable momentary emergency palm switch from the Lovato Electric LP9 series, designed for industrial machinery, automation systems and safety control applications. This large-format palm-operated switch features a highly visible Ø90 mm red mushroom actuator with spring return operation, providing operators with fast and effective manual control during emergency situations.
Designed for demanding industrial environments, the LP9S01R combines a robust construction with dependable switching performance. Its large red mushroom operator allows quick access, while the momentary spring-return mechanism ensures the actuator returns to its normal position after release.
The emergency palm switch features a 1 normally closed (1NC) contact configuration, IP65 protection and a compact surface-mounted design suitable for machinery safety circuits. It is ideal for applications requiring reliable operator intervention and emergency control functionality.
Emergency palm switches provide operators with a large and accessible control interface for quickly interrupting machine operation when required. The Lovato LP9S01R delivers dependable switching performance for industrial environments where safety and operator response are essential.
Its highly visible red mushroom actuator, spring-return mechanism and normally closed contact make it suitable for integration into industrial safety circuits, machinery controls and automation systems.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 210 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X100X100 |
| Volume [cm³] | 1000 |
| Bar code [EAN13] | 8013975266267 |
| Product designation | Palm switches |
| Product type designation | LP9 |
| Colour | Grey with red mushroom |
| Type of positions | Momentary |
| Resistance value | ≤0.025 |
| Material | PC-ABS for button and control station. PA66 for plastic operator frame |
| IEC degree of protection | IP65 |
| Rated insulation voltage Ui IEC/EN [V] | 690 |
| IEC Conventional free air thermal current Ith | 10 |
| Rated frequency [Hz] | 50 |
| Conductivity | 5V 10mA |
| UL/CSA and IEC/EN 60947-5-1 designation | A600 Q300 |
| 12V | 3 |
| 24V | 3 |
| 48V | 1.5 |
| 120V | 6 |
| 240V | 3 |
| 400V | 1.9 |
| 480V | 1.5 |
| 500V | 0.13 |
| 600V | 0.1 |
| 125V | 0.55 |
| 250V | 0.27 |
| 440V | 0.15 |
| Operating force | ≤2.6Nm |
| Mechanical life | 1000000 |
| Tightening torque for terminals max [Nm] | 0.5 … 0.8 Nm |
| min [mm²] | 0.5 |
| max [mm²] | 2.5 |
| allowable | Any |
| min [°C] | -40 |
| max [°C] | +85 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
| HS Code | 85365080 |
The Lovato LP9S01R is a momentary emergency palm switch used to provide manual operator control and safety intervention in industrial applications.
The LP9S01R uses a spring return mechanism, allowing the mushroom actuator to return after being released.
The switch features one normally closed (1NC) contact for connection to safety control circuits.
The Lovato LP9S01R provides an IP65 protection rating, making it suitable for industrial environments.
The emergency palm switch is typically installed on machinery, production lines and industrial control systems requiring accessible emergency operation.
Lovato Electric safety devices are widely used by machine builders, panel manufacturers and automation engineers to provide dependable emergency control solutions for industrial equipment.
