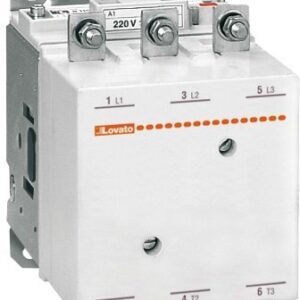

Lovato 11B11500110 is a B115 three-pole power contactor with a 110 A AC-3 rating, 61 kW motor capacity at 400 V and a 110–125 V AC/DC control coil for industrial motor switching.
Original price was: £587.78.£411.45Current price is: £411.45.
The Lovato 11B11500110 is a heavy-duty three-pole power contactor designed for controlling industrial motors and high-current electrical loads. As part of the Lovato B Series, this B115 contactor provides dependable electromagnetic switching for machinery, automation systems and electrical distribution equipment.
Its three normally open main poles provide an AC-3 operational current rating of 110 A at voltages up to 440 V. The contactor also supports three-phase motors rated up to 61 kW at 400 V AC, making it suitable for demanding motor starting and switching applications.
The 11B11500110 features an AC/DC coil rated from 110–125 V, allowing it to operate from either AC or DC control circuits. Screw mounting, robust power terminals and a mechanical life of 10,000,000 operating cycles support reliable integration into industrial control panels.
Power contactors use an electromagnetic coil to open and close their main contacts, enabling high-current equipment to be controlled by a lower-power command circuit. The Lovato 11B11500110 provides three normally open poles for switching three-phase motors and other industrial AC loads.
Its AC/DC coil supports integration with different control supply arrangements, while the high current and motor power ratings suit demanding machinery. Auxiliary contacts, overload protection and mechanical interlocking accessories can be selected separately to create a complete motor control assembly.
| Manufacturer | Lovato Electric |
|---|---|
| Series | B Series |
| Model | 11B11500110 |
| Product designation | B115 |
| Product type | Three-pole power contactor |
| Number of poles | 3 |
| Main contact configuration | 3NO |
| Coil type | AC/DC |
| Rated control voltage | 110–125 V AC/DC |
| AC coil frequency | 50 / 60 Hz |
| AC-3 operational current | 110 A at up to 440 V |
| AC-4 operational current | 47 A at 400 V |
| Conventional free-air thermal current | 160 A |
| AC-1 operational current | 160 A at up to 40 °C |
| AC-3 motor rating | 61 kW at 400 V |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Operational frequency range | 25–400 Hz |
| Mechanical life | 10,000,000 cycles |
| Electrical life | 1,100,000 cycles |
| Operating temperature | −50 to +70 °C |
| Maximum operating altitude | 3000 m |
| Mounting type | Screw mounting |
| Power terminal protection | IP00 |
| Weight | 5290 g |
| Applicable standards | IEC/EN 60947-1 and IEC/EN 60947-4-1 |
It is used to switch three-phase motors and other high-current electrical loads in industrial control and automation systems.
The Lovato 11B11500110 has an AC-3 operational current rating of 110 A at voltages up to 440 V.
It is rated to control three-phase motors with an AC-3 operational power of up to 61 kW at 400 V.
The contactor has an AC/DC coil rated for a control voltage of 110–125 V AC/DC.
The 11B11500110 has three normally open main poles for switching three-phase electrical loads.
Lovato B Series contactors provide panel builders, machine manufacturers and automation engineers with robust switching performance for industrial motors and high-current electrical loads.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B11500110 B115 Three-Pole Contactor 110 A", "sku": "11B11500110", "mpn": "11B11500110", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Contactors", "description": "Lovato 11B11500110 is a B115 three-pole power contactor with a 110 A AC-3 rating, 61 kW motor capacity at 400 V and a 110–125 V AC/DC control coil for industrial motor switching.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "AC-3 operational current", "value": "110 A" }, { "@type": "PropertyValue", "name": "Motor rating", "value": "61 kW at 400 V" }, { "@type": "PropertyValue", "name": "Control voltage", "value": "110–125 V AC/DC" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "1000 V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B11500110 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is used to switch three-phase motors and other high-current electrical loads in industrial control and automation systems." } }, { "@type": "Question", "name": "What is the AC-3 current rating of this contactor?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11B11500110 has an AC-3 operational current rating of 110 A at voltages up to 440 V." } }, { "@type": "Question", "name": "What motor power can the contactor control?", "acceptedAnswer": { "@type": "Answer", "text": "It is rated to control three-phase motors with an AC-3 operational power of up to 61 kW at 400 V." } }, { "@type": "Question", "name": "What control voltage does the coil require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an AC/DC coil rated for a control voltage of 110–125 V AC/DC." } }, { "@type": "Question", "name": "How many main poles does the contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "The 11B11500110 has three normally open main poles for switching three-phase electrical loads." } } ] }
