Why Choose the Lovato 11B1150024 Three-Pole Contactor?

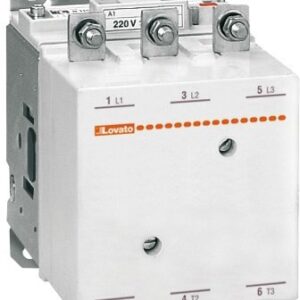

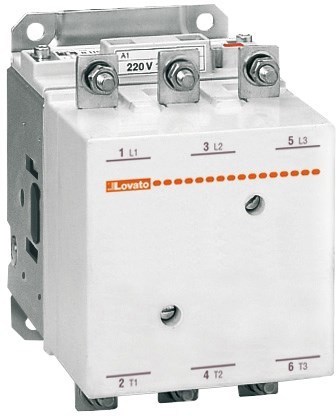

The Lovato 11B1150024 is a heavy-duty three-pole power contactor designed for controlling industrial motors and high-current electrical loads. As part of the Lovato B Series, this B115 contactor provides dependable electromagnetic switching for machinery, automation systems and electrical distribution equipment.
Its three normally open main poles provide an AC-3 operational current rating of 110 A at voltages up to 440 V. The contactor also supports three-phase motors rated up to 61 kW at 400 V AC, making it suitable for demanding motor starting and switching applications.
The 11B1150024 features an AC/DC coil rated at 24 V, allowing it to operate from either 24 V AC or 24 V DC control circuits. Screw mounting, robust power terminals and a mechanical life of 10,000,000 operating cycles support reliable integration into industrial control panels.
Key Advantages
- Heavy-duty three-pole contactor for industrial motor control.
- 110 A AC-3 operational current rating for demanding loads.
- Controls motors rated up to 61 kW at 400 V AC.
- 24 V AC/DC coil supports low-voltage control circuits.
- High mechanical endurance supports frequent industrial switching.
- Compliance with IEC, EN, UL and CSA contactor standards.
Key Features
- Lovato B115 power contactor.
- Three normally open main poles.
- 110 A AC-3 current rating at up to 440 V.
- 160 A conventional free-air thermal current.
- 61 kW AC-3 motor rating at 400 V.
- 24 V AC/DC control coil.
- Rated insulation voltage of 1000 V.
- Rated impulse withstand voltage of 8 kV.
- Screw mounting with heavy-duty power terminals.
- Mechanical endurance of 10,000,000 cycles.
Reliable Switching for High-Power Motors
Power contactors use an electromagnetic coil to open and close their main contacts, enabling high-current equipment to be controlled by a lower-power command circuit. The Lovato 11B1150024 provides three normally open poles for switching three-phase motors and other industrial AC loads.
Its 24 V AC/DC coil supports integration with low-voltage automation and control systems, while the high current and motor power ratings suit demanding machinery. Auxiliary contacts, overload protection and mechanical interlocking accessories can be selected separately to create a complete motor control assembly.
Typical Applications
- Three-phase industrial motor starters.
- Pumps, fans and compressor systems.
- Conveyors and material-handling equipment.
- Industrial heating and resistive loads.
- Production and processing machinery.
- Electrical control panels and automation systems.
