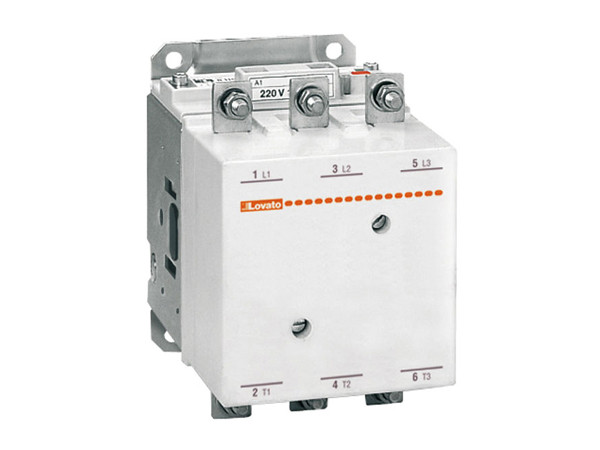

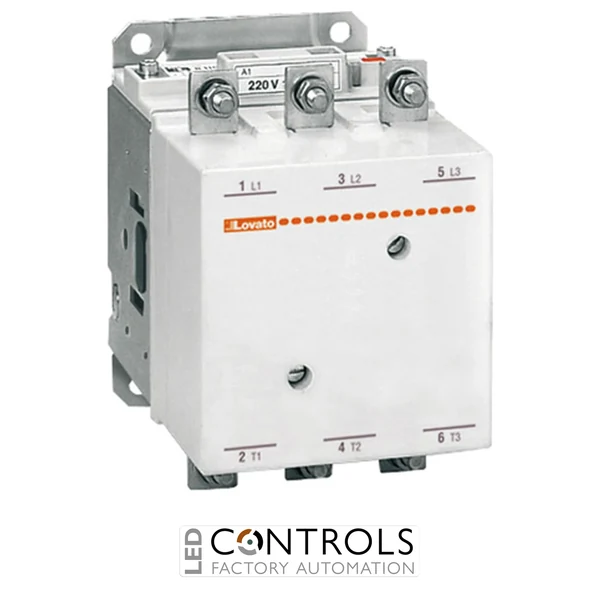

Lovato 11B145SL00380 heavy-duty three-pole industrial contactor with 150 A AC-3 rating, 380-415 V AC/DC control coil and compatibility with optional G495 mechanical latch module for industrial motor control and power switching applications.
£1,172.12
The Lovato 11B145SL00380 is a heavy-duty three-pole power contactor engineered for reliable switching of high-power three-phase motors and industrial electrical loads. As part of the trusted Lovato B145 contactor series, it delivers dependable performance for demanding automation, motor control and power distribution applications.
Equipped with a 380–415V AC/DC control coil and designed to accept an optional mechanical latch (G495), this contactor provides excellent flexibility for OEM machine builders, panel manufacturers and industrial maintenance engineers. Its rugged construction ensures a long operating life even in harsh industrial environments.
With an IEC AC-3 operational current of 150A and the capability to control motors up to 80kW at 400V AC, the 11B145SL00380 is ideal for compressors, conveyors, pumps, HVAC equipment and other heavy industrial machinery.
The Lovato 11B145SL00380 is designed for dependable switching of large three-phase motors and industrial electrical loads. Its high-quality contact system provides consistent performance while reducing maintenance requirements and improving equipment reliability in demanding production environments.
The universal 380–415V AC/DC coil simplifies integration into industrial control systems, while the contactor's compatibility with mechanical latching accessories provides additional flexibility for specialist applications.
| Power | 80 kW |
|---|---|
| Current | 150 A |
| Voltage | 415 V |
| Phase | Three Phase |
| Series | B145 |
| Product type | Three-pole industrial contactor |
| Number of poles | 3 |
| Main contacts | 3 NO |
| Rated thermal current (AC-1) | 250 A |
| Rated operational current (AC-3 at 400 V) | 150 A |
| Rated operational current (AC-4 at 400 V) | 57 A |
| Rated motor power at 400 V AC-3 | 80 kW |
| Maximum operational voltage | 690 V AC |
| Rated insulation voltage (Ui) | 1000 V |
| Impulse withstand voltage (Uimp) | 8 kV |
| Control coil voltage | 380-415 V AC/DC |
| Coil type | Universal AC/DC electronic coil |
| Mechanical latch compatibility | Predisposed for G495 mechanical latch |
| Mounting type | Screw mounting |
| Terminal protection | IP20 |
| Weight | Approx. 5.32 kg |
| Package dimensions | Approx. 173 × 124 × 194 mm |
| EAN | 8013975047965 |
| Operating temperature | -50 °C to +70 °C |
| Storage temperature | -60 °C to +80 °C |
| Maximum altitude | 3000 m |
| Pollution degree | 3 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Approvals | cULus, EAC, CCC, UKCA, LOVAG |
It is a three-pole industrial power contactor used for switching high-power three-phase motors and industrial electrical loads.
The contactor is fitted with a 380–415V AC/DC control coil.
The contactor has an IEC AC-3 operational current rating of 150A.
It is suitable for controlling motors up to 80kW at 400V AC-3.
Yes. The 11B145SL00380 is designed to accept the optional Lovato G495 mechanical latch accessory.
Lovato Electric B145 contactors are widely trusted by machine builders, panel manufacturers and industrial maintenance professionals for reliable switching performance and long service life in demanding industrial environments.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B145SL00380 Three-Pole Power Contactor 150A 380-415V AC/DC", "sku": "11B145SL00380", "mpn": "11B145SL00380", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Power Contactors", "description": "Lovato 11B145SL00380 three-pole power contactor with 150A AC-3 rating, 380-415V AC/DC coil and mechanical latch compatibility for industrial motor control.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated operational current", "value": "150 A AC-3" }, { "@type": "PropertyValue", "name": "Motor rating", "value": "80 kW at 400 V" }, { "@type": "PropertyValue", "name": "Control voltage", "value": "380-415 V AC/DC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "1000 V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B145SL00380 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is a three-pole industrial power contactor used for switching high-power three-phase motors and industrial electrical loads." } }, { "@type": "Question", "name": "What control voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor is fitted with a 380-415V AC/DC control coil." } }, { "@type": "Question", "name": "What is the AC-3 current rating?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an IEC AC-3 operational current rating of 150A." } }, { "@type": "Question", "name": "What motor size can it control?", "acceptedAnswer": { "@type": "Answer", "text": "It is suitable for controlling motors up to 80kW at 400V AC-3." } }, { "@type": "Question", "name": "Can a mechanical latch be fitted?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The 11B145SL00380 is designed to accept the optional Lovato G495 mechanical latch accessory." } } ] }
