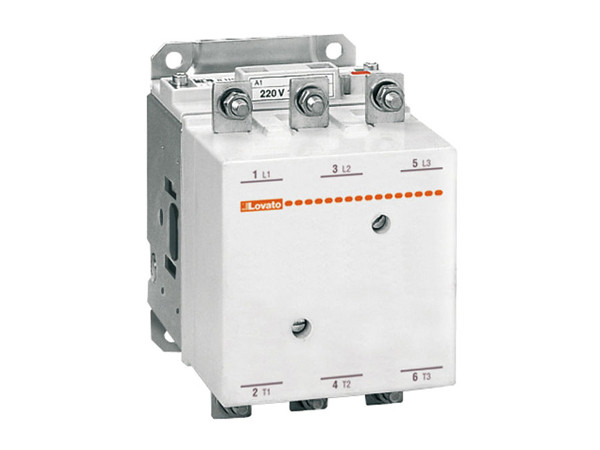

Lovato 11B1800060 three-pole industrial contactor with 185 A AC-3 operational current rating and 60 V AC/DC control coil for industrial motor control and power switching applications.
£1,271.55
The Lovato 11B1800060 is a heavy-duty three-pole power contactor engineered for reliable switching of high-power three-phase motors and demanding industrial electrical loads. As part of the trusted Lovato B180 contactor series, it delivers dependable performance for industrial automation, motor control centres and OEM machinery.
Equipped with a 60V AC/DC universal control coil, this contactor provides excellent flexibility for industrial control systems using either AC or DC control voltages. Its rugged construction, high insulation ratings and long mechanical life make it ideal for continuous operation in demanding industrial environments.
With an IEC AC-3 operational current of 185A, an AC-1 thermal current rating of 275A and the capability to control motors up to 100kW at 400V AC, the 11B1800060 is ideally suited for compressors, pumps, conveyors, HVAC systems and heavy industrial machinery.
The Lovato 11B1800060 is designed to provide dependable switching of large three-phase motors and heavy industrial electrical loads. Its heavy-duty contact system helps maximise equipment uptime while reducing maintenance requirements in demanding production environments.
The universal 60V AC/DC control coil provides installation flexibility across industrial control systems, making this contactor an excellent choice for modern automation panels, OEM machinery and motor control centres.
| Power | 100 kW |
|---|---|
| Current | 185 A |
| Voltage | 60 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | B180 |
| Product type | Three-pole industrial contactor |
| Rated operational current (AC-3) | 185 A |
| Rated operational current (AC-4 at 400 V) | 65 A |
| Rated operational current (AC-1 at 400 V) | 275 A |
| Rated operational power at 400 V AC-3 | 100 kW |
| Control coil voltage | 60 V AC/DC |
| Control frequency | 50/60 Hz |
| Maximum operational voltage | 690 V AC |
| Number of poles | 3 |
| Main contacts | 3 NO |
| Type of coil | AC/DC coil |
| Mounting type | Screw mounting |
| Connection type | Bolt connection |
| Protection rating | IP20 terminals |
| Operating temperature | -50 °C to +70 °C |
| Width | approx. 120 mm |
| Height | approx. 170 mm |
| Weight | approx. 5.45 kg |
| Package dimensions | approx. 173 × 124 × 194 mm |
| EAN | 8013975026137 |
| HS Code | 85365080 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
It is a heavy-duty three-pole power contactor designed for switching high-power three-phase motors and industrial electrical loads.
The contactor features a 60V AC/DC universal control coil.
The contactor has an IEC AC-3 operational current rating of 185A.
It is suitable for controlling motors up to 100kW at 400V AC-3.
It is commonly installed in industrial motor control centres, automation panels, switchgear and heavy-duty electrical installations.
Lovato Electric B180 contactors are trusted by machine builders, OEM manufacturers and industrial maintenance professionals for dependable switching performance, long service life and reliable operation in demanding industrial applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B1800060 Three-Pole Power Contactor 185A 60V AC/DC", "sku": "11B1800060", "mpn": "11B1800060", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Power Contactors", "description": "Lovato 11B1800060 three-pole power contactor with 185A AC-3 rating, 60V AC/DC coil and 100kW motor capacity for industrial motor control.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated operational current", "value": "185 A AC-3" }, { "@type": "PropertyValue", "name": "Motor rating", "value": "100 kW" }, { "@type": "PropertyValue", "name": "Control voltage", "value": "60 V AC/DC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "1000 V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B1800060 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is a heavy-duty three-pole power contactor designed for switching high-power three-phase motors and industrial electrical loads." } }, { "@type": "Question", "name": "What control voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor features a 60V AC/DC universal control coil." } }, { "@type": "Question", "name": "What is the AC-3 current rating?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an IEC AC-3 operational current rating of 185A." } }, { "@type": "Question", "name": "What motor size can it control?", "acceptedAnswer": { "@type": "Answer", "text": "It is suitable for controlling motors up to 100kW at 400V AC-3." } }, { "@type": "Question", "name": "Where is this contactor typically installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in industrial motor control centres, automation panels, switchgear and heavy-duty electrical installations." } } ] }
