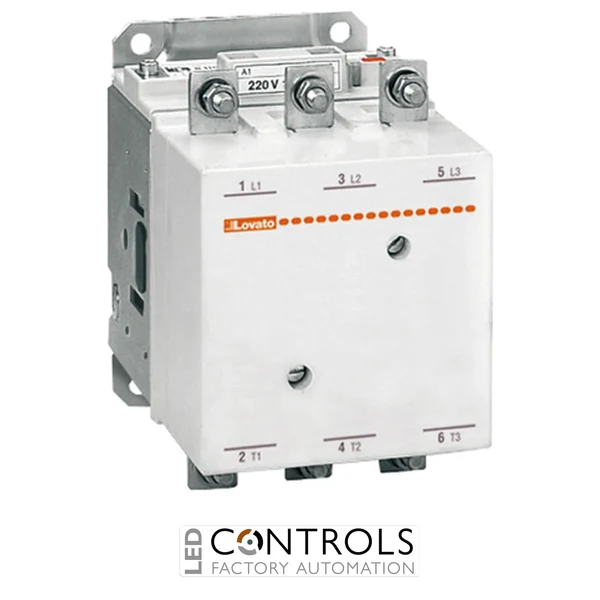

Lovato 11B250L00110110 three-pole industrial contactor with integrated G495 mechanical latch, 265A AC3 operational current rating and 110…125V AC/DC universal control coil for industrial automation and motor control systems.
£2,205.13
The Lovato 11B250L00110110 is a heavy-duty three-pole industrial power contactor engineered for reliable switching of high-current electrical loads in demanding industrial applications. Part of the proven Lovato B250 contactor series, this model is factory-fitted with a G495 mechanical latch, enabling the contactor to remain energised without continuous coil power.
The contactor features a universal 110–125 V AC/DC operating coil together with a 110–125 V AC mechanical latch, making it ideal for applications requiring maintained switching, reduced control power consumption and dependable load isolation. Its robust construction provides excellent electrical endurance, high insulation performance and long mechanical life.
With an IEC conventional thermal current rating of 350 A (AC-1), an AC-3 operational current of 265 A and three normally open main poles, the 11B250L00110110 is ideally suited to industrial motor control, power distribution and heavy-duty automation systems.
Mechanically latched contactors remain in their selected position after the control signal has been removed, reducing continuous control power consumption while ensuring the contactor remains energised until an intentional release command is applied.
The Lovato 11B250L00110110 combines high-current switching capability with a factory-installed mechanical latching mechanism, making it suitable for industrial control systems, motor starters and power distribution equipment requiring maintained contact operation.
| Power | 140 kW |
|---|---|
| Current | 350 A |
| Voltage | 125 V |
| Phase | Three Phase |
| Series | B250 Contactors |
| Product type | Three-pole contactor with mechanical latch |
| Operational current (AC1) | 350 A |
| Operational current (AC3 at 400 V) | 265 A |
| Operational current (AC4 at 400 V) | 92 A |
| Rated operational power AC3 at 400 V | 140 kW |
| Control coil voltage | 110...125 V AC/DC |
| Mechanical latch voltage | 110...125 V AC |
| Number of poles | 3 |
| Contact configuration | 3 NO |
| Type of coil | AC/DC universal coil |
| Insulation voltage | 690 V |
| Mounting type | Screw mounting |
| Terminal type | Bolt connection |
| Package dimensions | approx. 260 × 148 × 227 mm |
| Weight | approx. 10.28 kg |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 |
It is designed for switching high-current three-phase electrical loads in industrial motor control, automation and power distribution applications.
The contactor has a conventional thermal current rating of 350 A (AC-1) and an AC-3 operational current of 265 A.
The electronically controlled operating coil is rated for 110–125 V AC/DC.
Yes. It is supplied with a factory-fitted G495 mechanical latch operating at 110–125 V AC.
The Lovato 11B250L00110110 features three normally open (3NO) main power poles for switching three-phase circuits.
Lovato B250 mechanically latched contactors are trusted by electrical engineers, OEM machine builders and panel manufacturers for dependable high-current switching, long operating life and reliable maintained-contact performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B250L00110110 Three-Pole Mechanically Latched Power Contactor 350 A", "sku": "11B250L00110110", "mpn": "11B250L00110110", "gtin13": "8013975045299", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Mechanically Latched Power Contactors", "description": "Lovato 11B250L00110110 three-pole power contactor with 350 A AC-1 rating, 110–125 V AC/DC operating coil and factory-fitted G495 mechanical latch for industrial motor control and power switching.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Thermal current", "value": "350 A AC-1" }, { "@type": "PropertyValue", "name": "Operating coil voltage", "value": "110–125 V AC/DC" }, { "@type": "PropertyValue", "name": "Mechanical latch", "value": "G495 factory fitted" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Rated operational current AC-3", "value": "265 A" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B250L00110110 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is designed for switching high-current three-phase electrical loads in industrial motor control, automation and power distribution applications." } }, { "@type": "Question", "name": "What current rating does this contactor support?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has a conventional thermal current rating of 350 A (AC-1) and an AC-3 operational current of 265 A." } }, { "@type": "Question", "name": "What control voltage does the operating coil require?", "acceptedAnswer": { "@type": "Answer", "text": "The electronically controlled operating coil is rated for 110–125 V AC/DC." } }, { "@type": "Question", "name": "Does this contactor include a mechanical latch?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. It is supplied with a factory-fitted G495 mechanical latch operating at 110–125 V AC." } }, { "@type": "Question", "name": "How many main poles does the contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11B250L00110110 features three normally open (3NO) main power poles for switching three-phase circuits." } } ] }
