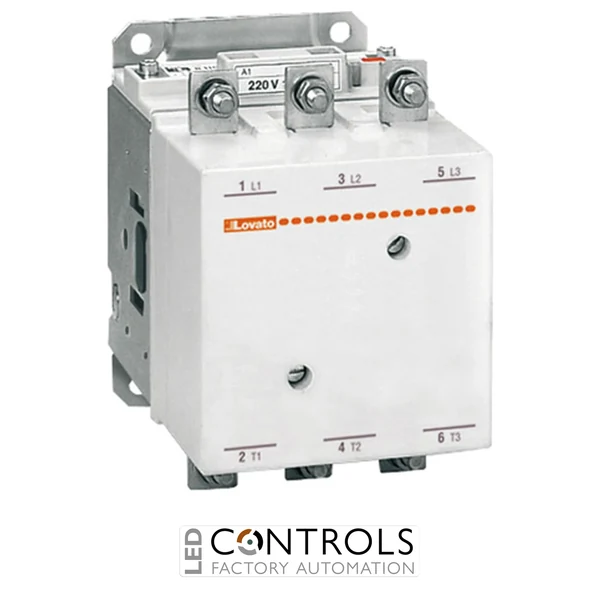

Lovato 11B250SL00220 three-pole industrial contactor with 265A AC3 operational current rating, 220…240V AC/DC universal control coil and compatibility with optional G495 mechanical latch systems.
£1,870.61
The Lovato 11B250SL00220 is a heavy-duty three-pole industrial power contactor designed for dependable switching of high-current electrical loads in motor control, automation and power distribution systems. Part of the established Lovato B250 contactor series, it is engineered for control-panel manufacturers, OEM machine builders and industrial electrical professionals.
This contactor features an electronically controlled 220–240 V AC/DC operating coil, allowing it to work with either alternating-current or direct-current control supplies. It is also specifically prepared for installation of the optional Lovato G495 mechanical latch, providing additional flexibility for applications requiring maintained contact operation.
With an IEC operational current rating of 265 A in AC-3 duty and three main power poles, the 11B250SL00220 is suitable for controlling large three-phase motors and demanding industrial loads used in manufacturing equipment, pumping systems, ventilation machinery and process automation.
Industrial contactors such as the Lovato 11B250SL00220 enable large electrical loads to be controlled using a lower-power switching signal. This allows motors, pumps, compressors, fans and production machinery to be operated remotely through PLCs, control relays and automated electrical panels.
The electronically controlled AC/DC coil provides flexible integration with different industrial control supplies. Compatibility with the optional G495 mechanical latch also allows the contactor to be adapted for maintained switching applications where the main contacts must remain mechanically held after the initial operating signal is removed.
| Power | 140 kW |
|---|---|
| Current | 265 A |
| Voltage | 240 V |
| Phase | Three Phase |
| Series | B250 Contactors |
| Product type | Three-pole contactor predisposed for mechanical latch |
| Operational current (AC3) | 265 A |
| Operational current (AC1) | 350 A |
| Operational current (AC4 at 400 V) | 92 A |
| Rated operational power AC3 at 400 V | 140 kW |
| Control coil voltage | 220...240 V AC/DC |
| Mechanical latch compatibility | G495 optional latch system |
| Number of poles | 3 |
| Contact configuration | 3 NO |
| Type of coil | AC/DC coil |
| Type of mounting | Screw mounting |
| Terminal type | Bolt connection |
| Package dimensions | approx. 208 × 148 × 232 mm |
| Weight | approx. 9.5 kg |
| EAN | 8013975017975 |
| HS code | 85365080 |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 |
It is used for switching high-current three-phase loads in industrial motor control, automation, production machinery and power distribution systems.
The Lovato 11B250SL00220 has an IEC rated operational current of 265 A in AC-3 duty.
The electronically controlled operating coil is rated for 220–240 V AC or DC.
No. The contactor is prepared for installation of the optional Lovato G495 mechanical latch, but the latch is not supplied with this model.
The product is listed by Lovato Electric as out of catalogue, so availability may be limited to remaining distributor stock, refurbished units or compatible replacement products.
Lovato B250 contactors have been widely used by electrical engineers, panel builders and OEM machine manufacturers for dependable switching of high-current industrial motors and power circuits.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B250SL00220 Three-Pole Contactor 265 A 220–240 V AC/DC", "sku": "11B250SL00220", "mpn": "11B250SL00220", "gtin13": "8013975017975", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Power Contactors", "description": "Lovato 11B250SL00220 three-pole industrial power contactor with a 265 A AC-3 operational current, 220–240 V AC/DC electronically controlled coil and provision for a G495 mechanical latch.", "additionalProperty": [ { "@type": "PropertyValue", "name": "AC-3 operational current", "value": "265 A" }, { "@type": "PropertyValue", "name": "Control coil voltage", "value": "220–240 V AC/DC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Mounting type", "value": "Screw mounting" }, { "@type": "PropertyValue", "name": "Mechanical latch compatibility", "value": "Predisposed for Lovato G495" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B250SL00220 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is used for switching high-current three-phase loads in industrial motor control, automation, production machinery and power distribution systems." } }, { "@type": "Question", "name": "What is the AC-3 current rating of this contactor?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11B250SL00220 has an IEC rated operational current of 265 A in AC-3 duty." } }, { "@type": "Question", "name": "What control voltage does the coil require?", "acceptedAnswer": { "@type": "Answer", "text": "The electronically controlled operating coil is rated for 220–240 V AC or DC." } }, { "@type": "Question", "name": "Does the Lovato 11B250SL00220 include a mechanical latch?", "acceptedAnswer": { "@type": "Answer", "text": "No. The contactor is prepared for installation of the optional Lovato G495 mechanical latch, but the latch is not supplied with this model." } }, { "@type": "Question", "name": "Is the Lovato 11B250SL00220 still in production?", "acceptedAnswer": { "@type": "Answer", "text": "The product is listed by Lovato Electric as out of catalogue, so availability may be limited to remaining distributor stock, refurbished units or compatible replacement products." } } ] }
