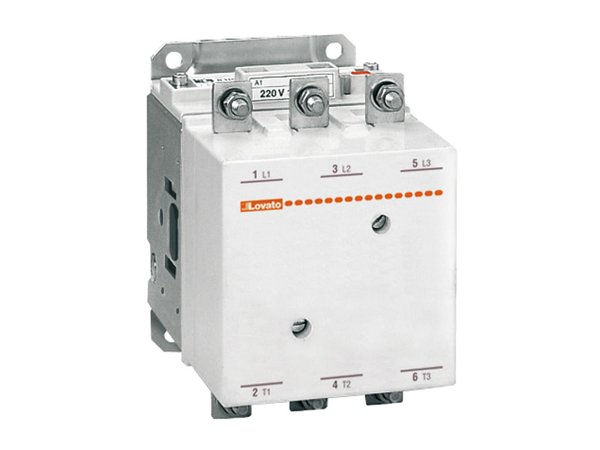

Lovato 11B250SL00220 three-pole industrial contactor with 265A AC3 operational current rating, 220…240V AC/DC universal control coil and compatibility with optional G495 mechanical latch systems.
£1,870.61
The Lovato 11B250SL0024 is a heavy-duty three-pole industrial power contactor designed for dependable switching of high-current electrical loads in motor control, automation and power distribution systems. Part of the established Lovato B250 contactor series, it is engineered for panel builders, OEM machine manufacturers and industrial electrical professionals.
This contactor features an electronically controlled 24 V AC/DC operating coil, allowing it to integrate with either alternating-current or direct-current control circuits. It is also specifically prepared for installation of the optional Lovato G495 mechanical latch, providing flexibility for applications requiring mechanically maintained contact operation.
With an IEC operational current rating of 265 A in AC-3 duty, a conventional thermal current rating of 350 A and a 140 kW motor rating at 400 V, the 11B250SL0024 is suitable for controlling large three-phase motors and demanding industrial electrical loads.
Industrial contactors such as the Lovato 11B250SL0024 allow large three-phase loads to be controlled using a lower-power switching signal. This enables motors, pumps, compressors, conveyors and production machinery to be operated remotely through PLCs, control relays and automated electrical panels.
The electronically controlled AC/DC coil provides flexible integration with different control-power systems. Compatibility with the optional G495 mechanical latch also allows the contactor to be adapted for maintained switching applications where the selected contact position must remain mechanically held.
| Power | 140 kW |
|---|---|
| Current | 265 A |
| Voltage | 240 V |
| Phase | Three Phase |
| Series | B250 Contactors |
| Product type | Three-pole contactor predisposed for mechanical latch |
| Operational current (AC3) | 265 A |
| Operational current (AC1) | 350 A |
| Operational current (AC4 at 400 V) | 92 A |
| Rated operational power AC3 at 400 V | 140 kW |
| Control coil voltage | 220...240 V AC/DC |
| Mechanical latch compatibility | G495 optional latch system |
| Number of poles | 3 |
| Contact configuration | 3 NO |
| Type of coil | AC/DC coil |
| Type of mounting | Screw mounting |
| Terminal type | Bolt connection |
| Package dimensions | approx. 208 × 148 × 232 mm |
| Weight | approx. 9.5 kg |
| EAN | 8013975017975 |
| HS code | 85365080 |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 |
It is used for switching high-current three-phase loads in industrial motor control, automation, production machinery and power distribution systems.
The Lovato 11B250SL0024 has an IEC rated operational current of 265 A in AC-3 duty.
The electronically controlled operating coil is rated for 24 V AC or 24 V DC.
No. The contactor is prepared for installation of the optional Lovato G495 mechanical latch, but the latch is not supplied with this model.
The product is listed by Lovato Electric as out of catalogue, so availability may be limited to remaining distributor stock, refurbished units or compatible replacement products.
Lovato B250 contactors have been widely used by electrical engineers, panel builders and OEM machine manufacturers for dependable switching of high-current industrial motors and power circuits.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B250SL0024 Three-Pole Contactor 265 A 24 V AC/DC", "sku": "11B250SL0024", "mpn": "11B250SL0024", "gtin13": "8013975074992", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Power Contactors", "description": "Lovato 11B250SL0024 three-pole industrial power contactor with a 265 A AC-3 operational current, 350 A thermal current, 24 V AC/DC electronically controlled coil and provision for a G495 mechanical latch.", "additionalProperty": [ { "@type": "PropertyValue", "name": "AC-3 operational current", "value": "265 A" }, { "@type": "PropertyValue", "name": "Thermal current", "value": "350 A" }, { "@type": "PropertyValue", "name": "Control coil voltage", "value": "24 V AC/DC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Mechanical latch compatibility", "value": "Predisposed for Lovato G495" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B250SL0024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is used for switching high-current three-phase loads in industrial motor control, automation, production machinery and power distribution systems." } }, { "@type": "Question", "name": "What is the AC-3 current rating of this contactor?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11B250SL0024 has an IEC rated operational current of 265 A in AC-3 duty." } }, { "@type": "Question", "name": "What control voltage does the coil require?", "acceptedAnswer": { "@type": "Answer", "text": "The electronically controlled operating coil is rated for 24 V AC or 24 V DC." } }, { "@type": "Question", "name": "Does the Lovato 11B250SL0024 include a mechanical latch?", "acceptedAnswer": { "@type": "Answer", "text": "No. The contactor is prepared for installation of the optional Lovato G495 mechanical latch, but the latch is not supplied with this model." } }, { "@type": "Question", "name": "Is the Lovato 11B250SL0024 still in production?", "acceptedAnswer": { "@type": "Answer", "text": "The product is listed by Lovato Electric as out of catalogue, so availability may be limited to remaining distributor stock, refurbished units or compatible replacement products." } } ] }
