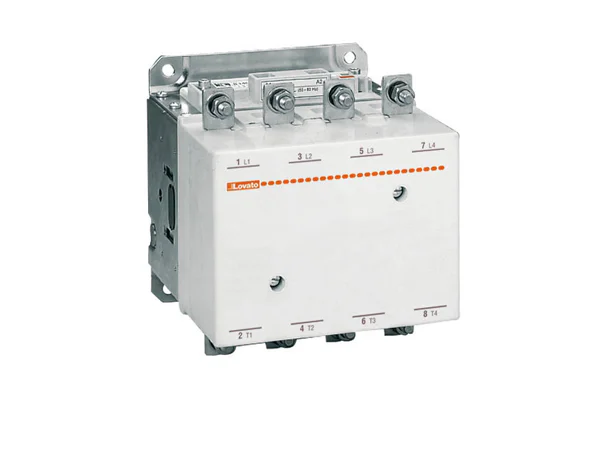

Lovato 11B31040060 four-pole industrial contactor with 450A AC1 thermal current rating, 320A AC3 operational current and 60V AC/DC universal control coil for industrial automation and motor control systems.
£3,043.12
The LOVATO Electric 11B31040060 is a heavy-duty four-pole industrial power contactor engineered for reliable switching of high-current electrical loads. As part of the robust LOVATO B310 contactor series, it offers a conventional free-air thermal current rating of 450 A (AC-1) and an operational current of 320 A (AC-3), making it ideal for industrial motor control, power distribution and demanding automation systems.
Equipped with a versatile 60 V AC/DC control coil, this contactor can be integrated into both alternating-current and direct-current control circuits. Its four-pole configuration enables simultaneous switching of four conductors, making it particularly suitable for applications requiring neutral switching or complete isolation of three-phase circuits.
Designed for dependable long-term operation, the 11B31040060 combines a robust screw-mounted construction, high insulation performance and compliance with international IEC, UL and CSA standards, ensuring reliable operation in industrial control panels, switchboards and OEM machinery.
Four-pole contactors provide safe switching of high-current electrical circuits using a low-power control signal. They enable PLCs, relays, pushbuttons and automation controllers to operate industrial loads while maintaining electrical isolation between the control and power circuits.
The LOVATO B310 series is designed for demanding industrial environments where high current capacity, dependable switching and long service life are essential. Its four-pole configuration makes it ideal for power distribution, neutral switching and heavy-duty motor control applications.
| Power | 170 kW |
|---|---|
| Current | 320 A |
| Voltage | 60 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | B310 Contactors |
| Product type | Four-pole industrial contactor |
| Number of poles | 4 |
| Contact configuration | 4 NO |
| IEC thermal current Ith (AC1) | 450 A |
| Operational current AC3 at 400 V | 320 A |
| Rated operational power AC3 at 400 V | 170 kW |
| Rated operational power at 690 V | 488 kW |
| Operational current AC4 at 400 V | 110 A |
| UL/CSA horsepower rating at 480 V | 250 HP |
| Control coil voltage | 60 V AC/DC |
| Type of coil | AC/DC universal coil |
| Rated insulation voltage | 1000 V |
| Impulse withstand voltage | 8 kV |
| Operational frequency | 25 to 400 Hz |
| Mounting type | Screw mounting |
| Terminal type | Bolt connection |
| Protection rating | IP20 |
| Operating temperature | -50 °C to +70 °C |
| Weight | approx. 11.1 kg |
| Dimensions | approx. 208 × 196 × 227 mm |
| EAN | 8013975075265 |
| HS code | 85365080 |
| Compliance | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1 |
It is used for switching high-current four-pole electrical circuits in industrial motor control, power distribution and automation systems.
It offers a conventional thermal current rating of 450 A (AC-1) and an operational current of 320 A (AC-3).
This model is equipped with a 60 V AC/DC control coil.
The 11B31040060 has four normally open main poles, allowing simultaneous switching of four conductors.
It is commonly installed in industrial control panels, switchboards, motor control centres and heavy-duty automation systems.
LOVATO Electric B310 contactors are trusted worldwide by panel builders, OEM manufacturers and industrial engineers for dependable switching performance, high current capability and long operating life in demanding industrial environments.{ "@context": "https://schema.org/", "@type": "Product", "name": "LOVATO Electric 11B31040060 Four-Pole Contactor 450 A 60 V AC/DC", "sku": "11B31040060", "mpn": "11B31040060", "gtin13": "8013975075265", "brand": { "@type": "Brand", "name": "LOVATO Electric" }, "category": "Industrial Contactors", "description": "LOVATO Electric B310 four-pole industrial contactor with 450 A AC-1 rating, 320 A AC-3 rating and 60 V AC/DC control coil.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Main contacts", "value": "4 NO" }, { "@type": "PropertyValue", "name": "Thermal current", "value": "450 A AC-1" }, { "@type": "PropertyValue", "name": "Operational current", "value": "320 A AC-3" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "60 V AC/DC" }, { "@type": "PropertyValue", "name": "Motor rating", "value": "170 kW at 400 V" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "1000 V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the LOVATO Electric 11B31040060 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It is used for switching high-current four-pole electrical circuits in industrial motor control, power distribution and automation systems." } }, { "@type": "Question", "name": "What current rating does this contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "It offers a conventional thermal current rating of 450 A (AC-1) and an operational current of 320 A (AC-3)." } }, { "@type": "Question", "name": "What control voltage does the contactor use?", "acceptedAnswer": { "@type": "Answer", "text": "This model is equipped with a 60 V AC/DC control coil." } }, { "@type": "Question", "name": "How many poles does this contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "The 11B31040060 has four normally open main poles, allowing simultaneous switching of four conductors." } }, { "@type": "Question", "name": "Where is this contactor typically installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in industrial control panels, switchboards, motor control centres and heavy-duty automation systems." } } ] }
