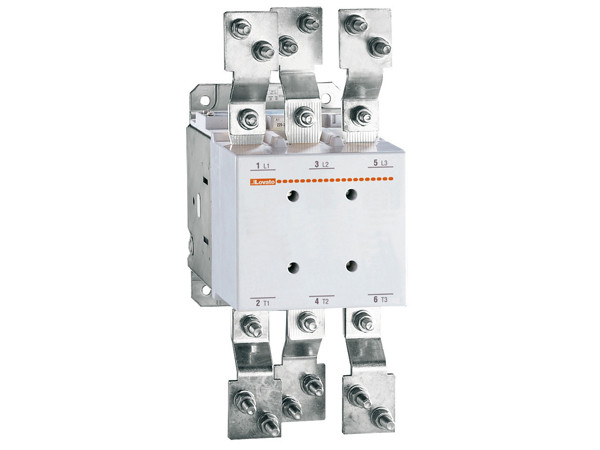

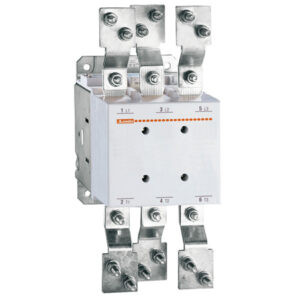

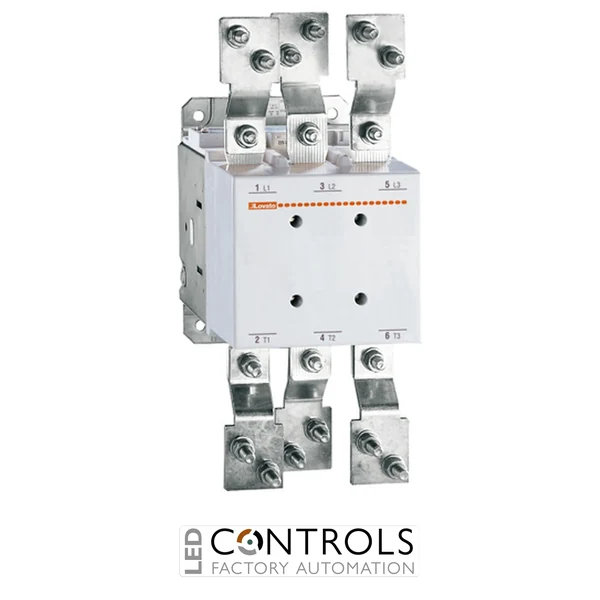

Lovato 11B630100000440 ultra heavy-duty three-pole industrial contactor with 1000 A AC1 operational current rating, 440–480 V AC/DC operating coil and high-performance switching capability for industrial motor control and power switching applications.
£6,649.20
The Lovato 11B630100000440 is a heavy-duty three-pole power contactor designed for switching high-current electrical loads in industrial motor control, power distribution and automation systems. Part of the robust Lovato B Series contactor range, this model combines a high current capacity with dependable electromagnetic switching for demanding industrial applications.
With an IEC conventional free-air thermal current rating of 1000 A in AC-1 duty, the contactor is suitable for controlling resistive loads, heating equipment and other high-power circuits. Its three normally open main poles provide reliable isolation and switching, while the electronically controlled coil can operate from either AC or DC control supplies.
The 11B630100000440 features a 440–480 V AC/DC coil, making it suitable for industrial control systems using high control voltages. Screw fixing and heavy-duty power terminals enable secure installation inside switchboards, motor control centres and industrial electrical panels.
Power contactors such as the Lovato 11B630100000440 provide remote electrical switching for motors, heating circuits and other high-current industrial loads. Applying the specified control voltage to the coil closes the three main contacts, allowing power to flow to the connected equipment.
The contactor’s high current rating, strong making capacity and long operating life make it suitable for applications where frequent and dependable switching is essential. Its AC/DC coil offers additional control-system flexibility, while EMC compatibility supports integration into modern industrial installations.
| Power | 1000 kW |
|---|---|
| Current | 1000 A |
| Voltage | 480 V |
| Phase | Three Phase |
| Series | B6301000 Contactors |
| Product type | Three-pole power contactor |
| Number of poles | 3 |
| Main contact configuration | 3 NO |
| IEC conventional free air thermal current Ith | 1000 A |
| IEC operational current Ie AC-1 at 40 °C | 1000 A |
| IEC operational current Ie AC-1 at 55 °C | 850 A |
| IEC operational current Ie AC-1 at 70 °C | 700 A |
| AC-4 operational current at 400 V | 260 A |
| Rated operational power AC-1 at 690 V | 1000 kW |
| Type of coil | AC/DC coil |
| Rated coil voltage | 440–480 V AC/DC |
| Rated insulation voltage Ui | 1000 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Operational frequency | 25–400 Hz |
| Short-time allowable current for 10 s | 5600 A |
| Making capacity | 6300 A RMS |
| Breaking capacity at 440 V | 6300 A |
| Protection fuse | gG 1000 A |
| Mounting type | Screw mounting |
| Connection type | Bolt/screw terminals |
| Width | Approx. 194 mm |
| Height | Approx. 476–480 mm |
| Depth | Approx. 263–265 mm |
| Operating temperature | -50 °C to +70 °C |
| Mechanical operating cycles | 5,000,000 |
| Electrical operating cycles | 700,000 |
| Weight | Approx. 21.42 kg |
| Package dimensions | Approx. 480 × 200 × 265 mm |
| EAN | 8013975075333 |
| HS Code | 85365080 |
| Compliance standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Certifications | cULus, CCC, EAC |
This contactor is used to switch high-current three-phase loads in industrial motor control, heating, power distribution and automation systems.
The contactor has an IEC conventional free-air thermal current rating of 1000 A in AC-1 duty at temperatures up to 40°C.
The 11B630100000440 uses a 440–480 V AC/DC coil, allowing it to operate with either an AC or DC control supply within the specified range.
This model has three normally open main power poles for switching three-phase electrical loads.
It is normally screw-mounted inside an industrial switchboard, motor control centre or electrical control panel with suitable protection against accidental contact.
Lovato B Series power contactors are engineered for dependable switching of motors and high-current electrical loads, providing robust performance in demanding industrial control and automation installations.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B630100000440 Three-Pole Power Contactor 1000 A", "sku": "11B630100000440", "mpn": "11B630100000440", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Power Contactors", "description": "Lovato 11B630100000440 B6301000 three-pole power contactor with a 1000 A AC-1 thermal current rating and 440–480 V AC/DC control coil for industrial switching applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "IEC thermal current", "value": "1000 A AC-1 at 40°C" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "440–480 V AC/DC" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "1000 V" }, { "@type": "PropertyValue", "name": "Mounting type", "value": "Screw fixing" }, { "@type": "PropertyValue", "name": "Power terminal protection", "value": "IP00" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B630100000440 used for?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor is used to switch high-current three-phase loads in industrial motor control, heating, power distribution and automation systems." } }, { "@type": "Question", "name": "What current can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an IEC conventional free-air thermal current rating of 1000 A in AC-1 duty at temperatures up to 40°C." } }, { "@type": "Question", "name": "What control voltage does the coil require?", "acceptedAnswer": { "@type": "Answer", "text": "The 11B630100000440 uses a 440–480 V AC/DC coil, allowing it to operate with either an AC or DC control supply within the specified range." } }, { "@type": "Question", "name": "How many power poles does this contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "This model has three normally open main power poles for switching three-phase electrical loads." } }, { "@type": "Question", "name": "Where is the contactor typically installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is normally screw-mounted inside an industrial switchboard, motor control centre or electrical control panel with suitable protection against accidental contact." } } ] }
