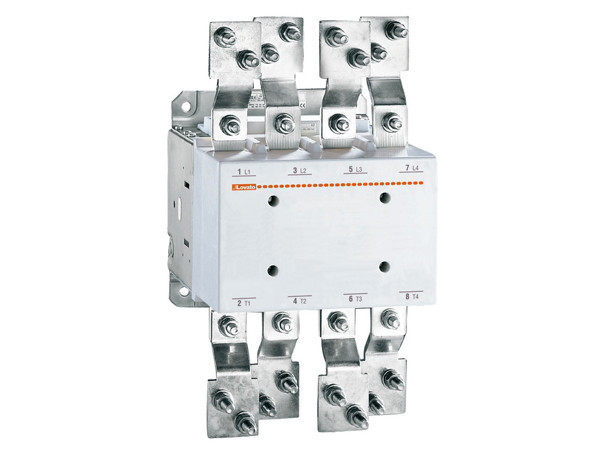

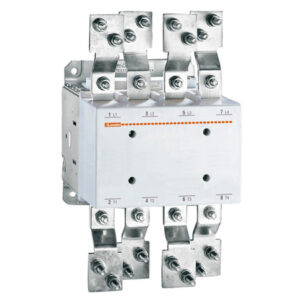

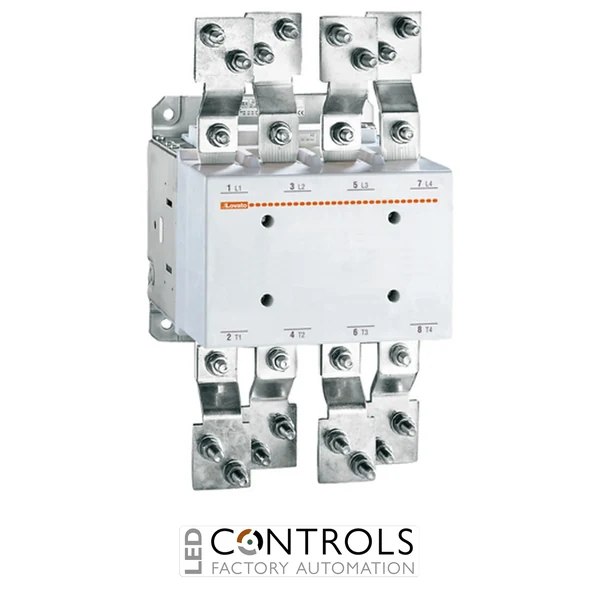

Lovato 11B6301000400440 ultra heavy-duty four-pole industrial contactor with 1000 A AC1 operational current rating, 440–480 V AC/DC operating coil and high-performance switching capability for industrial motor control and power switching applications.
£7,938.53
The Lovato 11B6301000400440 is a heavy-duty four-pole power contactor designed for dependable switching of high-current electrical loads in industrial motor control, automation and power distribution systems. As part of the robust Lovato B6301000 contactor series, it is engineered for demanding installations that require substantial current capacity, secure electrical connections and reliable long-term performance.
This contactor provides an IEC conventional free-air thermal current rating of 1000 A in AC-1 duty, making it suitable for high-power resistive loads, electrical heating equipment and industrial distribution circuits. Its four normally open main poles allow four conductors to be switched simultaneously, supporting three-phase systems with a switched neutral and other four-pole applications.
With an electronically controlled 440–480 V AC/DC coil, the 11B6301000400440 offers flexible operation from either AC or DC industrial control supplies. Its screw-mounted construction, bolt-connected power terminals and high insulation capability make it suitable for installation in motor control centres, switchboards and heavy industrial machinery.
Power contactors such as the Lovato 11B6301000400440 allow high-current electrical equipment to be switched remotely using a lower-power control circuit. Applying the specified control voltage to the coil closes all four main contacts, allowing electrical power to flow to the connected load or distribution circuit.
The four-pole configuration is particularly useful where three phase conductors and a neutral conductor must be switched simultaneously. Its high current rating, AC/DC coil and robust construction support reliable integration into industrial switchboards, motor control centres and automated production equipment.
| Power | 355 kW |
|---|---|
| Current | 1000 A |
| Voltage | 480 V |
| Phase | Three Phase |
| Series | B6301000 Contactors |
| Product type | Four-pole power contactor |
| Number of poles | 4 |
| Main contact configuration | 4 NO |
| IEC conventional free air thermal current Ith | 1000 A |
| IEC operational current Ie AC-1 at 40 °C | 1000 A |
| IEC operational current Ie AC-1 at 55 °C | 850 A |
| IEC operational current Ie AC-1 at 70 °C | 700 A |
| IEC operational current and power Ie (AC3) 400 V | 630 A / 355 kW |
| AC-4 operational current at 400 V | 260 A |
| Rated operational power AC-1 at 690 V | 1000 kW |
| Type of coil | AC/DC coil |
| Rated coil voltage | 440–480 V AC/DC |
| Rated insulation voltage Ui | 1000 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Operational frequency | 25–400 Hz |
| Short-time allowable current for 10 s | 5600 A |
| Making capacity | 6300 A RMS |
| Breaking capacity at 440 V | 6300 A |
| Protection fuse | gG 1000 A |
| Mounting type | Screw mounting |
| Connection type | Bolt/screw terminals |
| Width | Approx. 259 mm |
| Height | Approx. 476 mm |
| Depth | Approx. 263 mm |
| Operating temperature | -50 °C to +70 °C |
| Mechanical operating cycles | 5,000,000 |
| Electrical operating cycles | 700,000 |
| Weight | Approx. 26 kg |
| Package dimensions | Approx. 480 × 250 × 260 mm |
| EAN | 8013975093733 |
| HS Code | 85365080 |
| Compliance standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Certifications | cULus, CCC, EAC, UKCA |
This contactor is used to switch high-current four-pole electrical circuits in industrial motor control, power distribution, heating and automation applications.
The contactor has an IEC conventional free-air thermal current rating of 1000 A in AC-1 duty at ambient temperatures up to 40°C.
The Lovato 11B6301000400440 uses an electronically controlled 440–480 V AC/DC coil.
This model has four normally open main power poles, allowing four electrical conductors to be switched simultaneously.
The contactor has an AC-3 operational rating of 630 A or 355 kW at 400 V.
Lovato B Series power contactors are engineered to provide dependable high-current switching, robust industrial performance and reliable integration into demanding automation and power distribution systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11B6301000400440 Four-Pole Power Contactor 1000 A 440–480 V AC/DC", "sku": "11B6301000400440", "mpn": "11B6301000400440", "gtin13": "8013975093733", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Power Contactors", "description": "Lovato 11B6301000400440 B6301000 four-pole power contactor with a 1000 A AC-1 thermal current rating, 630 A AC-3 rating at 400 V and a 440–480 V AC/DC control coil.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Main contact configuration", "value": "4 normally open" }, { "@type": "PropertyValue", "name": "IEC thermal current", "value": "1000 A AC-1 at 40°C" }, { "@type": "PropertyValue", "name": "AC-3 rating at 400 V", "value": "630 A / 355 kW" }, { "@type": "PropertyValue", "name": "Coil type", "value": "AC/DC electronically controlled" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "440–480 V AC/DC" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "1000 V" }, { "@type": "PropertyValue", "name": "Rated impulse withstand voltage", "value": "8 kV" }, { "@type": "PropertyValue", "name": "Mounting type", "value": "Screw fixing" }, { "@type": "PropertyValue", "name": "Weight", "value": "26 kg" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11B6301000400440 used for?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor is used to switch high-current four-pole electrical circuits in industrial motor control, power distribution, heating and automation applications." } }, { "@type": "Question", "name": "What current can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an IEC conventional free-air thermal current rating of 1000 A in AC-1 duty at ambient temperatures up to 40°C." } }, { "@type": "Question", "name": "What control voltage does the coil require?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11B6301000400440 uses an electronically controlled 440–480 V AC/DC coil." } }, { "@type": "Question", "name": "How many power poles does this contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "This model has four normally open main power poles, allowing four electrical conductors to be switched simultaneously." } }, { "@type": "Question", "name": "What is the motor switching rating at 400 V?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an AC-3 operational rating of 630 A or 355 kW at 400 V." } } ] }
