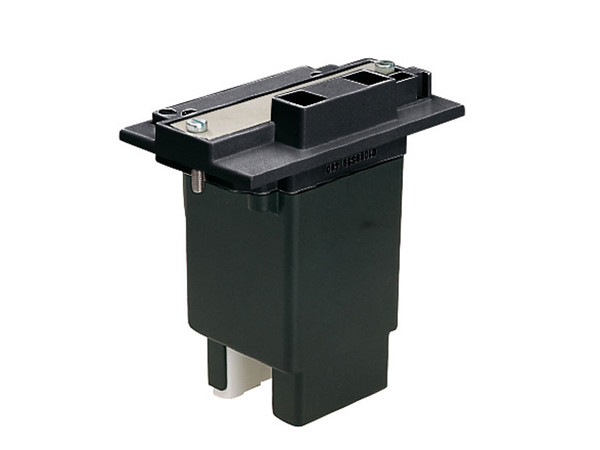

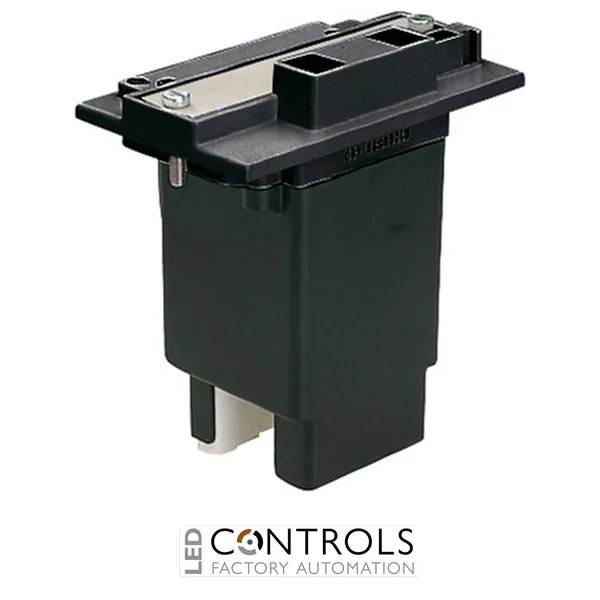

11BA1796220 – COIL ASSEMBLY BA1796 220/240V

Q: What voltage is the 11BA1796220 rated for?

The coil assembly is rated for 220–240 V AC/DC control operation.

Lovato 11BA1796220 AC/DC coil assembly with coil, rectifier and coil protection for Lovato B500, B630, B6301000, B1250 and B1600 industrial contactors.

SKU: 11BA1796220Alt SKU: BA1796220MPN: 11BA1796220

List Price £944.18 ex VAT

Your Price (ex VAT)

£944.18

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £944.18

Trade pricing is personalised to your account

Manufacturer Lead Time

£944.18

Why Choose the Lovato 11BA1796220 AC/DC Coil Assembly?

The Lovato 11BA1796220 is a complete AC/DC coil assembly designed for Lovato B500, B630, B6301000, B1250 and B1600 contactors. This heavy-duty replacement assembly combines the coil, rectifier and coil protection components into one integrated unit, providing reliable electromagnetic operation for large industrial contactors.

Manufactured by Lovato Electric, the 11BA1796220 is an original spare part engineered to restore dependable switching performance while maintaining compatibility with Lovato high-current contactor systems. The integrated AC/DC design simplifies maintenance by replacing the complete coil assembly rather than individual components.

With a rated control voltage of 220–240 V AC/DC, the Lovato 11BA1796220 is suitable for industrial motor control systems, power distribution assemblies and automation installations requiring reliable operation of B500 to B1600 contactor ranges.

Key Advantages

Original Lovato Electric AC/DC coil assembly.
Complete assembly including coil, rectifier and coil protection.
Designed for B500, B630, B6301000, B1250 and B1600 contactors.
220–240 V AC/DC control voltage for industrial applications.
Reduces maintenance time by replacing the complete coil unit.
Reliable solution for heavy-duty contactor servicing.

Key Features

Lovato BA1796 series coil assembly.
AC/DC coil configuration.
Integrated rectifier module.
Built-in coil protection components.
Compatible with Lovato high-power B-series contactors.
Designed for demanding industrial switching environments.
Original OEM replacement component.

Reliable Coil Control for Heavy-Duty Contactors

Large industrial contactors require dependable coil assemblies to ensure consistent switching performance. The Lovato 11BA1796220 provides the electromagnetic control components required to operate compatible B-series contactors safely and efficiently.

By combining the coil, rectifier and protection components into one complete assembly, this Lovato spare part helps simplify servicing, improve reliability and reduce downtime in industrial electrical systems.

Typical Applications

Heavy-duty industrial motor starters.
Large electrical control panels.
Power distribution systems.
Industrial automation equipment.
Manufacturing and processing machinery.
Maintenance replacement for Lovato B500–B1600 contactors.

Technical Specifications

Coil Voltage Range	200–250 V
Voltage	240 V
Series	BA1796 Contactors Spare Parts
Product type	AC/DC coil assembly
Type of coil	AC/DC coil
Rated coil voltage	220–240 V AC/DC
Type of spare part	Coil assembly
Integrated components	Coil, rectifier and coil protection
Compatible contactors	11B500, 11B630, 11B6301000, 11B1250, 11B1600 series
Application	Industrial contactor maintenance and replacement
Mounting application	Industrial contactor assembly
Weight	approx. 4960 g
Package dimensions	approx. 208 × 148 × 232 mm
Volume	approx. 7141.888 cm³
EAN	8013975030691
HS code	85389099
Coil / Supply Voltage	220 V AC, 220 V DC, 230 V AC, 240 V AC
Device Type	Accessory
Coil Type	AC/DC

Frequently Asked Questions

What is the Lovato 11BA1796220 used for?

The Lovato 11BA1796220 is an AC/DC coil assembly used to operate compatible Lovato B500, B630, B6301000, B1250 and B1600 contactors.

What components are included in this coil assembly?

The assembly includes the contactor coil, rectifier and coil protection components as a complete replacement unit.

What voltage is the 11BA1796220 rated for?

The coil assembly is rated for 220–240 V AC/DC control operation.

Which Lovato contactors are compatible?

The 11BA1796220 is designed for Lovato B500, B630, B6301000, B1250 and B1600 contactor ranges.

Is this an original Lovato spare part?

Yes. The 11BA1796220 is a genuine Lovato Electric replacement coil assembly designed for compatible contactors.

Trusted for Industrial Switching Applications

Lovato Electric spare parts are trusted by industrial professionals to maintain reliable switching performance, efficient maintenance and long service life in demanding electrical control systems.
