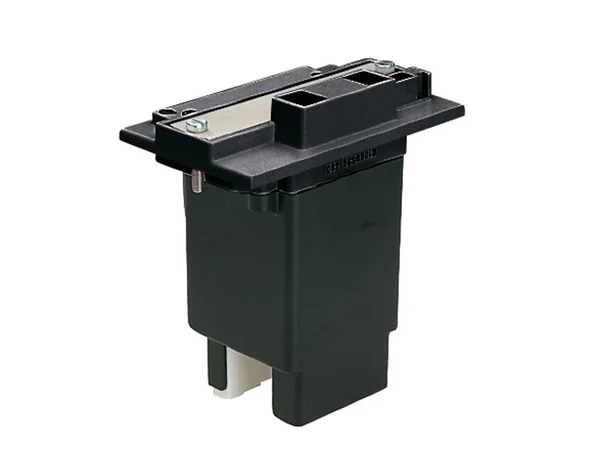

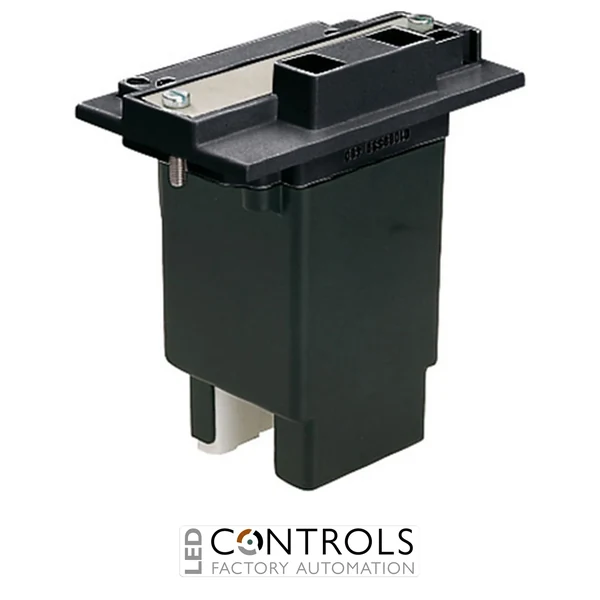

Lovato 11BA1796380 AC/DC coil assembly with coil, rectifier and coil protection for Lovato B500, B630, B6301000, B1250 and B1600 industrial contactors.
£944.18
The Lovato 11BA1796380 is a complete AC/DC coil assembly designed for Lovato B500, B630, B6301000, B1250 and B1600 contactors. This heavy-duty replacement assembly combines the coil, rectifier and coil protection components into one integrated unit, providing reliable electromagnetic operation for large industrial contactors.
Manufactured by Lovato Electric, the 11BA1796380 is an original spare part engineered to restore dependable contactor performance while maintaining compatibility with high-current Lovato switching equipment. The integrated AC/DC design simplifies maintenance by allowing the complete coil assembly to be replaced as one module.
With a rated control voltage of 380–415 V AC/DC, the Lovato 11BA1796380 is suitable for industrial motor control systems, power distribution assemblies and automation installations requiring dependable operation of B500 to B1600 contactor ranges.
Large industrial contactors require dependable coil assemblies to ensure consistent switching performance. The Lovato 11BA1796380 provides the electromagnetic control components required to operate compatible B-series contactors safely and efficiently.
By combining the coil, rectifier and protection components into one complete assembly, this Lovato spare part helps simplify servicing, improve reliability and reduce downtime in industrial electrical systems.
| Voltage | 415 V |
|---|---|
| Series | BA1796 Contactors Spare Parts |
| Product type | AC/DC coil assembly |
| Type of coil | AC/DC coil |
| Rated coil voltage | 380–415 V AC/DC |
| Type of spare part | Coil assembly |
| Integrated components | Coil, rectifier and coil protection |
| Compatible contactors | 11B500, 11B630, 11B6301000, 11B1250, 11B1600 series |
| Application | Industrial contactor maintenance and replacement |
| Mounting application | Industrial contactor assembly |
| Weight | approx. 5055 g |
| Package dimensions | approx. 208 × 148 × 232 mm |
| Volume | approx. 7141.888 cm³ |
| EAN | 8013975030707 |
| HS code | 85389099 |
The Lovato 11BA1796380 is an AC/DC coil assembly used to operate compatible Lovato B500, B630, B6301000, B1250 and B1600 contactors.
The assembly includes the contactor coil, rectifier and coil protection components as a complete replacement unit.
The coil assembly is rated for 380–415 V AC/DC control operation.
The 11BA1796380 is designed for Lovato B500, B630, B6301000, B1250 and B1600 contactor ranges.
Yes. The 11BA1796380 is a genuine Lovato Electric replacement coil assembly designed for compatible contactors.
Lovato Electric spare parts are trusted by industrial professionals to maintain reliable switching performance, efficient maintenance and long service life in demanding electrical control systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BA1796380 AC/DC Coil Assembly 380–415 V", "sku": "11BA1796380", "mpn": "11BA1796380", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Contactor Spare Parts", "description": "Lovato 11BA1796380 AC/DC coil assembly including coil, rectifier and coil protection for B500, B630, B6301000, B1250 and B1600 contactors.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Product type", "value": "AC/DC coil assembly" }, { "@type": "PropertyValue", "name": "Control voltage", "value": "380–415 V AC/DC" }, { "@type": "PropertyValue", "name": "Compatible contactors", "value": "B500, B630, B6301000, B1250, B1600" }, { "@type": "PropertyValue", "name": "Included components", "value": "Coil, rectifier and coil protection" }, { "@type": "PropertyValue", "name": "Weight", "value": "5055 g" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BA1796380 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BA1796380 is an AC/DC coil assembly used to operate compatible Lovato B500, B630, B6301000, B1250 and B1600 contactors." } }, { "@type": "Question", "name": "What components are included in this coil assembly?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly includes the contactor coil, rectifier and coil protection components as a complete replacement unit." } }, { "@type": "Question", "name": "What voltage is the 11BA1796380 rated for?", "acceptedAnswer": { "@type": "Answer", "text": "The coil assembly is rated for 380–415 V AC/DC control operation." } }, { "@type": "Question", "name": "Which Lovato contactors are compatible?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BA1796380 is designed for Lovato B500, B630, B6301000, B1250 and B1600 contactor ranges." } }, { "@type": "Question", "name": "Is this an original Lovato spare part?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The 11BA1796380 is a genuine Lovato Electric replacement coil assembly designed for compatible contactors." } } ] }
