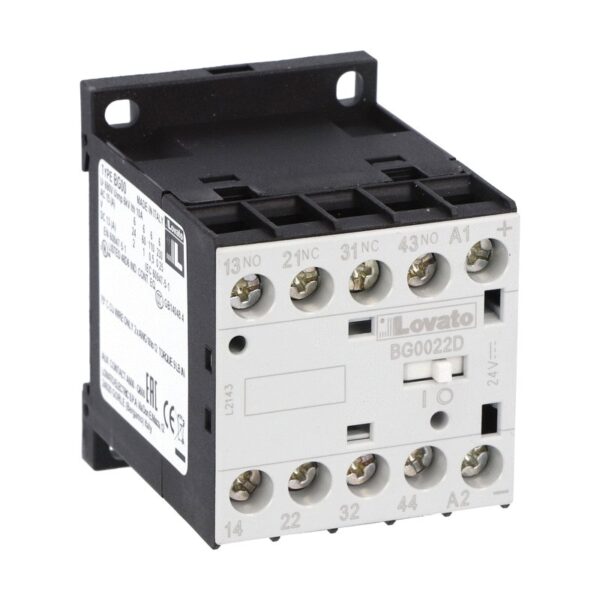

11BG0022D024 – MINICONTACTOR BG0.22D 24VDC

Q: What coil voltage does the 11BG0022D024 require?

The relay operates with a 24 V DC coil.

Q: What contact configuration does this relay have?

The Lovato 11BG0022D024 features a 2NO + 2NC contact configuration.

Q: How is the relay mounted?

The relay can be mounted on a 35 mm DIN rail or installed using screw fixing.

Lovato 11BG0022D024 industrial control relay with 24 V DC coil, 2NO + 2NC contacts and DIN rail mounting for automation and control panel applications.

SKU: 11BG0022D024Alt SKU: BG0022D024MPN: 11BG0022D024

List Price £47.45 ex VAT

Your Price (ex VAT)

£47.45

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £47.45

Trade pricing is personalised to your account

Manufacturer Lead Time

£47.45

Why Choose the Lovato 11BG0022D024 Control Relay?

The Lovato 11BG0022D024 is a compact and reliable control relay with DC coil designed for industrial automation, auxiliary switching and electrical control applications. Part of the Lovato BG series, this relay provides dependable switching performance with a 24 V DC coil and a versatile 2NO + 2NC contact configuration.

Manufactured by LOVATO Electric, the 11BG0022D024 is engineered for professional industrial installations requiring reliable auxiliary control, compact panel integration and long service life. Its four-pole design makes it suitable for machine control panels, automation systems and industrial electrical equipment.

With a rated operational current of 10 A and screw terminal connections, the Lovato 11BG0022D024 provides a practical solution for switching auxiliary circuits and control loads. The relay supports 35 mm DIN rail or screw mounting, allowing straightforward installation in modern control cabinets.

Key Advantages

Reliable Lovato BG series control relay.
24 V DC coil for industrial control applications.
2 normally open and 2 normally closed contacts for flexible switching.
Compact DIN rail mounting design.
Suitable for automation, machinery and auxiliary control circuits.
Designed for dependable long-term industrial operation.

Key Features

LOVATO Electric BG series control relay.
Model: 11BG0022D024.
Product type: Control relay.
Coil voltage: 24 V DC.
Contact configuration: 2NO + 2NC.
Number of poles: 4.
Rated current: 10 A.
Mounting: DIN rail 35 mm / screw mounting.
Suitable for industrial automation and control systems.

Reliable Switching for Industrial Automation Systems

Control relays provide essential switching between control circuits and connected electrical devices. The Lovato 11BG0022D024 delivers dependable auxiliary switching performance while maintaining a compact footprint suitable for modern industrial control panels.

Designed for OEM machine builders, electricians and automation engineers, this Lovato relay combines robust construction, flexible contact arrangements and simple installation to support efficient industrial control solutions.

Typical Applications

Industrial automation control panels.
Machine control circuits.
Motor control systems.
Electrical distribution panels.
PLC interface and auxiliary switching applications.
Industrial machinery and OEM equipment.

Technical Specifications

Coil Voltage Range	24 V
Current	10 A
Voltage	24 V
Phase	Three Phase
IP Rating	IP20
Series	BG Series
Product type	Control relay
Number of poles	4
Contact configuration	2NO + 2NC
Type of coil	DC coil
Rated coil voltage	24 V DC
Rated operational current	10 A AC1
Rated insulation voltage	690 V
Mounting type	Screw / DIN rail 35 mm
Terminal type	Screw terminals
Mechanical durability	approx. 20 million operations
Operating temperature	approx. -50 to +70 °C
Protection rating	IP20
Dimensions	approx. 60 × 45 × 60 mm
Weight	approx. 222 g
EAN	8013975080887
Poles	4-pole
Coil / Supply Voltage	24 V DC
Device Type	Contactor relay
Coil Type	DC

Frequently Asked Questions

What is the Lovato 11BG0022D024 used for?

The Lovato 11BG0022D024 is a control relay used for auxiliary switching and industrial automation control applications.

What coil voltage does the 11BG0022D024 require?

The relay operates with a 24 V DC coil.

What contact configuration does this relay have?

The Lovato 11BG0022D024 features a 2NO + 2NC contact configuration.

How is the relay mounted?

The relay can be mounted on a 35 mm DIN rail or installed using screw fixing.

Where is this control relay typically installed?

The Lovato 11BG0022D024 is typically installed in industrial control cabinets, automation panels and electrical switching systems.

Trusted by Industrial Control Professionals

LOVATO Electric control relays are trusted by engineers and automation professionals worldwide for dependable switching, flexible control solutions and reliable industrial performance.
