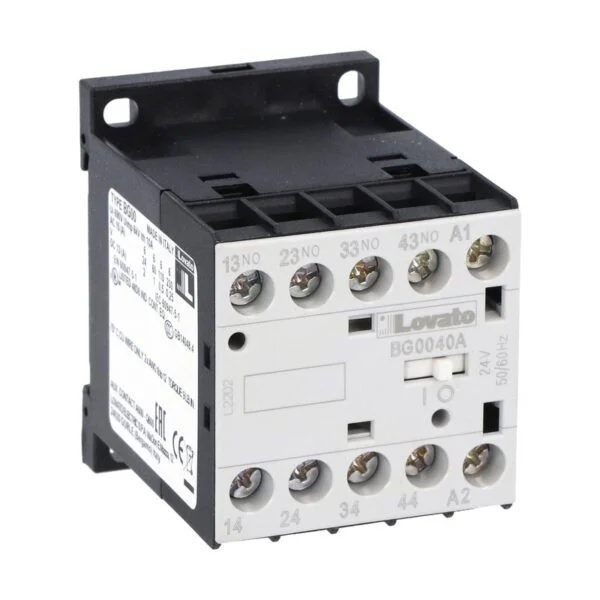

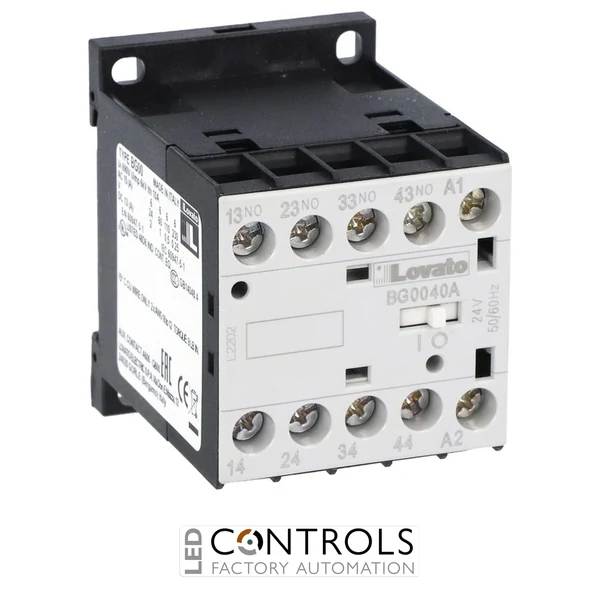

Lovato 11BG0040A230 industrial control relay with 230 V AC coil and 4NO auxiliary contacts, designed for industrial automation and machine control applications.
£37.46
The Lovato 11BG0040A230 is a compact and reliable industrial control relay with an AC coil designed for automation systems, electrical control panels and auxiliary switching applications. Part of the trusted Lovato BG series, this relay delivers dependable switching performance for machine control, industrial equipment and electrical installations.
Featuring a 230 V AC 50/60 Hz coil and a 4NO contact configuration, the Lovato 11BG0040A230 provides flexible control for auxiliary circuits where reliable operation and long service life are required. Its compact design supports simple installation using 35 mm DIN rail or screw mounting, making it suitable for modern electrical cabinets.
With a 4-pole configuration, 10 A current rating and robust industrial construction, this Lovato control relay is ideal for automation systems, motor control panels, HVAC equipment and OEM machinery applications requiring dependable switching capability.
Industrial control relays such as the Lovato 11BG0040A230 provide dependable switching between PLCs, controllers, contactors and auxiliary circuits. They help simplify automation designs while maintaining reliable electrical isolation and efficient control operation.
The Lovato BG series is engineered for panel builders, automation specialists and machine manufacturers requiring compact components with reliable performance, easy installation and long operational durability.
| Current | 00.40 A |
|---|---|
| Voltage | 230 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Series |
| Product type | Control relay |
| Number of poles | 4 |
| Auxiliary contact configuration | 4NO |
| Coil type | AC coil 50/60Hz |
| Rated coil voltage | 230 V AC |
| Rated thermal current | 10 A AC1 |
| Maximum operating current | 6 A |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Mounting type | Screw / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Protection rating | IP20 |
| Mechanical endurance | 20 million cycles |
| Operating temperature | -50 °C to +70 °C |
| Dimensions (H × W × D) | approx. 58 × 44 × 57 mm |
| Weight | approx. 182 g |
| Standards | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No 60947-1 |
| EAN | 8013975080399 |
The Lovato 11BG0040A230 is a control relay designed for industrial automation, machine control and auxiliary switching applications.
The relay operates using a 230 V AC 50/60 Hz control coil.
This relay features four normally open contacts (4NO).
Yes, the relay supports 35 mm DIN rail mounting as well as screw mounting.
It is commonly installed in industrial automation systems, electrical control panels, machinery and auxiliary switching circuits.
Lovato BG series control relays are trusted by panel builders and automation engineers worldwide for reliable auxiliary switching, compact installation and dependable industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG0040A230 Control Relay 230V AC Coil 4 Pole 4NO", "sku": "11BG0040A230", "mpn": "11BG0040A230", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Control Relays", "description": "Lovato 11BG0040A230 control relay with 230V AC coil, four poles and four normally open contacts for industrial automation and electrical control systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "230 V AC" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "4NO" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Rated current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG0040A230 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG0040A230 is a control relay designed for industrial automation, machine control and auxiliary switching applications." } }, { "@type": "Question", "name": "What coil voltage does this relay use?", "acceptedAnswer": { "@type": "Answer", "text": "The relay operates using a 230 V AC 50/60 Hz control coil." } }, { "@type": "Question", "name": "What contact arrangement does the Lovato 11BG0040A230 provide?", "acceptedAnswer": { "@type": "Answer", "text": "This relay features four normally open contacts (4NO)." } }, { "@type": "Question", "name": "Can the Lovato 11BG0040A230 be mounted on a DIN rail?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the relay supports 35 mm DIN rail mounting as well as screw mounting." } }, { "@type": "Question", "name": "Where is this control relay commonly used?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in industrial automation systems, electrical control panels, machinery and auxiliary switching circuits." } } ] }
