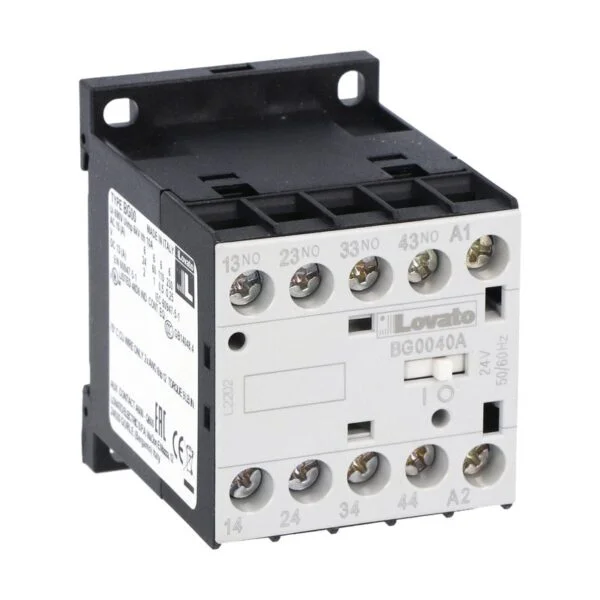

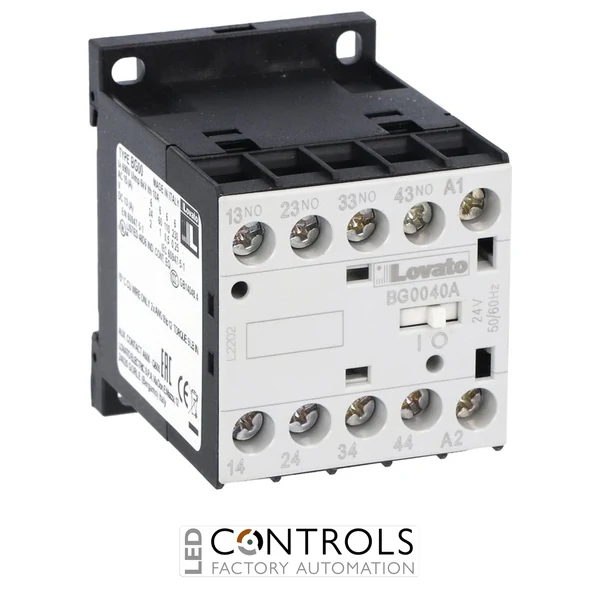

11BG0040A400 – CONTROL RELAY BG00.40A 400V 50-60HZ

Q: What coil voltage does this relay use?

The relay operates using a 400 V AC 50/60 Hz control coil.

Q: What contact arrangement does the Lovato 11BG0040A400 provide?

This relay features four normally open contacts (4NO).

Q: Can the Lovato 11BG0040A400 be mounted on a DIN rail?

Yes, the relay supports 35 mm DIN rail mounting as well as screw mounting.

Lovato 11BG0040A400 industrial control relay with 400 V AC coil and 4NO auxiliary contacts, designed for industrial automation and machine control applications.

SKU: 11BG0040A400Alt SKU: BG0040A400MPN: 11BG0040A400

List Price £37.46 ex VAT

Your Price (ex VAT)

£37.46

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £37.46

Trade pricing is personalised to your account

Manufacturer Lead Time

£37.46

Why Choose the Lovato 11BG0040A400 Control Relay?

The Lovato 11BG0040A400 is a compact and highly reliable industrial control relay with an AC coil designed for automation systems, electrical control panels and auxiliary switching applications. As part of the proven Lovato BG series, this relay provides dependable performance for machine control, industrial equipment and low-voltage switching systems.

Featuring a 400 V AC 50/60 Hz coil and a 4NO contact configuration, the Lovato 11BG0040A400 is engineered for reliable control of auxiliary circuits where efficient switching and long operational life are required. Its compact design enables easy installation using 35 mm DIN rail or screw mounting, making it suitable for modern electrical cabinets.

With a 4-pole configuration, four normally open contacts and a 10 A thermal current rating, this Lovato control relay is ideal for industrial automation, motor control panels, signalling circuits and OEM machinery applications requiring dependable auxiliary switching.

Key Advantages

Compact industrial control relay designed for automation applications.
400 V AC coil voltage suitable for industrial control circuits.
Four normally open contacts (4NO) for flexible auxiliary switching.
Supports 35 mm DIN rail and screw mounting.
Reliable switching performance for demanding industrial environments.
Compact construction for efficient electrical panel installation.

Key Features

Lovato BG series control relay.
400 V AC 50/60 Hz coil.
4-pole relay configuration.
4NO normally open auxiliary contacts.
10 A rated thermal current.
690 V rated insulation voltage.
Screw terminal connection system.
35 mm DIN rail mounting capability.
Compact design for industrial control cabinets.

Reliable Switching for Industrial Control Systems

Industrial control relays such as the Lovato 11BG0040A400 provide dependable switching between PLCs, controllers, contactors and auxiliary circuits. They help simplify automation designs while maintaining reliable electrical isolation and efficient control operation.

The Lovato BG series is developed for panel builders, machine manufacturers and automation engineers requiring compact components with reliable switching performance, flexible installation options and long service life.

Typical Applications

Industrial automation systems.
Machine control and interlocking circuits.
Motor control panels.
HVAC and building management systems.
OEM machinery and production equipment.
PLC interfacing and signalling applications.

Technical Specifications

Coil Voltage Range	380–440 V
Current	10 A
Voltage	400 V
Phase	Three Phase
IP Rating	IP20
Series	BG Series
Product type	Control relay
Number of poles	4
Auxiliary contact configuration	4NO
Coil type	AC coil 50/60Hz
Rated coil voltage	400 V AC
Rated thermal current	10 A AC1
Maximum operating current	6 A
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Mounting type	Screw / DIN rail 35 mm
Terminal type	Screw terminals
Protection rating	IP20
Mechanical endurance	20 million cycles
Operating temperature	-50 °C to +70 °C
Dimensions (H × W × D)	approx. 60 × 45 × 60 mm
Weight	approx. 178 g
Standards	IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1
EAN	8013975081693
Poles	4-pole
Coil / Supply Voltage	400 V AC
Device Type	Contactor relay
Auxiliary Contacts	4NO
Coil Type	AC
Current AC-1	10 A

Frequently Asked Questions

What is the Lovato 11BG0040A400 used for?

The Lovato 11BG0040A400 is a control relay designed for industrial automation, machine control and auxiliary switching applications.

What coil voltage does this relay use?

The relay operates using a 400 V AC 50/60 Hz control coil.

What contact arrangement does the Lovato 11BG0040A400 provide?

This relay features four normally open contacts (4NO).

Can the Lovato 11BG0040A400 be mounted on a DIN rail?

Yes, the relay supports 35 mm DIN rail mounting as well as screw mounting.

Where is this control relay commonly used?

It is commonly installed in industrial automation systems, electrical control panels, machinery and auxiliary switching circuits.

Trusted by Industrial Automation Engineers

Lovato BG series control relays are trusted by panel builders and automation engineers worldwide for reliable auxiliary switching, compact installation and dependable long-term industrial performance.

Coil Voltage Range	380–440 V
Current	10 A
Voltage	400 V
Phase	Three Phase
IP Rating	IP20
Series	BG Series
Product type	Control relay
Number of poles	4
Auxiliary contact configuration	4NO
Coil type	AC coil 50/60Hz
Rated coil voltage	400 V AC
Rated thermal current	10 A AC1
Maximum operating current	6 A
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Mounting type	Screw / DIN rail 35 mm
Terminal type	Screw terminals
Protection rating	IP20
Mechanical endurance	20 million cycles
Operating temperature	-50 °C to +70 °C
Dimensions (H × W × D)	approx. 60 × 45 × 60 mm
Weight	approx. 178 g
Standards	IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1
EAN	8013975081693
Poles	4-pole
Coil / Supply Voltage	400 V AC
Device Type	Contactor relay
Auxiliary Contacts	4NO
Coil Type	AC
Current AC-1	10 A
