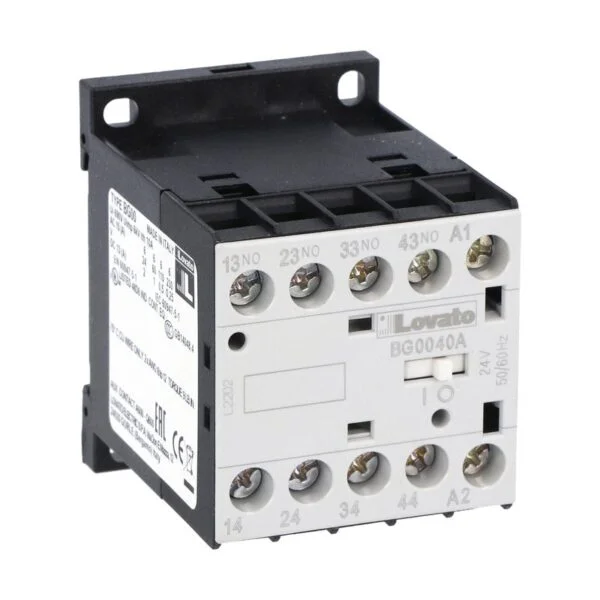

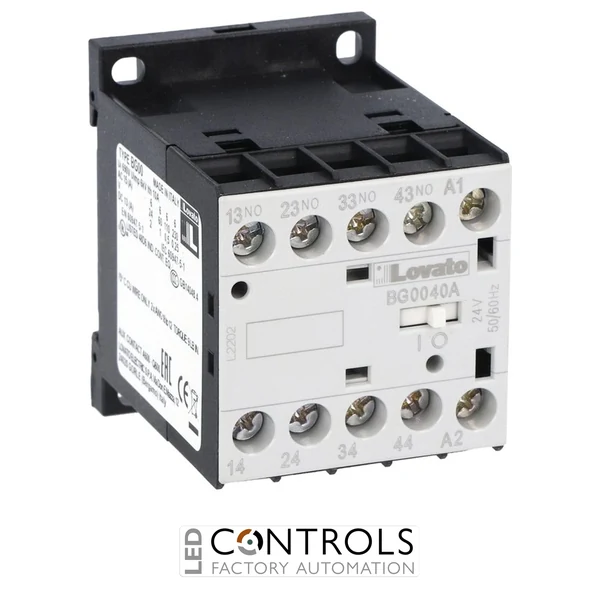

Lovato 11BG0040A46060 industrial control relay with 460 V AC 60Hz coil and 4NO auxiliary contacts, designed for industrial automation and machine control applications.
£37.46
The Lovato 11BG0040A46060 is a compact and reliable industrial control relay with an AC coil designed for electrical automation, control panels and auxiliary switching applications. Part of the dependable Lovato BG00 series, this relay provides efficient switching performance for industrial machinery, motor control systems and automation installations.
Featuring a 460 V AC 60 Hz coil and a 4NO contact configuration, the Lovato 11BG0040A46060 is designed for controlling auxiliary circuits where reliable operation, electrical isolation and long service life are required. Its compact construction supports simple installation using 35 mm DIN rail or screw mounting.
With a 4-pole configuration, 10 A rated thermal current, and robust industrial construction, this Lovato control relay is suitable for automation panels, motor control circuits, signalling applications and OEM machinery requiring dependable switching capability.
Industrial control relays such as the Lovato 11BG0040A46060 provide dependable switching between controllers, PLC systems, contactors and auxiliary circuits. They allow automation engineers to create reliable control solutions while maintaining electrical separation between control and switched circuits.
The Lovato BG00 series is developed for panel builders, machine manufacturers and automation professionals requiring compact components with dependable performance, flexible mounting options and compliance with international industrial standards.
| Current | 00.40 A |
|---|---|
| Voltage | 460 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Series |
| Product type | Control relay |
| Number of poles | 4 |
| Auxiliary contact configuration | 4NO |
| Coil type | AC coil 60Hz |
| Rated coil voltage | 460 V AC |
| Frequency | 60 Hz |
| Rated thermal current | 10 A AC1 |
| Maximum operating current | 6 A |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Mounting type | Screw / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Protection rating | IP20 |
| Mechanical endurance | 20 million cycles |
| Operating temperature | -50 °C to +70 °C |
| Dimensions (H × W × D) | approx. 60 × 45 × 60 mm |
| Weight | approx. 176 g |
| Standards | IEC/EN 60947-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1 |
| EAN | 8013975107881 |
The Lovato 11BG0040A46060 is a control relay used for auxiliary switching, industrial automation and electrical control applications.
The relay operates with a 460 V AC coil at 60 Hz.
This control relay features four normally open contacts (4NO).
The relay supports screw mounting and standard 35 mm DIN rail installation.
The relay is designed for industrial environments with an operating temperature range of approximately -50 °C to +70 °C.
Lovato BG00 series control relays are trusted by automation engineers and panel builders worldwide for reliable switching, compact installation and durable industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG0040A46060 Control Relay 460V AC 60Hz 4NO", "sku": "11BG0040A46060", "mpn": "11BG0040A46060", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Control Relays", "description": "Lovato 11BG0040A46060 BG00 control relay with 460V AC 60Hz coil, four normally open contacts and DIN rail mounting for industrial automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "460 V AC" }, { "@type": "PropertyValue", "name": "Frequency", "value": "60 Hz" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "4NO" }, { "@type": "PropertyValue", "name": "Rated current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG0040A46060 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG0040A46060 is a control relay used for auxiliary switching, industrial automation and electrical control applications." } }, { "@type": "Question", "name": "What coil voltage does this relay use?", "acceptedAnswer": { "@type": "Answer", "text": "The relay operates with a 460 V AC coil at 60 Hz." } }, { "@type": "Question", "name": "How many contacts does the Lovato 11BG0040A46060 have?", "acceptedAnswer": { "@type": "Answer", "text": "This control relay features four normally open contacts (4NO)." } }, { "@type": "Question", "name": "How can this relay be mounted?", "acceptedAnswer": { "@type": "Answer", "text": "The relay supports screw mounting and standard 35 mm DIN rail installation." } }, { "@type": "Question", "name": "What environments can this relay operate in?", "acceptedAnswer": { "@type": "Answer", "text": "The relay is designed for industrial environments with an operating temperature range of approximately -50 °C to +70 °C." } } ] }
