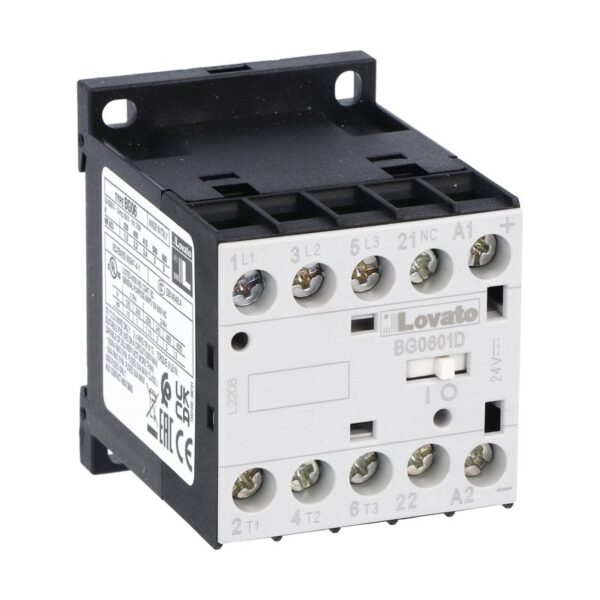

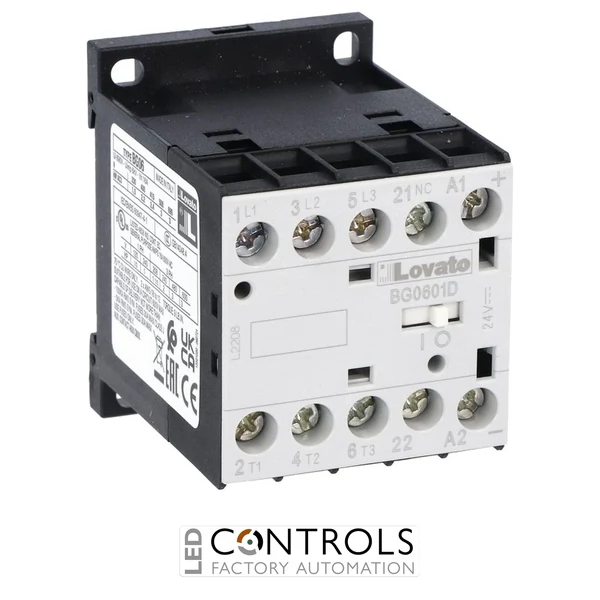

Lovato 11BG0601D048 three-pole mini contactor with 48 V DC coil, 6 A AC3 operational current and integrated 1NC auxiliary contact for industrial motor control applications.
£62.25
The Lovato 11BG0601D048 is a compact and reliable three-pole industrial contactor designed for efficient switching and control of motors and electrical loads in industrial automation systems. Part of the Lovato BG series contactors, it features a 48V DC coil and integrated auxiliary contact functionality for dependable operation in modern control panels.
This contactor is designed for OEM machine builders, panel manufacturers and automation engineers requiring a durable switching solution with compact dimensions. Its DIN rail mounting capability, screw terminals and robust electrical characteristics make it suitable for a wide range of industrial applications.
With an IEC AC-3 rated operating current of 6A and support for motor loads up to 2.2 kW at 400V AC, the Lovato 11BG0601D048 is suitable for controlling smaller three-phase motors, machinery equipment and automation systems. The integrated 1NC auxiliary contact with mirror contact function provides additional monitoring and control capability.
Industrial contactors such as the Lovato 11BG0601D048 provide reliable electrical switching by allowing low-power control signals to operate higher-power motor circuits. This improves system organisation, operational safety and automation efficiency.
The BG series is developed for applications where compact installation, dependable switching performance and easy integration are essential. The auxiliary contact allows connection to PLC systems, machine controllers and industrial monitoring circuits.
| Power | 2.2 kW |
|---|---|
| Current | 6 A |
| Voltage | 48 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Series |
| Product type | Three-pole mini contactor |
| Number of poles | 3 |
| Main contact configuration | 3NO |
| Built-in auxiliary contacts | 1NC |
| Auxiliary contact function | Mirror contact |
| Coil type | DC coil |
| Rated coil voltage | 48 V DC |
| IEC operational current Ie (AC3) | 6 A |
| Rated motor power at 400 V AC3 | 2.2 kW |
| Thermal current Ith (AC1) | 16 A |
| Horsepower rating at 480 V | 3 HP |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Mounting type | Screw / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Protection rating | IP20 |
| Mechanical endurance | 20 million cycles |
| Operating temperature | -50 °C to +70 °C |
| Dimensions (H × W × D) | approx. 60 × 45 × 60 mm |
| Weight | approx. 214 g |
| EAN | 8013975080917 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
The Lovato 11BG0601D048 is a three-pole contactor used for switching and controlling motors and electrical loads in industrial automation systems.
This contactor operates with a 48V DC coil suitable for industrial control applications.
The contactor has an AC-3 rated operating current of 6A and supports motor loads up to 2.2 kW at 400V AC.
Yes, the Lovato 11BG0601D048 includes a 1NC auxiliary contact with mirror contact function for monitoring and control.
The contactor can be installed using screw fixing or mounted on a standard 35mm DIN rail.
Lovato BG series contactors are widely used in industrial control systems to provide dependable motor switching, compact installation and reliable automation performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG0601D048 Three Pole Contactor 48V DC Coil", "sku": "11BG0601D048", "mpn": "11BG0601D048", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Contactors", "description": "Lovato 11BG0601D048 three-pole contactor with 48V DC coil, 6A AC-3 rating and 1NC auxiliary contact for industrial motor control and automation applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "48V DC" }, { "@type": "PropertyValue", "name": "Operating current", "value": "6A AC-3" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NC" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG0601D048 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG0601D048 is a three-pole contactor used for switching and controlling motors and electrical loads in industrial automation systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor operates with a 48V DC coil suitable for industrial control applications." } }, { "@type": "Question", "name": "What is the rated current of the Lovato 11BG0601D048?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an AC-3 rated operating current of 6A and supports motor loads up to 2.2 kW at 400V AC." } }, { "@type": "Question", "name": "Does this contactor include auxiliary contacts?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the Lovato 11BG0601D048 includes a 1NC auxiliary contact with mirror contact function for monitoring and control." } }, { "@type": "Question", "name": "How is the Lovato 11BG0601D048 mounted?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor can be installed using screw fixing or mounted on a standard 35mm DIN rail." } } ] }
