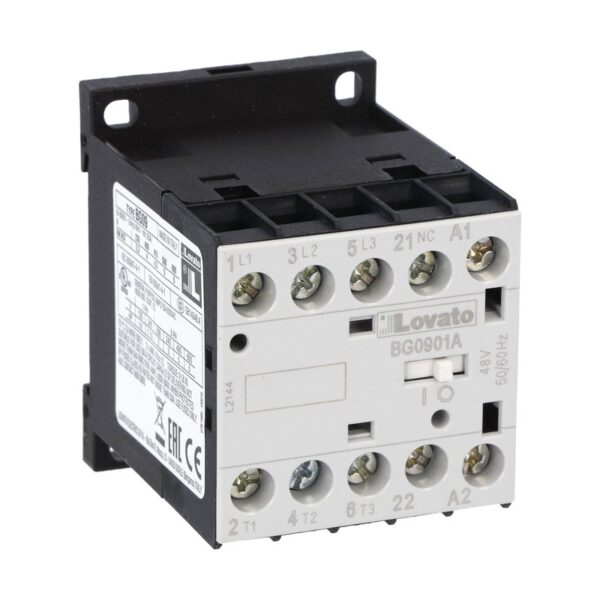

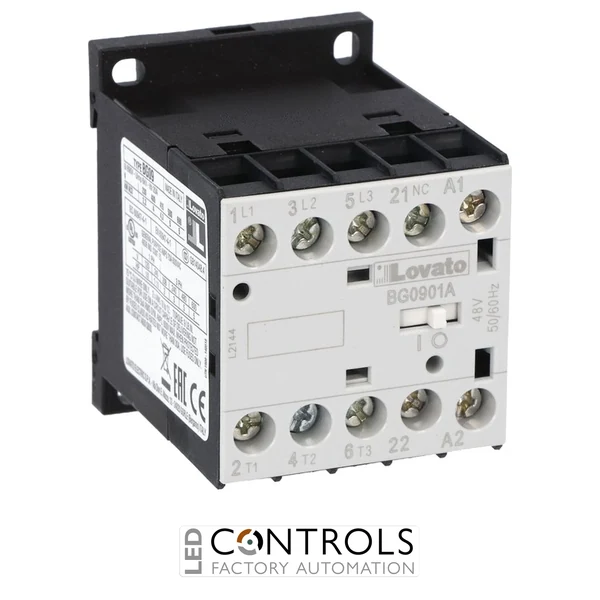

11BG0901A024 Lovato contactor 3 pole AC3:9A 4kw 24vac coil 1nc aux

Q: What coil voltage does the Lovato 11BG0901A024 require?

The contactor uses a 24 V AC 50/60 Hz coil.

Q: What motor power can this contactor control?

The contactor is rated for motors up to approximately 4 kW at 400 V AC in AC-3 duty.

Q: How many auxiliary contacts are included?

The contactor includes one normally closed auxiliary contact for control, signalling or interlocking circuits.

Q: How is the Lovato 11BG0901A024 installed?

The contactor can be installed using screw mounting or 35 mm DIN rail mounting in electrical control panels.

Lovato 11BG0901A024 BG09 three-pole power contactor with 24 V AC coil, 9 A AC-3 rating and 1NC auxiliary contact for industrial motor control applications.

SKU: 11BG0901A024Alt SKU: BG0901A024MPN: 11BG0901A024

List Price £43.85 ex VAT

Your Price (ex VAT)

£43.85

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £43.85

Trade pricing is personalised to your account

Manufacturer Lead Time

£43.85

Why Choose the Lovato 11BG0901A024 Power Contactor?

The Lovato 11BG0901A024 is a compact and reliable three-pole power contactor designed for switching motors and electrical loads in industrial automation, control panels and motor management applications. As part of the Lovato BG contactor series, it provides dependable switching performance with a compact footprint and flexible mounting options.

This contactor features an AC 24 V coil, three main power poles and an integrated auxiliary contact, making it suitable for motor starters, machine control systems and industrial electrical installations. Its screw terminal design and DIN rail mounting capability allow straightforward integration into modern control panels.

With a rated operational current of 9 A AC-3 at 400 V and a motor power rating of 4 kW, the Lovato 11BG0901A024 is ideal for controlling small three-phase motors, pumps, fans and automation equipment requiring reliable contactor switching.

Key Advantages

Compact power contactor designed for industrial motor control.
9 A AC-3 rated switching current for small motor applications.
24 V AC coil voltage suitable for control circuits.
Integrated 1NC auxiliary contact for signalling and interlocking.
DIN rail and screw mounting options for flexible installation.
Reliable Lovato switching technology for automation systems.

Key Features

Lovato BG09 series power contactor.
Three main power poles.
1 normally closed (NC) auxiliary contact.
24 V AC 50/60 Hz coil.
9 A AC-3 motor switching current.
20 A AC-1 thermal current rating.
Screw terminal connections.
DIN rail 35 mm mounting capability.

Reliable Motor Switching for Industrial Systems

Power contactors such as the Lovato 11BG0901A024 provide reliable isolation and switching of electrical loads in motor control applications. They are commonly used with overload relays and control devices to create complete motor starter solutions for industrial equipment.

The Lovato BG series combines compact dimensions with robust electrical performance, making it suitable for panel builders, automation engineers and OEM equipment manufacturers requiring dependable switching components.

Typical Applications

Three-phase motor starters.
Industrial automation control panels.
Pumps and fan control systems.
Machine building applications.
HVAC and process equipment.
OEM electrical assemblies and switchgear.

Technical Specifications

Coil Voltage Range	24 V
Power	4 kW
Current	9 A
Manufacturer	Lovato Electric
Series	BG Contactors
Model	11BG0901A024
Product type	Power contactor
Number of poles	3
Main contacts	3NO
Auxiliary contacts	1NC
Coil type	AC coil 50/60 Hz
Rated coil voltage	24 V AC
Rated operational current AC-1	20 A
Rated operational current AC-3	9 A
Rated operational power AC-3 at 400 V	4 kW
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Mounting type	Screw / DIN rail 35 mm
Connection type	Screw terminals
Protection rating	IP20
Weight	approx. 180 g
Poles	3-pole
Coil / Supply Voltage	24 V AC
Device Type	Contactor
Auxiliary Contacts	1NC
Coil Type	AC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BG0901A024 used for?

The Lovato 11BG0901A024 is a three-pole power contactor used for switching motors and electrical loads in industrial control applications.

What coil voltage does the Lovato 11BG0901A024 require?

The contactor uses a 24 V AC 50/60 Hz coil.

What motor power can this contactor control?

The contactor is rated for motors up to approximately 4 kW at 400 V AC in AC-3 duty.

How many auxiliary contacts are included?

The contactor includes one normally closed auxiliary contact for control, signalling or interlocking circuits.

How is the Lovato 11BG0901A024 installed?

The contactor can be installed using screw mounting or 35 mm DIN rail mounting in electrical control panels.

Trusted by Industrial Automation Professionals

Lovato BG contactors are widely used by engineers and machine builders to deliver reliable motor switching, compact installation and efficient control solutions in industrial systems.

Coil Voltage Range	24 V
Power	4 kW
Current	9 A
Manufacturer	Lovato Electric
Series	BG Contactors
Model	11BG0901A024
Product type	Power contactor
Number of poles	3
Main contacts	3NO
Auxiliary contacts	1NC
Coil type	AC coil 50/60 Hz
Rated coil voltage	24 V AC
Rated operational current AC-1	20 A
Rated operational current AC-3	9 A
Rated operational power AC-3 at 400 V	4 kW
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Mounting type	Screw / DIN rail 35 mm
Connection type	Screw terminals
Protection rating	IP20
Weight	approx. 180 g
Poles	3-pole
Coil / Supply Voltage	24 V AC
Device Type	Contactor
Auxiliary Contacts	1NC
Coil Type	AC
Current AC-1	20 A
