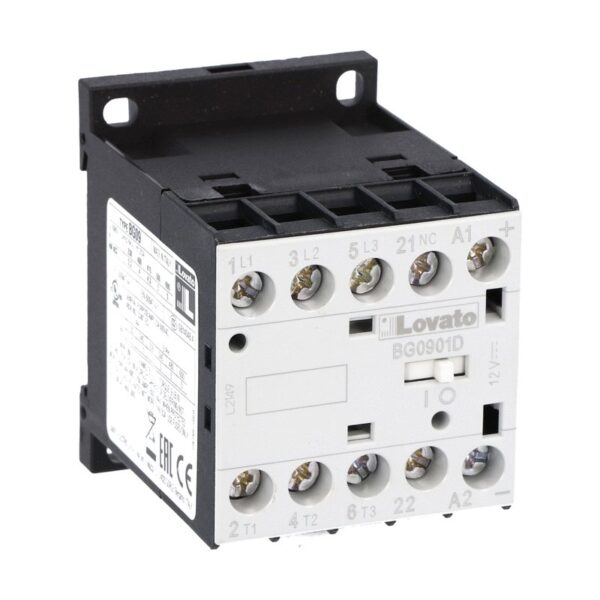

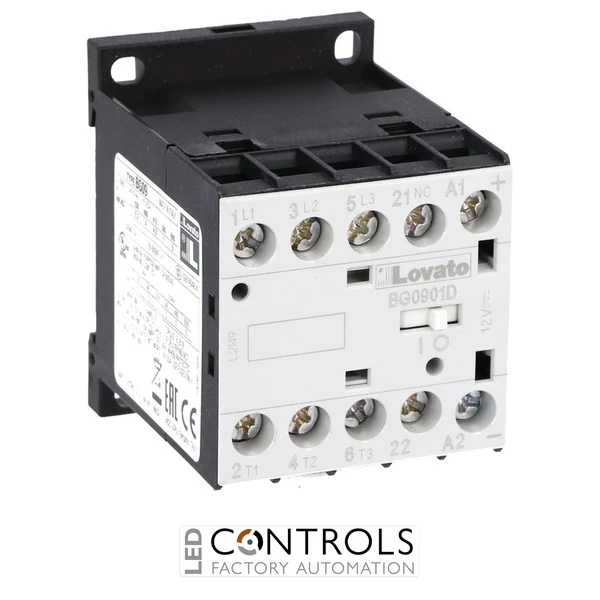

Why Choose the Lovato 11BG0901D024 Power Contactor?
The Lovato 11BG0901D024 is a compact and reliable three-pole power contactor designed for switching and controlling electric motors and other electrical loads. As part of the Lovato BG series, it combines a space-saving design with dependable electromechanical operation for industrial machinery, control panels and automation systems.
This contactor has a DC-operated coil rated at 24 V DC and an integrated 1NC auxiliary contact with mirror contact function. Its three main poles provide an IEC AC-3 operational current rating of 9 A, while screw or 35 mm DIN-rail mounting supports straightforward installation in control cabinets.
With a rated AC-3 operational power of 4 kW at 400 V and an AC-1 conventional free-air thermal current of 20 A at up to 40 °C, the 11BG0901D024 is suitable for motor starters, pumps, fans, conveyors and general industrial switching duties. Its power terminals provide IP20 protection when properly wired.
Key Advantages
- Compact three-pole power contactor for motor control and load switching.
- 9 A AC-3 operational current at up to 440 V and 55 °C.
- 4 kW AC-3 motor rating at 400 V.
- 24 V DC coil suitable for industrial control circuits.
- Built-in 1NC auxiliary contact with mirror contact function.
- Flexible screw or 35 mm DIN-rail mounting.
Key Features
- Lovato BG09 contactor series.
- Three normally open main poles.
- 9 A rated operational current in AC-3 duty.
- 20 A conventional free-air thermal current at up to 40 °C.
- 24 V DC control coil with 3.2 W average consumption.
- Integrated 1NC auxiliary contact.
- 690 V rated insulation voltage and 6 kV impulse withstand voltage.
- IP20 power-terminal protection when properly wired.
Reliable Switching for Motor-Control Systems
Power contactors such as the Lovato 11BG0901D024 use an electromagnetic coil to open and close the main contacts remotely. This enables motors and other electrical loads to be controlled safely through low-power control circuits, automation equipment and motor-starter assemblies.
The BG09 design supports frequent industrial switching, while its integrated normally closed auxiliary contact can provide signalling, electrical interlocking or control feedback. The mirror contact function supports applications requiring reliable indication of the main-contact state when used within an appropriately designed control system.
Typical Applications
- Direct-on-line motor starters.
- Industrial pumps, fans and compressors.
- Conveyors and material-handling equipment.
- Packaging and production machinery.
- Heating, ventilation and air-conditioning equipment.
- Industrial control panels and automation systems.
