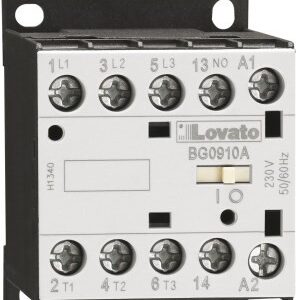

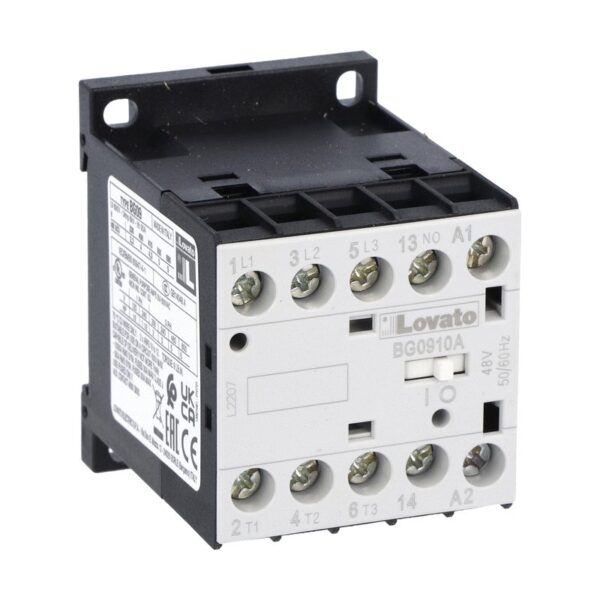

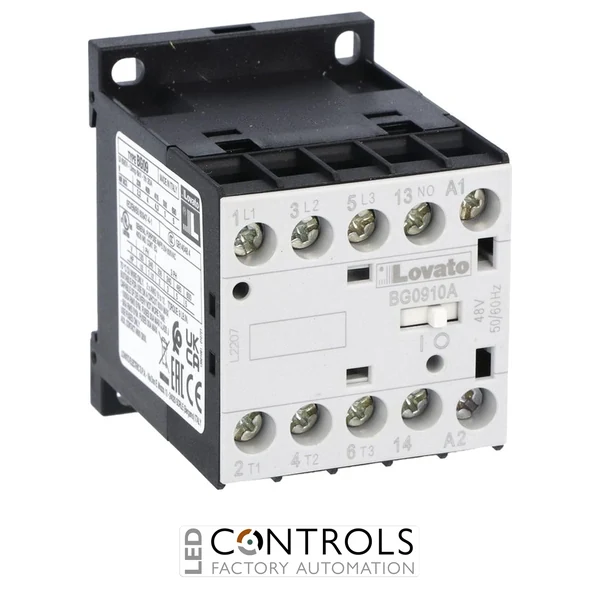

Lovato 11BG0910A024 is a three-pole 9 A AC-3 power contactor with a 24 V AC 50/60 Hz coil, a 4 kW rating at 400 V and one normally open auxiliary contact.
£43.85
The Lovato 11BG0910A024 is a compact and reliable three-pole power contactor designed for switching electric motors and other electrical loads in industrial machinery and automation systems. As part of the Lovato BG09 contactor series, it provides dependable electromechanical control in a space-saving format suitable for modern control panels.
This contactor features a 24 V AC, 50/60 Hz control coil and one integrated normally open auxiliary contact. Its three main poles provide an IEC AC-3 operational current rating of 9 A, while screw or 35 mm DIN-rail mounting enables straightforward installation in motor-control assemblies and electrical cabinets.
With an AC-3 operational power rating of 4 kW at 400 V and a conventional free-air thermal current of 20 A at up to 40 °C, the 11BG0910A024 is suitable for controlling pumps, fans, conveyors, compressors and production machinery. Its power terminals provide IP20 protection when properly wired.
Power contactors such as the Lovato 11BG0910A024 use an electromagnetic coil to open and close their main contacts remotely. This enables motors and other electrical loads to be controlled through automation equipment, pushbuttons, relays and motor-starter circuits.
The BG09 design supports frequent industrial switching, while its integrated normally open auxiliary contact can provide signalling, electrical interlocking or control feedback. Its compact construction and dual mounting options help simplify integration into new machinery and replacement control-panel applications.
| Manufacturer | Lovato Electric |
|---|---|
| Series | BG09 |
| Model | 11BG0910A024 |
| Product type | Power contactor |
| Number of poles | 3 |
| Rated operational current, AC-3 | 9 A at up to 440 V and 55 °C |
| Rated operational power, AC-3 | 4 kW at 400 V |
| Conventional free-air thermal current | 20 A at up to 40 °C |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Coil type | AC, 50/60 Hz |
| Rated control voltage | 24 V AC |
| Coil consumption at 50 Hz | 30 VA inrush, 4 VA holding |
| Built-in auxiliary contact | 1NO |
| Operational frequency | 25–400 Hz |
| Protection rating | IP20 at power terminals when properly wired |
| Mounting type | Screw or 35 mm DIN rail |
| Mechanical life | 20,000,000 cycles |
| Electrical life | 500,000 cycles |
| Operating temperature | −50 to +70 °C |
| Maximum operating altitude | 3,000 m |
| Weight | 178 g |
This three-pole contactor is used to switch electric motors and other electrical loads in industrial machinery, motor starters and automation panels.
The contactor has an IEC AC-3 operational power rating of 4 kW at 400 V.
The 11BG0910A024 uses a 24 V AC control coil operating at 50/60 Hz.
Yes. It includes one integrated normally open auxiliary contact for signalling, interlocking or control functions.
The contactor can be secured with screws or mounted on a standard 35 mm DIN rail inside an electrical control panel.
Lovato BG contactors provide compact, reliable switching for motor-control panels, industrial machinery and automated equipment, with practical mounting options and integrated auxiliary-contact functionality.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG0910A024 Three-Pole Power Contactor 9 A 24 V AC", "sku": "11BG0910A024", "mpn": "11BG0910A024", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Power Contactors", "description": "Lovato 11BG0910A024 is a three-pole 9 A AC-3 power contactor with a 24 V AC 50/60 Hz coil, a 4 kW rating at 400 V and one normally open auxiliary contact.", "additionalProperty": [ { "@type": "PropertyValue", "name": "AC-3 operational current", "value": "9 A" }, { "@type": "PropertyValue", "name": "AC-3 operational power", "value": "4 kW at 400 V" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "24 V AC, 50/60 Hz" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NO" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG0910A024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "This three-pole contactor is used to switch electric motors and other electrical loads in industrial machinery, motor starters and automation panels." } }, { "@type": "Question", "name": "What motor power can this contactor control?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has an IEC AC-3 operational power rating of 4 kW at 400 V." } }, { "@type": "Question", "name": "What coil voltage does the 11BG0910A024 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BG0910A024 uses a 24 V AC control coil operating at 50/60 Hz." } }, { "@type": "Question", "name": "Does this contactor include an auxiliary contact?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. It includes one integrated normally open auxiliary contact for signalling, interlocking or control functions." } }, { "@type": "Question", "name": "How is the Lovato 11BG0910A024 mounted?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor can be secured with screws or mounted on a standard 35 mm DIN rail inside an electrical control panel." } } ] }
