11BG0910A46060 – 3P MINICONTACTOR BG09.10A 460V 60HZ

Q: What coil voltage does this contactor require?

The contactor operates with a 460V AC 60Hz coil supply.

Q: Does this contactor include auxiliary contacts?

Yes, the device includes an integrated 1NO auxiliary contact for additional monitoring and control functions.

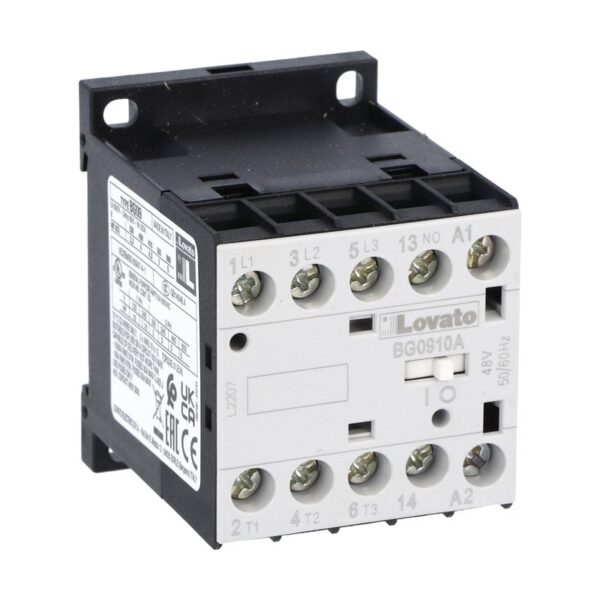

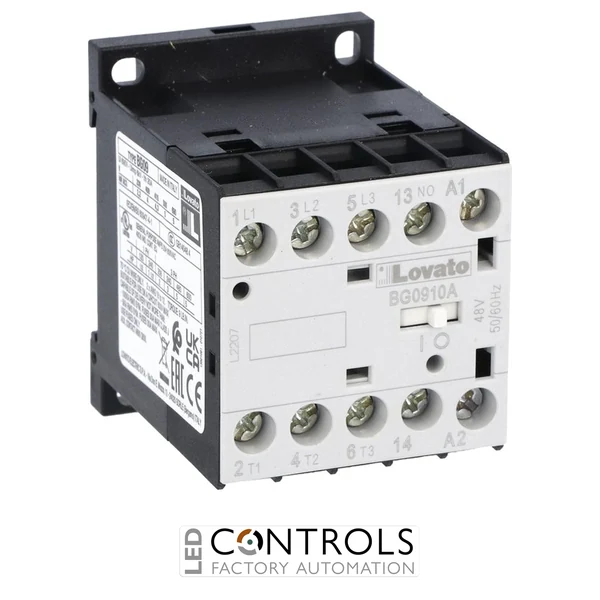

Lovato 11BG0910A46060 three-pole mini contactor with 460 V AC 60 Hz coil, 9 A AC3 operational current and integrated 1 NO auxiliary contact for industrial automation and motor control systems.

SKU: 11BG0910A46060Alt SKU: BG0910A46060MPN: 11BG0910A46060

List Price £43.85 ex VAT

Your Price (ex VAT)

£43.85

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £43.85

Trade pricing is personalised to your account

Manufacturer Lead Time

£43.85

Why Choose the Lovato 11BG0910A46060 Mini Contactor?

The Lovato 11BG0910A46060 is a compact and reliable three-pole power contactor designed for switching and controlling three-phase motors and industrial electrical loads. Part of the Lovato BG contactor series, this device provides dependable performance for automation systems, electrical control panels and industrial machinery applications.

Featuring a 460V AC 60Hz coil, 9A IEC AC-3 operating current and an integrated 1NO auxiliary contact, the 11BG0910A46060 provides flexible control and monitoring capability. Its compact design enables efficient installation in space-limited electrical cabinets while maintaining reliable switching performance in demanding industrial environments.

The Lovato 11BG0910A46060 is suitable for motor starters, automation equipment, pumps, fans, compressors and OEM machinery. With screw terminals and compatibility with 35mm DIN rail mounting, installation is straightforward for panel builders and maintenance engineers.

Key Advantages

Compact three-pole contactor for industrial switching applications.
9A AC-3 rated operating current for motor control systems.
460V AC 60Hz coil voltage suitable for industrial control circuits.
Integrated 1NO auxiliary contact for signalling and control functions.
Flexible screw terminal and DIN rail mounting options.
Reliable switching performance for automation and machinery applications.

Key Features

Lovato BG series mini contactor.
Three main power poles.
9A IEC AC-3 rated current at 400V.
4.0kW motor switching capability at 400V AC-3.
460V AC 60Hz operating coil.
Integrated 1NO auxiliary contact.
Screw terminal connections.
35mm DIN rail mounting capability.

Reliable Switching for Industrial Automation

Contactors such as the Lovato 11BG0910A46060 provide safe and efficient electrical switching for motors and industrial equipment. They allow automation systems to control higher-power loads using low-power control signals, improving operational safety and system efficiency.

The Lovato BG series is designed for modern industrial applications where compact dimensions, dependable switching performance and simple installation are essential. The integrated auxiliary contact supports interlocking, feedback and additional control circuit requirements.

Typical Applications

Industrial motor starters and control panels.
Automation machinery and production equipment.
Pumps, fans and compressor systems.
Material handling and conveyor systems.
OEM machine control assemblies.
Industrial electrical switching applications.

Technical Specifications

Coil Voltage Range	460–500 V
Current	9 A
Power	4 kW
Voltage	460 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Three-pole mini contactor
Number of poles	3
Auxiliary contacts	1 NO
Operational current AC3	9 A
Motor power at 400 V AC	4 kW
Rated insulation voltage	690 V
Control coil voltage	460 V AC 60 Hz
Rated current AC1	20 A
UL/CSA horsepower rating at 480 V	5 HP
Mounting type	DIN rail 35 mm / screw mounting
Terminal type	Screw terminals
Width	approx. 45 mm
Height	approx. 60 mm
Depth	approx. 60 mm
Weight	approx. 178 g
Protection degree	IP20
Operating temperature	approx. -40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975149065
Poles	3-pole
Device Type	Mini contactor
Auxiliary Contacts	1NO
Coil Type	AC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BG0910A46060 used for?

The Lovato 11BG0910A46060 is a three-pole contactor used for switching and controlling motors and industrial electrical loads in automation systems.

What coil voltage does this contactor require?

The contactor operates with a 460V AC 60Hz coil supply.

What is the rated current of the Lovato 11BG0910A46060?

The contactor has an IEC AC-3 operating current rating of 9A at 400V.

Does this contactor include auxiliary contacts?

Yes, the device includes an integrated 1NO auxiliary contact for additional monitoring and control functions.

How is the Lovato 11BG0910A46060 mounted?

The contactor can be mounted using screw terminals or installed on a standard 35mm DIN rail.

Trusted by Industrial Automation Professionals

Lovato BG series contactors are widely used in industrial control systems to provide dependable motor switching, efficient automation control and reliable electrical performance.

Coil Voltage Range	460–500 V
Current	9 A
Power	4 kW
Voltage	460 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Three-pole mini contactor
Number of poles	3
Auxiliary contacts	1 NO
Operational current AC3	9 A
Motor power at 400 V AC	4 kW
Rated insulation voltage	690 V
Control coil voltage	460 V AC 60 Hz
Rated current AC1	20 A
UL/CSA horsepower rating at 480 V	5 HP
Mounting type	DIN rail 35 mm / screw mounting
Terminal type	Screw terminals
Width	approx. 45 mm
Height	approx. 60 mm
Depth	approx. 60 mm
Weight	approx. 178 g
Protection degree	IP20
Operating temperature	approx. -40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1
EAN	8013975149065
Poles	3-pole
Device Type	Mini contactor
Auxiliary Contacts	1NO
Coil Type	AC
Current AC-1	20 A
