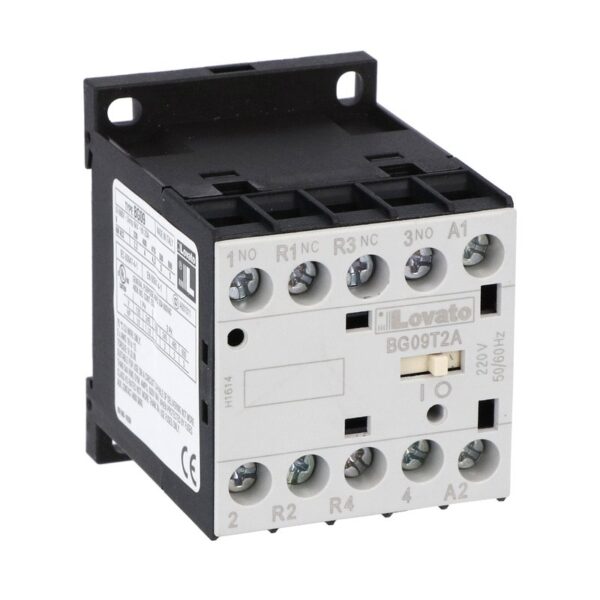

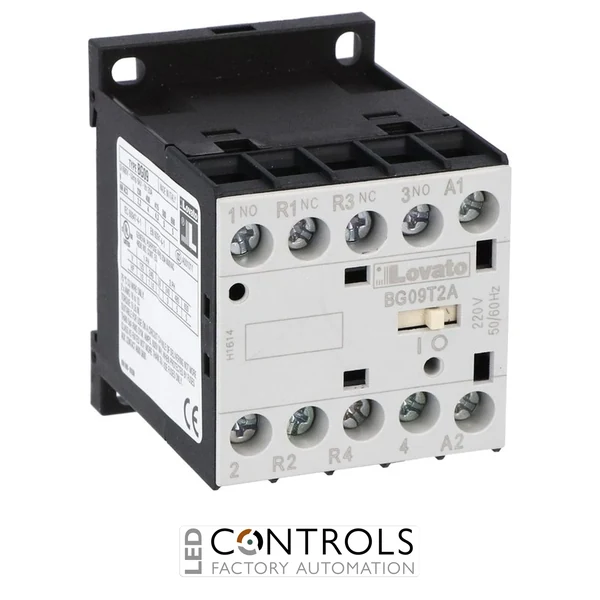

Lovato 11BG09T2A048 four-pole mini contactor with 48 V AC 50/60 Hz coil, 2NO + 2NC contact configuration and 9 A AC3 operational current for industrial automation and switching systems.
£55.04
The Lovato 11BG09T2A048 is a compact and reliable four-pole electromagnetic contactor designed for industrial switching, motor control and automation applications. Part of the Lovato BG series contactors, this device provides dependable electrical switching performance for control panels, machinery and low-voltage industrial systems.
Featuring a 48V AC coil, a 4-pole configuration and a contact arrangement of 2 normally open (NO) and 2 normally closed (NC) contacts, the 11BG09T2A048 offers flexible switching options for industrial control circuits. Its compact design allows easy integration into electrical cabinets using screw terminals or 35mm DIN rail mounting.
With an IEC AC-1 current rating of 20A and an AC-3 operational current rating of 9A at 400V, the Lovato BG09 contactor is suitable for controlling motors and electrical loads in a wide range of industrial and commercial applications.
Contactors such as the Lovato 11BG09T2A048 provide reliable remote switching of motors, lighting circuits and industrial loads. By using an electromagnetic coil mechanism, the contactor enables efficient control of high-power circuits through lower-power control signals.
The BG series is engineered for industrial automation applications where durability, compact dimensions and dependable operation are essential. Its robust construction and flexible mounting options make it suitable for use in machine control panels and electrical distribution systems.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 48 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Four-pole mini contactor |
| Number of poles | 4 |
| Contact configuration | 2NO + 2NC |
| Operational current AC3 | 9 A |
| Thermal current AC1 | 20 A |
| Motor power at 400 V AC | 4 kW |
| UL/CSA horsepower rating at 480 V | 5 HP |
| Rated insulation voltage | 690 V |
| Control coil voltage | 48 V AC 50/60 Hz |
| Mounting type | DIN rail 35 mm / screw mounting |
| Terminal type | Screw terminals |
| Width | 44 mm |
| Height | 58 mm |
| Depth | 57 mm |
| Weight | approx. 180 g |
| Protection degree | IP20 |
| Operating temperature | -40 °C to +60 °C |
| Mechanical life | up to 20 million operations |
| Electrical life | up to 500,000 operations |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| EAN | 8013975082157 |
The Lovato 11BG09T2A048 is a four-pole contactor used for switching motors and electrical loads in industrial automation and control systems.
This contactor uses a 48V AC coil operating at 50/60Hz.
The Lovato 11BG09T2A048 features a four-pole configuration with 2NO and 2NC contacts.
The contactor supports up to 20A AC-1 operational current and 9A AC-3 motor current at 400V.
The unit can be installed using screw mounting or 35mm DIN rail mounting inside electrical control cabinets.
Lovato BG series contactors are widely used by engineers and machine builders requiring dependable switching performance, compact installation and reliable operation in industrial control applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG09T2A048 Four Pole Contactor 48V AC Coil", "sku": "11BG09T2A048", "mpn": "11BG09T2A048", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Contactors", "description": "Lovato 11BG09T2A048 four pole contactor with 48V AC coil, 2NO and 2NC contacts, designed for industrial motor control and automation applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "48V AC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "2NO + 2NC" }, { "@type": "PropertyValue", "name": "AC-1 current", "value": "20A" }, { "@type": "PropertyValue", "name": "AC-3 current", "value": "9A at 400V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG09T2A048 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG09T2A048 is a four-pole contactor used for switching motors and electrical loads in industrial automation and control systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor uses a 48V AC coil operating at 50/60Hz." } }, { "@type": "Question", "name": "How many poles does the 11BG09T2A048 have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG09T2A048 features a four-pole configuration with 2NO and 2NC contacts." } }, { "@type": "Question", "name": "What current rating does this contactor support?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports up to 20A AC-1 operational current and 9A AC-3 motor current at 400V." } }, { "@type": "Question", "name": "How is this contactor mounted?", "acceptedAnswer": { "@type": "Answer", "text": "The unit can be installed using screw mounting or 35mm DIN rail mounting inside electrical control cabinets." } } ] }
