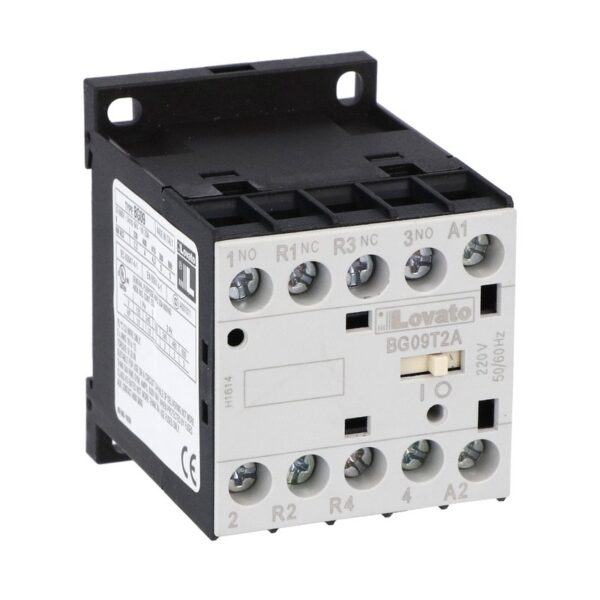

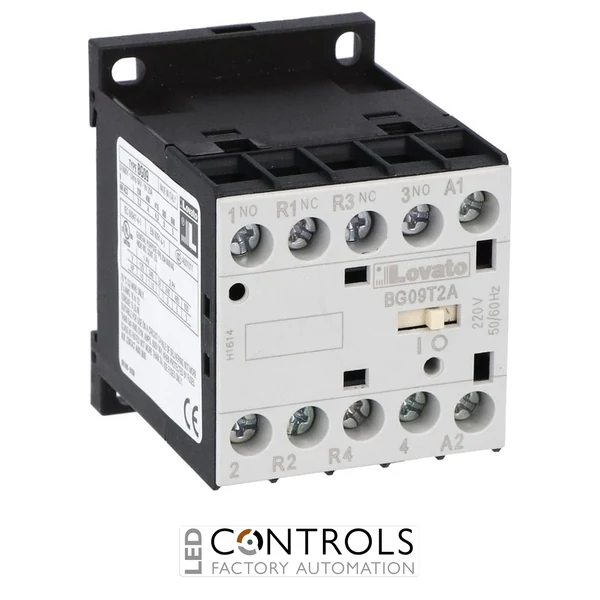

11BG09T2A22060 – 4P MINICONTACTOR BG09.T2A 220V 60HZ

Q: What coil voltage does this contactor require?

This contactor uses a 220V AC coil operating at 60Hz.

Q: How many poles does the 11BG09T2A22060 have?

The contactor features a four-pole configuration with 2NO and 2NC contacts.

Q: What current rating does this contactor support?

The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.

Q: How is this Lovato contactor mounted?

The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.

Lovato 11BG09T2A22060 four-pole mini contactor with 220 V AC 60 Hz coil, 2NO + 2NC contact configuration and 9 A AC3 operational current for industrial automation and switching systems.

SKU: 11BG09T2A22060Alt SKU: BG09T2A22060MPN: 11BG09T2A22060

List Price £55.04 ex VAT

Your Price (ex VAT)

£55.04

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £55.04

Trade pricing is personalised to your account

Manufacturer Lead Time

£55.04

Why Choose the Lovato 11BG09T2A22060 Contactor?

The Lovato 11BG09T2A22060 is a compact and reliable four-pole electromagnetic contactor designed for industrial motor switching, automation systems and electrical control applications. Part of the proven Lovato BG09 contactor series, it delivers dependable switching performance for control panels, machinery and industrial installations.

Featuring a 220V AC coil operating at 60Hz and a 4-pole contact configuration with 2 normally open (NO) and 2 normally closed (NC) contacts, the 11BG09T2A22060 provides flexible control options for industrial circuits. Its compact design allows easy integration into electrical cabinets with screw terminals and standard 35mm DIN rail mounting.

With an IEC AC-1 current rating of 20A and an AC-3 operational rating of 9A at 400V, the Lovato BG09 contactor is suitable for switching motors and industrial loads up to approximately 4.0kW at 400V AC-3.

Key Advantages

Compact Lovato BG09 series contactor for industrial automation.
220V AC 60Hz coil voltage suitable for industrial control systems.
Four-pole 2NO + 2NC configuration for versatile switching applications.
Supports motor loads up to 9A AC-3 at 400V.
Compatible with 35mm DIN rail and screw mounting.
Reliable mechanical and electrical performance for demanding environments.

Key Features

Lovato BG09 contactor series.
Four-pole electromagnetic contactor.
220V AC coil, 60Hz operation.
2 normally open + 2 normally closed contacts.
20A IEC AC-1 thermal current rating.
9A AC-3 motor switching current at 400V.
Screw terminal connection system.
35mm DIN rail mounting compatibility.
Designed for industrial motor and load switching.

Reliable Switching for Industrial Control Systems

The Lovato 11BG09T2A22060 provides efficient electromagnetic switching for industrial motors and electrical loads. Contactors enable remote control of high-power circuits through lower-power control signals, improving operational safety and system flexibility.

The Lovato BG09 series is designed for machine builders, automation engineers and panel manufacturers requiring compact dimensions, dependable switching performance and long service life in industrial applications.

Typical Applications

Industrial motor starters and control panels.
Automation machinery and production equipment.
Pumps, fans and HVAC control systems.
OEM machine building applications.
Industrial switching and load control systems.
Electrical distribution and automation cabinets.

Technical Specifications

Coil Voltage Range	200–250 V
Power	4 kW
Current	9 A
Voltage	220 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	2NO + 2NC
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Control coil voltage	220 V AC 60 Hz
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	45 mm
Height	60 mm
Depth	60 mm
Weight	approx. 186 g
Protection degree	IP20
Operating temperature	-40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975082232
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	AC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BG09T2A22060 used for?

The Lovato 11BG09T2A22060 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems.

What coil voltage does this contactor require?

This contactor uses a 220V AC coil operating at 60Hz.

How many poles does the 11BG09T2A22060 have?

The contactor features a four-pole configuration with 2NO and 2NC contacts.

What current rating does this contactor support?

The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.

How is this Lovato contactor mounted?

The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.

Trusted by Industrial Automation Professionals

Lovato BG series contactors are widely used by engineers and machine builders requiring compact design, reliable switching and consistent performance in industrial control applications.

Coil Voltage Range	200–250 V
Power	4 kW
Current	9 A
Voltage	220 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	2NO + 2NC
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Control coil voltage	220 V AC 60 Hz
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	45 mm
Height	60 mm
Depth	60 mm
Weight	approx. 186 g
Protection degree	IP20
Operating temperature	-40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975082232
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	AC
Current AC-1	20 A
