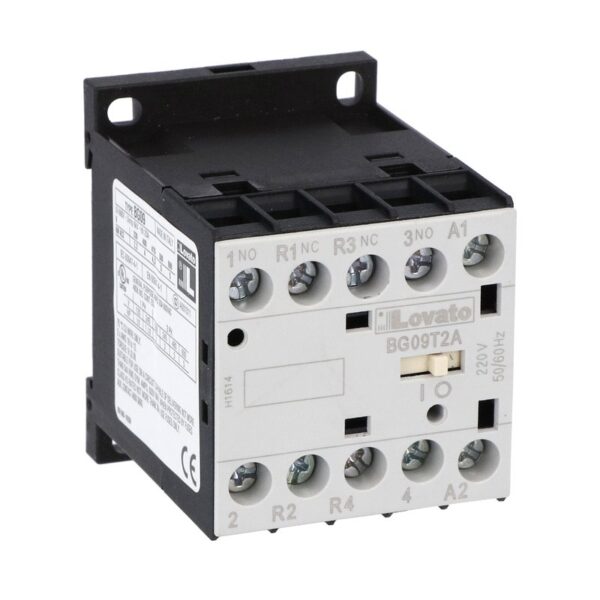

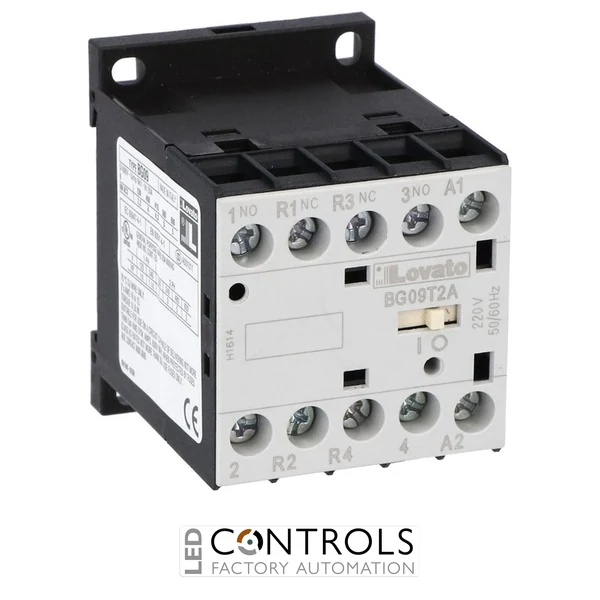

Lovato 11BG09T2A230 four-pole mini contactor with 230 V AC 50/60 Hz coil, 2NO + 2NC contact configuration and 9 A AC3 operational current for industrial automation and switching systems.
£55.04
The Lovato 11BG09T2A230 is a compact and reliable four-pole electromagnetic contactor designed for industrial motor control, automation equipment and electrical switching applications. As part of the proven Lovato BG09 contactor series, it provides dependable performance for control panels, machinery and industrial electrical systems.
Featuring a 230V AC coil operating at 50/60Hz and a 4-pole configuration with 2 normally open (NO) and 2 normally closed (NC) contacts, the 11BG09T2A230 offers flexible switching solutions for industrial control circuits. Its compact design allows efficient installation using screw terminals and standard 35mm DIN rail mounting.
With an IEC AC-1 current rating of 20A and an AC-3 operational rating of 9A at 400V, the Lovato 11BG09T2A230 is suitable for controlling motors and industrial loads up to 4.0kW at 400V AC-3.
The Lovato 11BG09T2A230 provides dependable electromagnetic switching for industrial motors and electrical loads. Contactors allow high-power circuits to be controlled through low-power signals, improving automation efficiency and operational safety.
The BG09 series is designed for machine builders, panel manufacturers and automation professionals requiring compact dimensions, reliable electrical performance and long service life in industrial environments.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 230 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Four-pole mini contactor |
| Number of poles | 4 |
| Contact configuration | 2NO + 2NC |
| Operational current AC3 | 9 A |
| Thermal current AC1 | 20 A |
| Motor power at 400 V AC | 4 kW |
| UL/CSA horsepower rating at 480 V | 5 HP |
| Rated insulation voltage | 690 V |
| Control coil voltage | 230 V AC 50/60 Hz |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Width | 45 mm |
| Height | 60 mm |
| Depth | 60 mm |
| Weight | approx. 182 g |
| Protection degree | IP20 |
| Operating temperature | -50 °C to +70 °C |
| Mechanical life | up to 20 million operations |
| Electrical life | up to 500,000 operations |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| EAN | 8013975081389 |
| HS Code | 85365080 |
The Lovato 11BG09T2A230 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems.
This contactor uses a 230V AC coil operating at 50/60Hz.
The contactor features a four-pole configuration with 2NO and 2NC contacts.
The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.
The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.
Lovato BG series contactors are widely used by engineers and machine builders requiring compact design, dependable switching performance and reliable operation in industrial control applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG09T2A230 Four Pole Contactor 230V AC Coil", "sku": "11BG09T2A230", "mpn": "11BG09T2A230", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Contactors", "description": "Lovato 11BG09T2A230 four pole contactor with 230V AC 50/60Hz coil, 2NO and 2NC contacts, designed for industrial motor control and automation applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "230V AC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "2NO + 2NC" }, { "@type": "PropertyValue", "name": "AC-1 current", "value": "20A" }, { "@type": "PropertyValue", "name": "AC-3 current", "value": "9A at 400V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG09T2A230 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG09T2A230 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor uses a 230V AC coil operating at 50/60Hz." } }, { "@type": "Question", "name": "How many poles does the 11BG09T2A230 have?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor features a four-pole configuration with 2NO and 2NC contacts." } }, { "@type": "Question", "name": "What current rating does this contactor support?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V." } }, { "@type": "Question", "name": "How is this Lovato contactor mounted?", "acceptedAnswer": { "@type": "Answer", "text": "The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets." } } ] }
