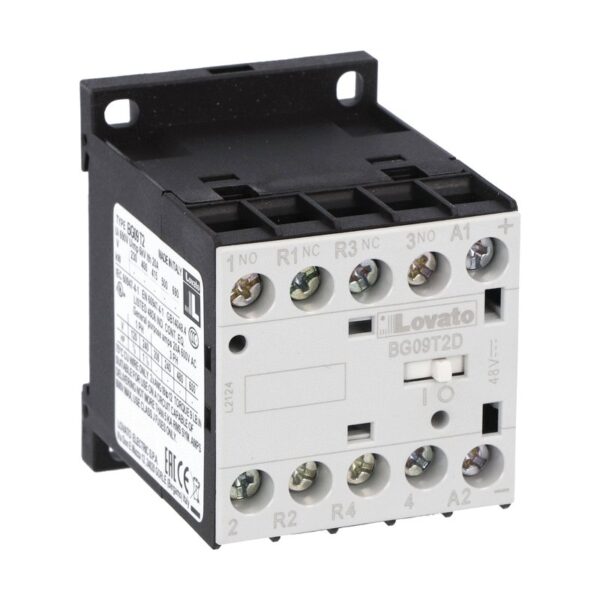

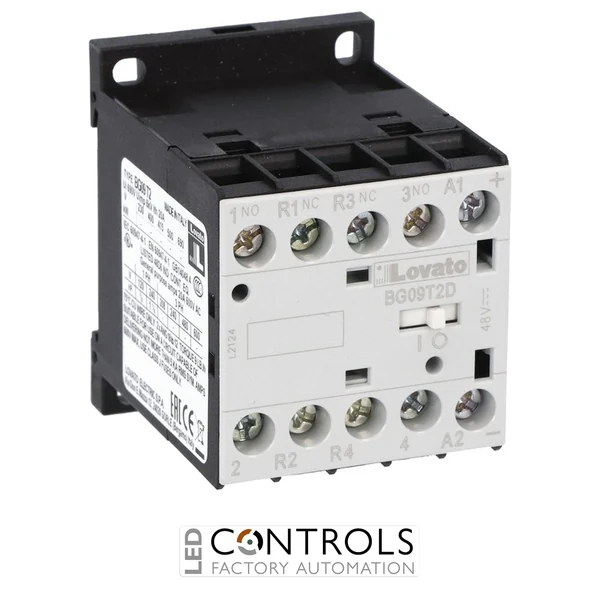

11BG09T2D060 – MINICONTACTOR 4P 2NO+2NC 20A DC COIL

Q: What coil voltage does this contactor require?

This contactor uses a 60V DC coil designed for industrial automation and control applications.

Q: How many poles does the 11BG09T2D060 have?

The contactor features a four-pole configuration with 2NO and 2NC contacts.

Q: What current rating does this contactor support?

The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.

Q: How is this Lovato contactor mounted?

The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.

Lovato 11BG09T2D060 four-pole mini contactor with 60 V DC coil, 2NO + 2NC contact configuration and 9 A AC3 operational current for industrial automation and switching systems.

SKU: 11BG09T2D060Alt SKU: BG09T2D060MPN: 11BG09T2D060

List Price £70.36 ex VAT

Your Price (ex VAT)

£70.36

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £70.36

Trade pricing is personalised to your account

Manufacturer Lead Time

£70.36

Why Choose the Lovato 11BG09T2D060 Contactor?

The Lovato 11BG09T2D060 is a compact and reliable four-pole electromagnetic contactor designed for industrial motor control, automation systems and electrical switching applications. Part of the proven Lovato BG09 contactor series, it provides dependable switching performance for control panels, machinery and industrial electrical installations.

Featuring a 60V DC coil and a 4-pole contact configuration with 2 normally open (NO) and 2 normally closed (NC) contacts, the 11BG09T2D060 provides flexible control options for industrial circuits. Its compact design enables easy installation using screw terminals and standard 35mm DIN rail mounting.

With an IEC AC-1 current rating of 20A and an AC-3 operational rating of 9A at 400V, the Lovato BG09 contactor is suitable for controlling motors and industrial loads up to approximately 4.0kW at 400V AC-3.

Key Advantages

Compact Lovato BG09 series contactor for industrial switching applications.
60V DC coil voltage suitable for automation and control systems.
Four-pole 2NO + 2NC contact arrangement for flexible circuit control.
Supports motor switching up to 9A AC-3 at 400V.
Compatible with 35mm DIN rail and screw mounting.
Reliable electrical and mechanical performance for industrial environments.

Key Features

Lovato BG09 contactor series.
Four-pole electromagnetic contactor.
60V DC coil operation.
2 normally open + 2 normally closed contacts.
20A IEC AC-1 thermal current rating.
9A AC-3 motor switching current at 400V.
Screw terminal connection system.
35mm DIN rail mounting compatibility.
Compact design for electrical cabinets and automation panels.

Reliable Switching for Industrial Control Systems

The Lovato 11BG09T2D060 provides dependable electromagnetic switching for industrial motors and electrical loads. Contactors allow high-power circuits to be controlled through lower-power control signals, improving system safety, automation efficiency and operational flexibility.

The Lovato BG09 series is designed for machine builders, automation engineers and panel manufacturers requiring compact dimensions, reliable switching performance and long service life in demanding industrial applications.

Typical Applications

Industrial motor starters and control panels.
Automation machinery and production equipment.
Pumps, fans and HVAC control systems.
OEM machine building applications.
Industrial switching and load management systems.
Electrical distribution and automation cabinets.

Technical Specifications

Coil Voltage Range	60–72 V
Power	4 kW
Current	9 A
Voltage	60 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	2NO + 2NC
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Control coil voltage	60 V DC
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	44 mm
Height	58 mm
Depth	60 mm
Weight	224 g
Protection degree	IP20
Operating temperature	-40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975081365
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	DC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BG09T2D060 used for?

The Lovato 11BG09T2D060 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems.

What coil voltage does this contactor require?

This contactor uses a 60V DC coil designed for industrial automation and control applications.

How many poles does the 11BG09T2D060 have?

The contactor features a four-pole configuration with 2NO and 2NC contacts.

What current rating does this contactor support?

The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.

How is this Lovato contactor mounted?

The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.

Trusted by Industrial Automation Professionals

Lovato BG series contactors are widely used by engineers and machine builders requiring compact design, dependable switching performance and reliable operation in industrial control applications.

Coil Voltage Range	60–72 V
Power	4 kW
Current	9 A
Voltage	60 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	2NO + 2NC
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Control coil voltage	60 V DC
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	44 mm
Height	58 mm
Depth	60 mm
Weight	224 g
Protection degree	IP20
Operating temperature	-40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975081365
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	DC
Current AC-1	20 A
