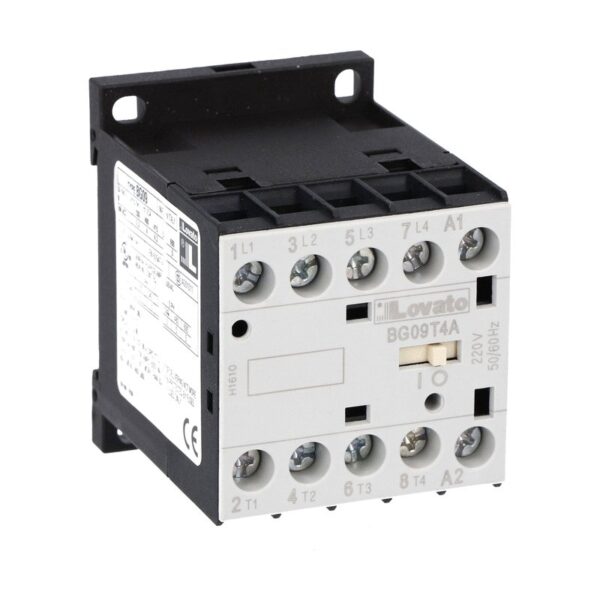

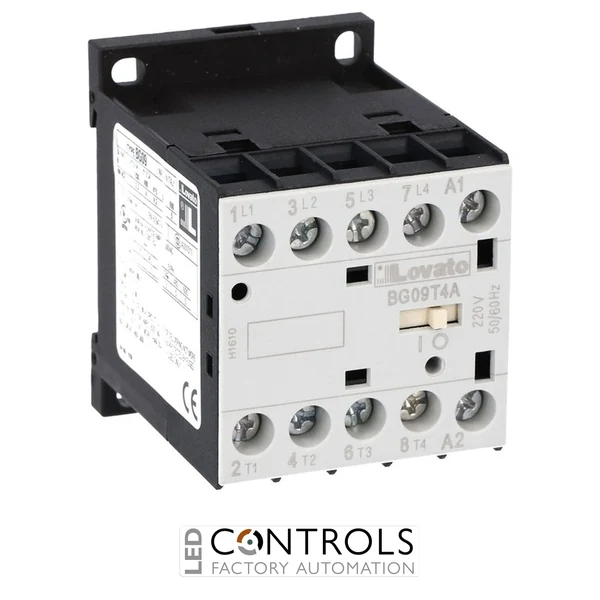

Lovato 11BG09T4A02460 four-pole mini contactor with 24 V AC 60 Hz coil, 4NO contact configuration and 9 A AC3 operational current for industrial automation and switching systems.
£51.90
The Lovato 11BG09T4A02460 is a compact and reliable four-pole electromagnetic contactor designed for industrial switching, motor control and automation applications. Part of the Lovato BG09 contactor series, this device provides dependable electrical performance for control panels, machinery and industrial electrical systems.
Featuring a 24V AC coil operating at 60Hz and a four normally open (4NO) pole configuration, the 11BG09T4A02460 provides efficient switching for industrial circuits where compact dimensions and reliable operation are required. Its space-saving design allows easy installation using screw terminals and standard 35mm DIN rail mounting.
With an IEC AC-1 current rating of 20A and an AC-3 operational rating of 9A at 400V, the Lovato BG09 contactor is suitable for controlling industrial motors and electrical loads up to approximately 4.0kW at 400V AC-3.
The Lovato 11BG09T4A02460 provides dependable electromagnetic switching for industrial motors and electrical loads. Contactors enable high-power circuits to be controlled through lower-power signals, improving automation efficiency and system safety.
The BG09 series is designed for machine builders, automation engineers and panel manufacturers requiring compact dimensions, reliable switching performance and long operational life in industrial environments.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 24 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Four-pole mini contactor |
| Number of poles | 4 |
| Contact configuration | 4NO |
| Operational current AC3 | 9 A |
| Thermal current AC1 | 20 A |
| Motor power at 400 V AC | 4 kW |
| UL/CSA horsepower rating at 480 V | 5 HP |
| Rated insulation voltage | 690 V |
| Control coil voltage | 24 V AC 60 Hz |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Width | 45 mm |
| Height | 60 mm |
| Depth | 60 mm |
| Weight | approx. 185 g |
| Protection degree | IP20 |
| Operating temperature | -40 °C to +60 °C |
| Mechanical life | up to 20 million operations |
| Electrical life | up to 500,000 operations |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| EAN | 8013975082324 |
| HS Code | 85365080 |
The Lovato 11BG09T4A02460 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems.
This contactor uses a 24V AC coil operating at 60Hz.
The contactor features a four-pole configuration with four normally open contacts.
The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.
The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.
Lovato BG series contactors are widely used by engineers and machine builders requiring compact design, dependable switching performance and reliable operation in industrial control applications.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG09T4A02460 Four Pole Contactor 24V AC Coil", "sku": "11BG09T4A02460", "mpn": "11BG09T4A02460", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Contactors", "description": "Lovato 11BG09T4A02460 four pole contactor with 24V AC 60Hz coil and four normally open contacts, designed for industrial motor control and automation applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "24V AC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "4" }, { "@type": "PropertyValue", "name": "Contact configuration", "value": "4NO" }, { "@type": "PropertyValue", "name": "AC-1 current", "value": "20A" }, { "@type": "PropertyValue", "name": "AC-3 current", "value": "9A at 400V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG09T4A02460 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG09T4A02460 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor uses a 24V AC coil operating at 60Hz." } }, { "@type": "Question", "name": "How many poles does the 11BG09T4A02460 have?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor features a four-pole configuration with four normally open contacts." } }, { "@type": "Question", "name": "What current rating does this contactor support?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V." } }, { "@type": "Question", "name": "How is this Lovato contactor mounted?", "acceptedAnswer": { "@type": "Answer", "text": "The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets." } } ] }
