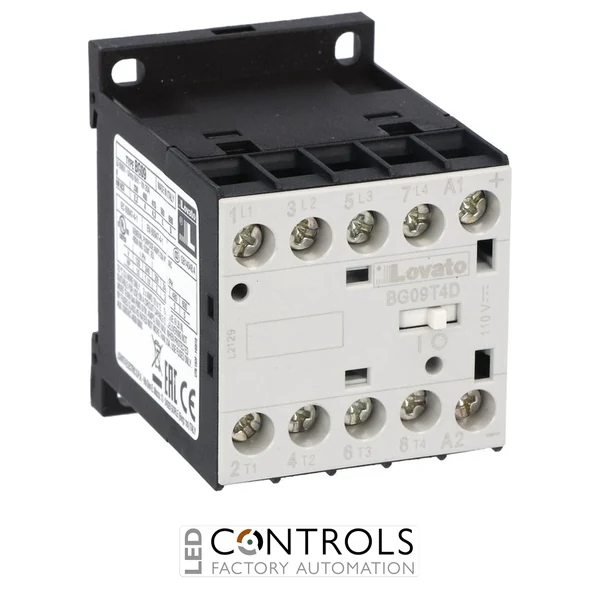

11BG09T4D012 – 4P MINICONTACTOR BG09.T4D 12VDC

Q: What coil voltage does this contactor require?

This contactor uses a 12V DC coil designed for industrial control applications.

Q: How many poles does the 11BG09T4D012 have?

The contactor features a four-pole configuration with four normally open contacts.

Q: What current rating does this contactor support?

The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.

Q: How is this Lovato contactor mounted?

The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.

Lovato 11BG09T4D012 four-pole mini contactor with 12 V DC coil, 4NO contact configuration and 9 A AC3 operational current for industrial automation and switching systems.

SKU: 11BG09T4D012Alt SKU: BG09T4D012MPN: 11BG09T4D012

List Price £69.00 ex VAT

Your Price (ex VAT)

£69.00

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £69.00

Trade pricing is personalised to your account

Manufacturer Lead Time

£69.00

Why Choose the Lovato 11BG09T4D012 Contactor?

The Lovato 11BG09T4D012 is a compact and reliable four-pole electromagnetic contactor designed for industrial switching, motor control and automation applications. Part of the trusted Lovato BG09 contactor series, it provides dependable electrical performance for control panels, machinery and industrial electrical systems.

Featuring a 12V DC coil and a 4 normally open (4NO) contact configuration, the 11BG09T4D012 provides efficient switching for industrial circuits where compact dimensions and reliable operation are required. Its space-saving design supports easy installation using screw terminals and standard 35mm DIN rail mounting.

With an IEC AC-1 current rating of 20A and an AC-3 operational rating of 9A at 400V, the Lovato BG09 contactor is suitable for controlling industrial motors and electrical loads.

Key Advantages

Compact Lovato BG09 series contactor for industrial automation applications.
12V DC coil voltage suitable for industrial control systems.
Four normally open contacts (4NO) for reliable switching applications.
Supports motor switching up to 9A AC-3 at 400V.
Compatible with 35mm DIN rail and screw mounting.
Designed for reliable operation in demanding electrical control environments.

Key Features

Lovato BG09 contactor series.
Four-pole electromagnetic contactor.
12V DC coil operation.
4 normally open (4NO) contacts.
20A IEC AC-1 thermal current rating.
9A AC-3 motor switching current at 400V.
Screw terminal connection system.
35mm DIN rail mounting compatibility.
Compact construction for electrical cabinets and automation panels.

Reliable Switching for Industrial Control Systems

The Lovato 11BG09T4D012 provides dependable electromagnetic switching for industrial motors and electrical loads. Contactors enable high-power circuits to be controlled through lower-power signals, improving automation efficiency and system safety.

The BG09 series is designed for machine builders, automation engineers and panel manufacturers requiring compact dimensions, reliable switching performance and long operational life in industrial environments.

Typical Applications

Industrial motor starters and control panels.
Automation machinery and production equipment.
Pumps, fans and HVAC control systems.
OEM machine building applications.
Industrial switching and load control systems.
Electrical distribution and automation cabinets.

Technical Specifications

Coil Voltage Range	12 V
Power	4 kW
Current	9 A
Voltage	12 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	4NO
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Control coil voltage	12 V DC
Operational frequency	25 Hz to 400 Hz
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	45 mm
Height	60 mm
Depth	60 mm
Weight	219 g
Protection degree	IP20
Operating temperature	-50 °C to +70 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975082751
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	DC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BG09T4D012 used for?

The Lovato 11BG09T4D012 is a four-pole contactor designed for switching motors and electrical loads in industrial automation and control systems.

What coil voltage does this contactor require?

This contactor uses a 12V DC coil designed for industrial control applications.

How many poles does the 11BG09T4D012 have?

The contactor features a four-pole configuration with four normally open contacts.

What current rating does this contactor support?

The contactor supports 20A AC-1 current and 9A AC-3 motor current at 400V.

How is this Lovato contactor mounted?

The unit can be installed using screw mounting or standard 35mm DIN rail mounting inside electrical control cabinets.

Trusted by Industrial Automation Professionals

Lovato BG series contactors are widely used by engineers and machine builders requiring compact design, dependable switching performance and reliable operation in industrial control applications.

Coil Voltage Range	12 V
Power	4 kW
Current	9 A
Voltage	12 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	4NO
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Control coil voltage	12 V DC
Operational frequency	25 Hz to 400 Hz
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	45 mm
Height	60 mm
Depth	60 mm
Weight	219 g
Protection degree	IP20
Operating temperature	-50 °C to +70 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975082751
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	DC
Current AC-1	20 A
