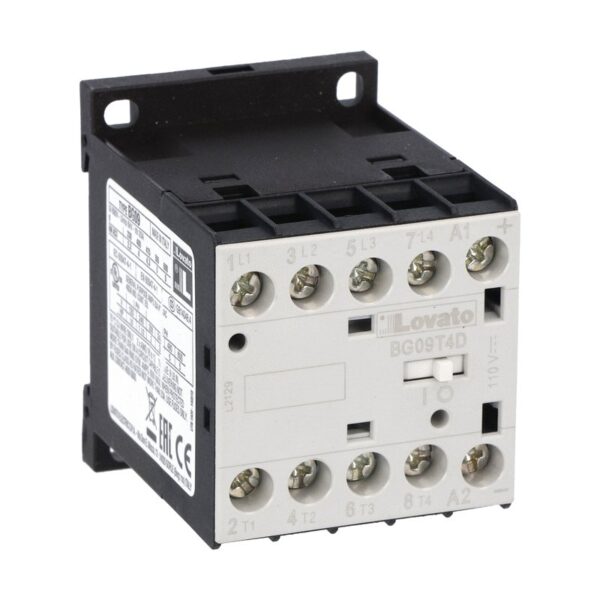

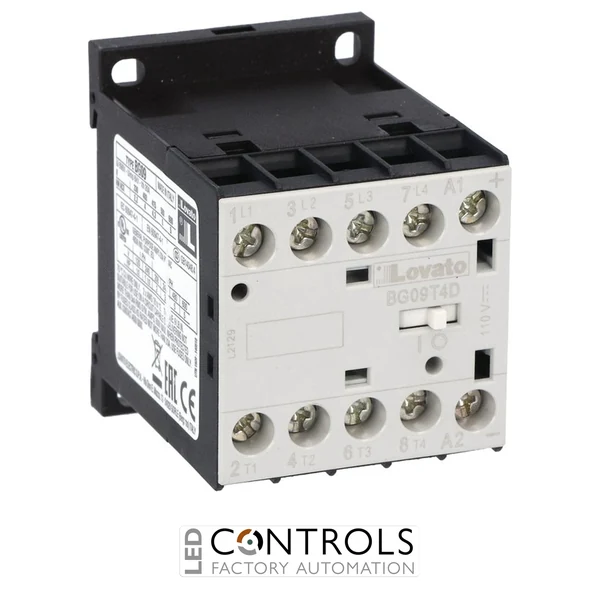

Lovato 11BG09T4D125 four-pole mini contactor with 125 V DC coil, 4NO contact configuration and 9 A AC3 operational current for industrial automation and switching systems.
£69.00
The Lovato 11BG09T4D125 is a compact and reliable four-pole power contactor designed for industrial switching and motor control applications. Part of the Lovato BG09 contactor series, this device provides dependable electrical control for automation systems, machinery, control panels and power distribution applications.
Featuring a 125 V DC coil and four normally open main contacts, the 11BG09T4D125 offers efficient switching performance in demanding industrial environments. Its compact design allows easy integration into electrical cabinets using screw terminals or 35 mm DIN rail mounting.
With an AC-3 rated operating current of 9 A at 400 V and a thermal current rating of 20 A, this Lovato contactor is suitable for controlling motors and electrical loads up to approximately 4 kW in AC-3 applications.
The Lovato 11BG09T4D125 contactor provides dependable switching of electrical loads in industrial control systems. Contactors are essential components for safely controlling motors, heating systems, lighting circuits and automation equipment by allowing remote electrical operation.
Designed for modern control panels, the BG09 series combines compact dimensions with strong electrical performance. Its DC coil operation makes it suitable for applications where reliable low-power control circuits are required.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 125 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Four-pole mini contactor |
| Number of poles | 4 |
| Contact configuration | 4NO |
| Type of coil | DC coil |
| Control coil voltage | 125 V DC |
| Operational current AC3 | 9 A |
| Thermal current AC1 | 20 A |
| Motor power at 400 V AC | 4 kW |
| UL/CSA horsepower rating at 480 V | 5 HP |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Width | 44 mm |
| Height | 58 mm |
| Depth | 60 mm |
| Weight | 224 g |
| Protection degree | IP20 |
| Operating temperature | -40 °C to +60 °C |
| Mechanical life | up to 20 million operations |
| Electrical life | up to 500,000 operations |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| EAN | 8013975082805 |
| HS Code | 85365080 |
The Lovato 11BG09T4D125 is a four-pole power contactor used for switching motors and electrical loads in industrial automation and control systems.
This contactor uses a 125 V DC coil for operation.
The contactor has four poles with four normally open main contacts.
The contactor is rated for approximately 4 kW at 400 V AC-3 motor applications.
Yes, the Lovato 11BG09T4D125 supports installation on a standard 35 mm DIN rail or by screw mounting.
