11BG09T4D220 – 4P MINICONTACTOR BG09.T4D 220V

Q: What coil voltage does this contactor require?

This contactor uses a 220 V DC coil for operation.

Q: How many poles does the Lovato 11BG09T4D220 have?

The contactor has four poles with four normally open contacts.

Q: What motor power can this contactor handle?

The contactor is rated for approximately 4 kW motor applications at 400 V AC-3.

Q: Can the Lovato 11BG09T4D220 be mounted on a DIN rail?

Yes, the contactor supports installation on a standard 35 mm DIN rail or through screw mounting.

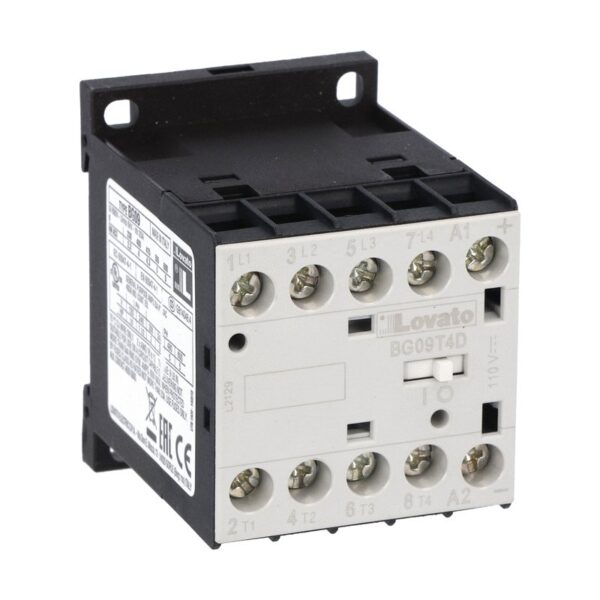

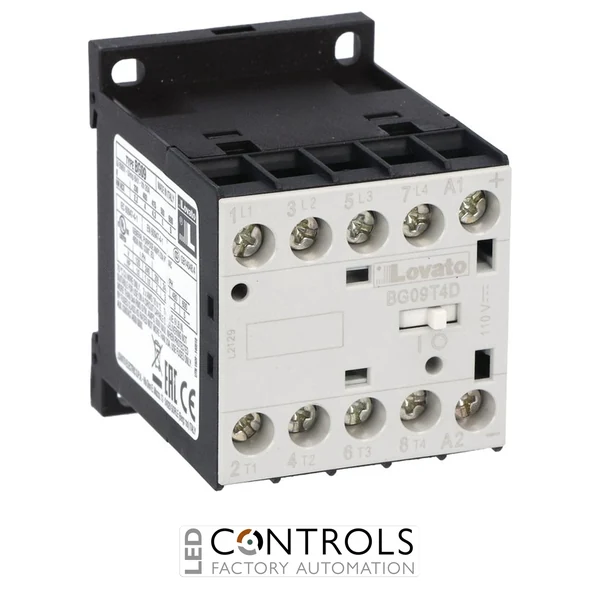

Lovato 11BG09T4D220 four-pole mini contactor with 220 V DC coil, 4NO contact configuration and 9 A AC3 operational current for industrial automation and switching systems.

SKU: 11BG09T4D220Alt SKU: BG09T4D220MPN: 11BG09T4D220

List Price £69.00 ex VAT

Your Price (ex VAT)

£69.00

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £69.00

Trade pricing is personalised to your account

Manufacturer Lead Time

£69.00

Why Choose the Lovato 11BG09T4D220 Contactor?

The Lovato 11BG09T4D220 is a compact and reliable four-pole power contactor designed for industrial switching, motor control and automation applications. Part of the Lovato BG09 contactor series, this contactor provides dependable electrical switching performance for machinery, control panels and industrial power systems.

Featuring a 220 V DC coil and four normally open main contacts, the 11BG09T4D220 delivers efficient control in demanding industrial environments. Its compact construction allows simple installation using screw terminals or standard 35 mm DIN rail mounting, making it suitable for modern electrical cabinets.

With a 20 A thermal current rating and an AC-3 operational current rating of 9 A at 400 V, this Lovato contactor is suitable for switching motors and electrical loads up to approximately 4 kW in industrial applications.

Key Advantages

Compact Lovato BG09 four-pole power contactor for industrial switching applications.
220 V DC coil voltage suitable for dedicated control circuits.
20 A thermal current rating for reliable electrical load management.
9 A AC-3 motor switching capacity at 400 V.
Flexible installation with DIN rail or screw mounting options.
High electrical and mechanical endurance for industrial automation systems.

Key Features

Lovato Electric BG09 contactor series.
Four-pole configuration.
4 normally open main contacts.
220 V DC operating coil.
20 A Ith conventional thermal current.
9 A AC-3 rated current at 400 V.
4 kW motor power rating at 400 V AC-3.
35 mm DIN rail compatible mounting.
Compact design for industrial control panels.

Reliable Switching for Industrial Automation

The Lovato 11BG09T4D220 contactor provides dependable switching of motors and electrical loads in industrial control systems. Contactors allow remote operation of electrical equipment while improving system safety, efficiency and automation capability.

Designed for control panels and machinery applications, the BG09 series combines compact dimensions with reliable switching performance. Its DC coil configuration makes it suitable for industrial systems requiring stable and efficient control operation.

Typical Applications

Industrial motor control panels.
Automation and machine control systems.
Pumps and ventilation equipment.
Manufacturing and processing machinery.
Electrical distribution systems.
OEM industrial control cabinets.

Technical Specifications

Coil Voltage Range	200–250 V
Power	4 kW
Current	9 A
Voltage	220 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	4NO
Type of coil	DC coil
Control coil voltage	220 V DC
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	44 mm
Height	58 mm
Depth	60 mm
Weight	225 g
Protection degree	IP20
Operating temperature	-40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975082812
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	DC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BG09T4D220 used for?

The Lovato 11BG09T4D220 is a four-pole power contactor used for switching motors and electrical loads in industrial automation and control systems.

What coil voltage does this contactor require?

This contactor uses a 220 V DC coil for operation.

How many poles does the Lovato 11BG09T4D220 have?

The contactor has four poles with four normally open contacts.

What motor power can this contactor handle?

The contactor is rated for approximately 4 kW motor applications at 400 V AC-3.

Can the Lovato 11BG09T4D220 be mounted on a DIN rail?

Yes, the contactor supports installation on a standard 35 mm DIN rail or through screw mounting.

Trusted for Industrial Control Applications

Lovato Electric BG series contactors are widely used by automation engineers and industrial manufacturers for reliable switching, efficient motor control and long-lasting performance in electrical systems.

Coil Voltage Range	200–250 V
Power	4 kW
Current	9 A
Voltage	220 V
Phase	Three Phase
Series	BG Mini Contactors
Product type	Four-pole mini contactor
Number of poles	4
Contact configuration	4NO
Type of coil	DC coil
Control coil voltage	220 V DC
Operational current AC3	9 A
Thermal current AC1	20 A
Motor power at 400 V AC	4 kW
UL/CSA horsepower rating at 480 V	5 HP
Rated insulation voltage	690 V
Rated impulse withstand voltage	6 kV
Mounting type	Screw mounting / DIN rail 35 mm
Terminal type	Screw terminals
Width	44 mm
Height	58 mm
Depth	60 mm
Weight	225 g
Protection degree	IP20
Operating temperature	-40 °C to +60 °C
Mechanical life	up to 20 million operations
Electrical life	up to 500,000 operations
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1
EAN	8013975082812
HS Code	85365080
Poles	4-pole
Device Type	Mini contactor
Coil Type	DC
Current AC-1	20 A
