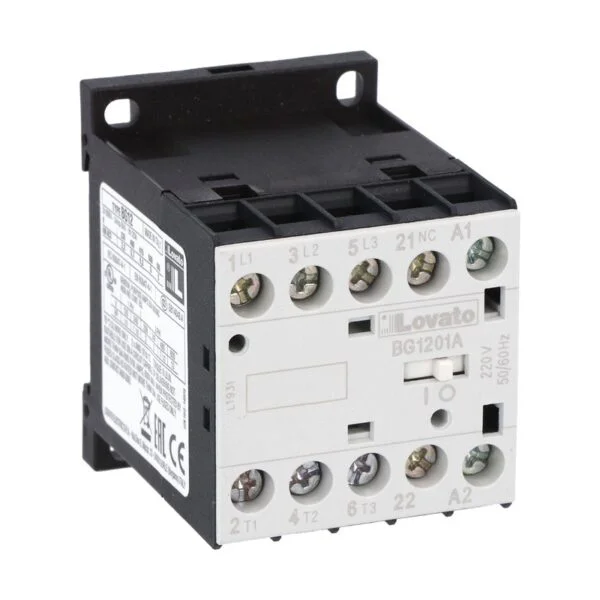

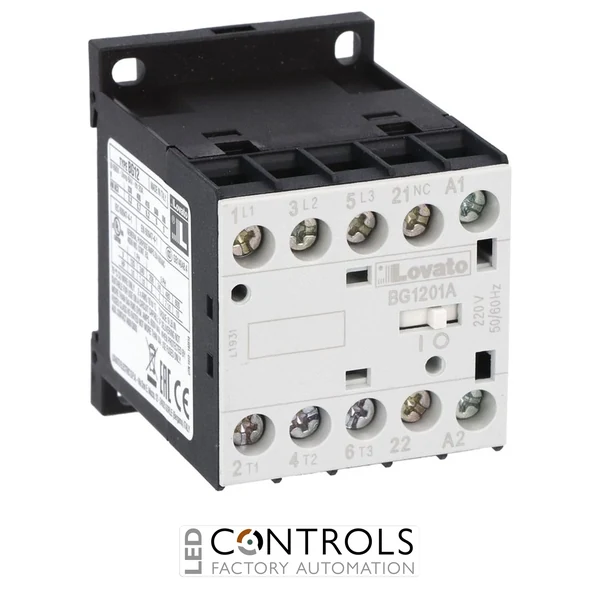

Lovato 11BG1201A048 three-pole mini contactor with 48 V AC coil, 3NO main contacts, 1NC auxiliary contact and 12 A AC3 operational current for industrial automation and motor control systems.
£51.17
The Lovato 11BG1201A048 is a compact and dependable three-pole power contactor designed for industrial motor switching, automation systems and electrical control applications. As part of the Lovato BG12 contactor series, it provides reliable switching performance for machinery, control panels and industrial installations.
Featuring a 48 V AC coil, three normally open main contacts and one integrated normally closed auxiliary contact, the 11BG1201A048 delivers flexible control and monitoring capabilities for modern automation environments. Its compact dimensions and DIN rail compatibility make it ideal for space-efficient electrical cabinets.
With an AC-3 rated operational current of 12 A at 400 V and a 5.7 kW motor switching capability, this Lovato contactor is suitable for controlling small industrial motors and electrical loads requiring reliable electromagnetic switching.
The Lovato 11BG1201A048 contactor provides efficient electromagnetic switching for motors and electrical loads in industrial control systems. Contactors allow safe remote control of equipment while supporting reliable automation operation.
The BG12 series combines compact construction with strong electrical performance, making it suitable for machine builders, OEM control panels and industrial automation engineers requiring dependable switching components.
| Power | 5.7 kW |
|---|---|
| Current | 12 A |
| Voltage | 48 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Three-pole mini contactor |
| Number of poles | 3 |
| Main contact configuration | 3NO |
| Built-in auxiliary contacts | 1NC |
| Mirror contact function | Yes |
| Type of coil | AC coil 50/60 Hz |
| Control coil voltage | 48 V AC |
| Operational current AC3 | 12 A |
| Thermal current AC1 | 20 A |
| Motor power at 400 V AC | 5.7 kW |
| UL/CSA horsepower rating at 480 V | 7.5 HP |
| Rated insulation voltage | 690 V |
| Rated impulse withstand voltage | 6 kV |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Terminal type | Screw terminals |
| Width | 45 mm |
| Height | 60 mm |
| Depth | 60 mm |
| Weight | 175 g |
| Protection degree | IP20 |
| Operating temperature | -40 °C to +60 °C |
| Mechanical life | up to 20 million operations |
| Electrical life | up to 500,000 operations |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1, IEC/EN 60335-2-89 |
| EAN | 8013975082256 |
| HS Code | 85365080 |
The Lovato 11BG1201A048 is a three-pole power contactor designed for switching motors and electrical loads in industrial automation and control systems.
This contactor uses a 48 V AC coil operating at 50/60 Hz.
The contactor has three main poles with three normally open contacts and one normally closed auxiliary contact.
The contactor supports motor applications up to approximately 5.7 kW at 400 V AC-3.
Yes, the contactor supports installation on a standard 35 mm DIN rail or by screw mounting.
Lovato Electric BG series contactors are widely used by automation engineers and industrial manufacturers for reliable switching, efficient motor control and long-lasting performance in electrical systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG1201A048 Three Pole Contactor 48V AC Coil", "sku": "11BG1201A048", "mpn": "11BG1201A048", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Contactors", "description": "Lovato 11BG1201A048 three-pole power contactor with 48V AC coil, 12A AC-3 rating, 5.7kW motor capacity and one NC auxiliary contact.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "48 V AC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Thermal current", "value": "20 A" }, { "@type": "PropertyValue", "name": "AC-3 current", "value": "12 A" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NC" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG1201A048 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG1201A048 is a three-pole power contactor designed for switching motors and electrical loads in industrial automation and control systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor uses a 48 V AC coil operating at 50/60 Hz." } }, { "@type": "Question", "name": "How many poles does the Lovato 11BG1201A048 have?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has three main poles with three normally open contacts and one normally closed auxiliary contact." } }, { "@type": "Question", "name": "What motor power can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports motor applications up to approximately 5.7 kW at 400 V AC-3." } }, { "@type": "Question", "name": "Can the Lovato 11BG1201A048 be mounted on a DIN rail?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the contactor supports installation on a standard 35 mm DIN rail or by screw mounting." } } ] }
