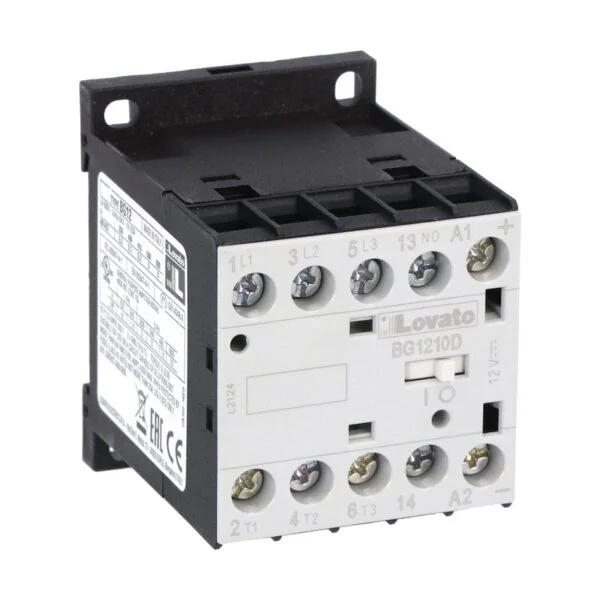

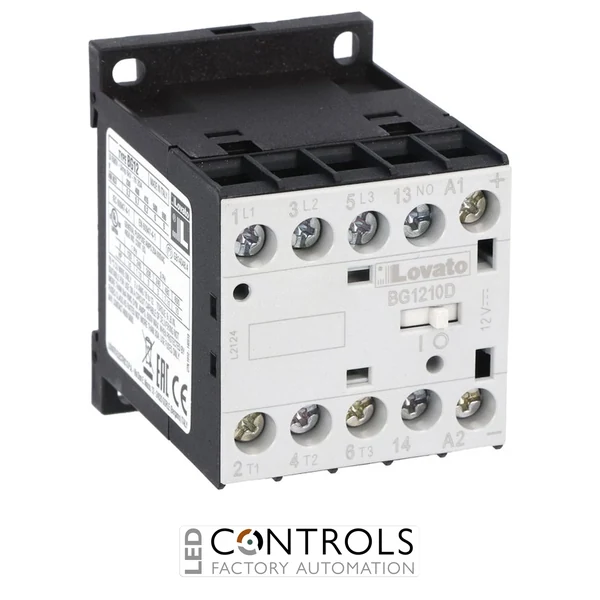

Lovato 11BG1210D060 three-pole mini contactor with 60 V DC coil, 12 A AC3 operational current and integrated 1NO auxiliary contact for industrial motor control applications.
£66.10
The Lovato 11BG1210D060 is a compact and reliable three-pole power contactor designed for industrial motor switching, automation systems and electrical control applications. As part of the Lovato BG12 contactor series, this contactor provides dependable switching performance for machinery, control panels and industrial installations.
Featuring a 60 V DC coil, three normally open main contacts and one normally open auxiliary contact, the 11BG1210D060 provides flexible control and feedback capability for modern automation systems. Its compact construction supports efficient installation using screw terminals or standard 35 mm DIN rail mounting.
With an AC-3 rated operational current of 12 A at 400 V, a 5.7 kW motor switching capacity and a 20 A thermal current rating, this Lovato contactor is suitable for controlling industrial motors and electrical loads requiring reliable electromagnetic switching.
The Lovato 11BG1210D060 contactor provides dependable electromagnetic switching for motors and electrical loads in industrial control systems. Contactors enable safe remote operation of equipment while improving automation efficiency and system reliability.
The BG12 series combines compact construction with strong electrical performance, making it suitable for machine builders, OEM control panels and industrial automation engineers requiring durable switching components.
| Power | 5.7 kW |
|---|---|
| Current | 12 A |
| Voltage | 60 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Mini Contactors |
| Product type | Three-pole mini contactor |
| Rated operational current (AC3) | 12 A |
| Rated thermal current (AC1) | 20 A |
| Rated motor power at 400 V | 5.7 kW |
| Rated insulation voltage | 690 V |
| Control coil voltage | 60 V DC |
| Number of poles | 3 |
| Auxiliary contacts | 1NO |
| Mounting type | DIN rail 35 mm / screw mounting |
| Terminal type | Screw terminals |
| Protection rating | IP20 when correctly installed |
| Operating temperature | approx. -40 to +60 °C |
| Dimensions (H × W × D) | approx. 58 × 44 × 57 mm |
| Weight | approx. 210 g |
| EAN | 8013975082928 |
The Lovato 11BG1210D060 is a three-pole power contactor designed for switching motors and electrical loads in industrial automation and control systems.
This contactor uses a 60 V DC coil for operation.
The contactor has three main poles with three normally open contacts and one normally open auxiliary contact.
The contactor supports motor applications up to approximately 5.7 kW at 400 V AC-3.
Yes, the contactor supports installation on a standard 35 mm DIN rail or by screw mounting.
Lovato Electric BG series contactors are widely used by automation engineers and industrial manufacturers for reliable switching, efficient motor control and long-lasting performance in electrical systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BG1210D060 Three Pole Contactor 60V DC Coil", "sku": "11BG1210D060", "mpn": "11BG1210D060", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Contactors", "description": "Lovato 11BG1210D060 three-pole power contactor with 60V DC coil, 12A AC-3 rating, 5.7kW motor capacity and one NO auxiliary contact.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "60 V DC" }, { "@type": "PropertyValue", "name": "Number of poles", "value": "3" }, { "@type": "PropertyValue", "name": "Thermal current", "value": "20 A" }, { "@type": "PropertyValue", "name": "AC-3 current", "value": "12 A" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NO" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BG1210D060 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BG1210D060 is a three-pole power contactor designed for switching motors and electrical loads in industrial automation and control systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor uses a 60 V DC coil for operation." } }, { "@type": "Question", "name": "How many poles does the Lovato 11BG1210D060 have?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor has three main poles with three normally open contacts and one normally open auxiliary contact." } }, { "@type": "Question", "name": "What motor power can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports motor applications up to approximately 5.7 kW at 400 V AC-3." } }, { "@type": "Question", "name": "Can the Lovato 11BG1210D060 be mounted on a DIN rail?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the contactor supports installation on a standard 35 mm DIN rail or by screw mounting." } } ] }
