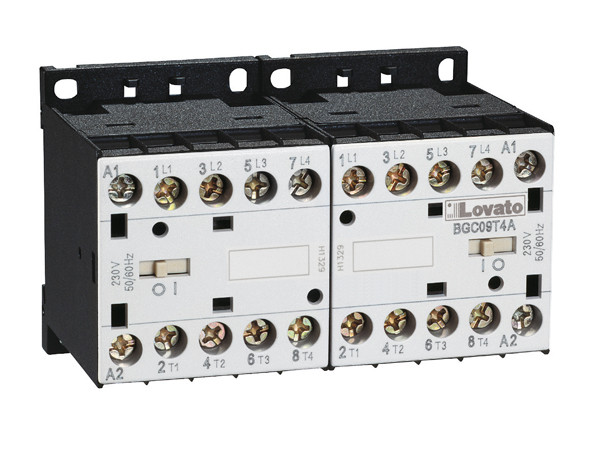

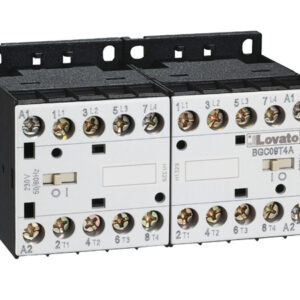

Lovato 11BGC09T4A024 is an open-frame changeover contactor assembly with a built-in interlock, 20 A AC-1 rating at 400 V and 24 V AC 50/60 Hz coil for industrial switching applications.
£200.01
The Lovato 11BGC09T4A024 is a compact and reliable changeover contactor assembly designed for electrically controlled changeover switching in industrial machinery, automation and electrical control panels. As part of the Lovato BGC09 contactor range, it combines two contactors with a built-in interlock to provide dependable interlocked switching in a ready-assembled open-frame configuration.
This changeover contactor assembly uses an AC-operated coil and incorporates a built-in interlock to prevent simultaneous operation of the contactors. Screw connections are provided for the main and control circuits, while DIN rail compatibility supports straightforward installation in industrial control panels and switchgear assemblies.
With a rated operational current of 20 A at AC-1, 400 V and a 24 V AC 50/60 Hz control supply, the 11BGC09T4A024 is suitable for changeover switching of AC loads. Its four normally open main contacts, IP20 protection and compact open-frame construction make it a practical choice for OEM machinery and industrial electrical systems.
Changeover contactor assemblies such as the Lovato 11BGC09T4A024 provide electrically controlled switching between circuits while using an interlock to prevent the two contactors from being operated simultaneously. This arrangement simplifies the construction of interlocked switching systems and provides a compact solution for industrial control-panel applications.
The BGC09 assembly combines a 24 V AC 50/60 Hz control supply with a 20 A AC-1 rating at 400 V. Its open-frame design, screw connections and DIN rail compatibility allow straightforward integration into OEM machinery, automation panels and other industrial electrical systems requiring interlocked changeover switching.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGC09 |
| Model | 11BGC09T4A024 |
| Product type | Changeover contactor assembly |
| Construction | Open frame with built-in interlock |
| Coil type | AC |
| Control supply voltage | 24 V AC |
| Control supply frequency | 50/60 Hz |
| Rated operational current Ie, AC-1 at 400 V | 20 A |
| Number of normally open main contacts | 4 |
| Main circuit connection | Screw connection |
| Control circuit connection | Screw connection |
| Protection rating | IP20 |
| Mounting | DIN rail compatible |
| Weight | 362 g |
| EAN | 8013975095386 |
The Lovato 11BGC09T4A024 is a changeover contactor assembly designed for electrically controlled, interlocked switching in industrial machinery and electrical control systems.
The assembly uses a 24 V AC 50/60 Hz coil.
The 11BGC09T4A024 has a rated operational current of 20 A at AC-1, 400 V.
Yes. The assembly is supplied with a built-in interlock for controlled changeover operation.
Yes. The 11BGC09T4A024 is suitable for DIN rail mounting in industrial electrical panels and control systems.
Lovato Electric BGC changeover contactor assemblies provide compact, interlocked switching for industrial control panels, machinery and automation systems requiring reliable AC load changeover operation.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGC09T4A024 Changeover Contactor Assembly 20 A 24 V AC", "sku": "11BGC09T4A024", "mpn": "11BGC09T4A024", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Changeover Contactors", "description": "Lovato 11BGC09T4A024 is an open-frame changeover contactor assembly with a built-in interlock, 20 A AC-1 rating at 400 V and 24 V AC 50/60 Hz coil for industrial switching applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated operational current AC-1 at 400 V", "value": "20 A" }, { "@type": "PropertyValue", "name": "Control supply voltage", "value": "24 V AC" }, { "@type": "PropertyValue", "name": "Control supply frequency", "value": "50/60 Hz" }, { "@type": "PropertyValue", "name": "Main contacts", "value": "4 NO" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGC09T4A024 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGC09T4A024 is a changeover contactor assembly designed for electrically controlled, interlocked switching in industrial machinery and electrical control systems." } }, { "@type": "Question", "name": "What coil voltage does the Lovato 11BGC09T4A024 require?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly uses a 24 V AC 50/60 Hz coil." } }, { "@type": "Question", "name": "What is the AC-1 current rating of the Lovato 11BGC09T4A024?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGC09T4A024 has a rated operational current of 20 A at AC-1, 400 V." } }, { "@type": "Question", "name": "Does the Lovato 11BGC09T4A024 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The assembly is supplied with a built-in interlock for controlled changeover operation." } }, { "@type": "Question", "name": "Can the Lovato 11BGC09T4A024 be mounted on a DIN rail?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The 11BGC09T4A024 is suitable for DIN rail mounting in industrial electrical panels and control systems." } } ] }
