Why Choose the Lovato 11BGC09T4D012 Changeover Contactor Assembly?

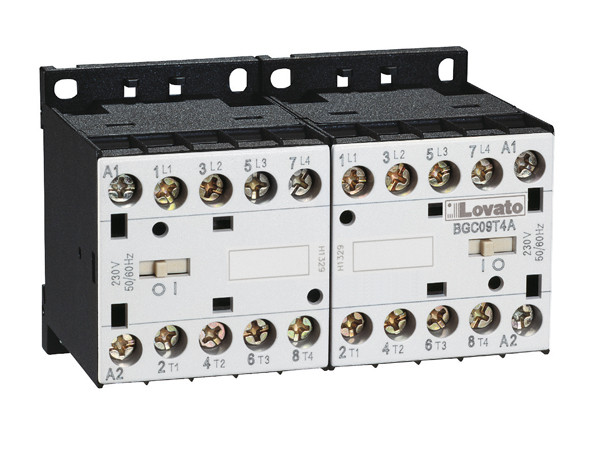

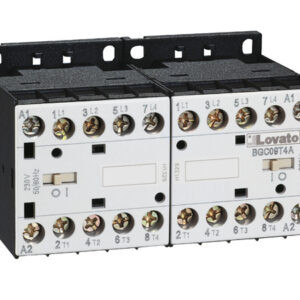

The Lovato 11BGC09T4D012 is a compact changeover contactor assembly designed for electrically controlled switching in industrial machinery, automation systems and electrical control panels. It is supplied as a complete assembly using two Lovato BG09 mini-contactors, each equipped with four main poles, providing a ready-to-install solution for interlocked changeover applications.
The 11BGC09T4D012 uses a DC-operated coil and incorporates a built-in interlock for controlled changeover operation. Its compact mini-contactor construction helps reduce panel space while providing a convenient assembled solution for OEM machinery and industrial control installations.
With a 12 V DC coil and an AC-1 operational current rating of up to 20 A, the 11BGC09T4D012 is suitable for industrial switching applications requiring low-voltage DC control. The assembly features clamp-screw terminals and weighs approximately 0.45 kg.
Key Advantages
- Complete changeover contactor assembly supplied ready for installation.
- Uses two BG09 mini-contactors with four main poles each.
- 12 V DC coil for low-voltage industrial control circuits.
- 20 A AC-1 operational current rating under specified operating conditions.
- Integrated built-in interlock for controlled changeover operation.
- Compact construction helps minimise space requirements inside control panels.
Key Features
- Lovato BGC09 changeover contactor assembly.
- 12 V DC control coil.
- Two BG09 mini-contactors.
- Four main poles per mini-contactor.
- 20 A AC-1 operational current at temperatures up to 40 °C.
- 18 A AC-1 operational current at temperatures up to 55 °C.
- 15 A AC-1 operational current at temperatures up to 60 °C.
- Built-in interlock.
- Clamp-screw terminals.
- Complete assembly for quick mounting.
Reliable Changeover Switching for Industrial Systems
Changeover contactor assemblies such as the Lovato 11BGC09T4D012 combine two electrically operated contactors into an interlocked assembly for controlled switching between circuits. The built-in interlock provides the changeover arrangement in a compact package, reducing the number of separate components required when constructing an industrial switching system.
The 11BGC09T4D012 combines two four-pole BG09 mini-contactors with a 12 V DC control coil and an AC-1 operational current rating of up to 20 A. Its compact construction and clamp-screw terminals make it suitable for integration into machinery, OEM equipment and industrial control panels.
Typical Applications
- Industrial changeover switching circuits.
- Electrical control panels and switchgear.
- Automation and production machinery.
- OEM electrical panel assemblies.
- Interlocked load switching systems.
- Industrial systems using 12 V DC control circuits.
