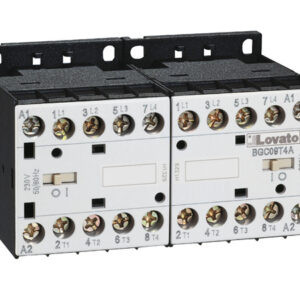

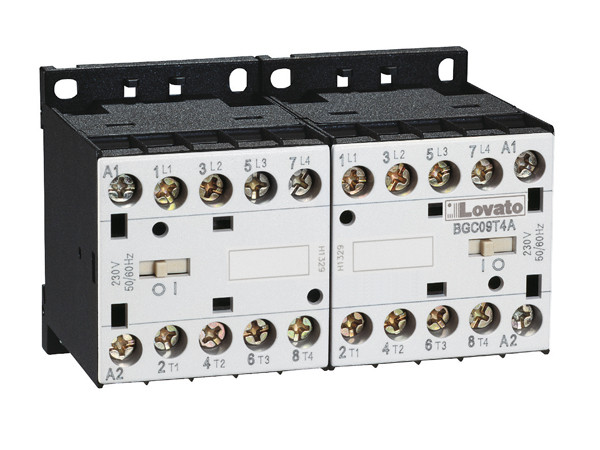

Lovato 11BGC09T4D048 is an open-frame BGC09 changeover contactor assembly with a built-in interlock, 20 A AC-1 rating at 400 V and a 48 V DC coil for industrial switching applications.
£248.88
The Lovato 11BGC09T4D048 is a compact and reliable changeover contactor assembly designed for electrically controlled switching in industrial machinery, automation systems and electrical control panels. As part of the Lovato BGC09 range, it combines a DC-operated contactor configuration with a built-in interlock for dependable changeover operation.
The 11BGC09T4D048 is supplied as an open-frame assembly with a built-in interlock, helping simplify the construction of interlocked switching circuits. Clamp-screw terminals provide secure electrical connections, while its compact dimensions support straightforward integration into industrial control panels and switchgear assemblies.
With a rated operational current of 20 A at AC-1, 400 V and a 48 V DC control supply, the 11BGC09T4D048 is suitable for industrial changeover applications requiring DC control. Its four normally open main contacts, IP20 protection and compact construction make it a practical choice for OEM machinery and automation equipment.
Changeover contactor assemblies such as the Lovato 11BGC09T4D048 provide electrically controlled switching while using a built-in interlock to provide controlled changeover operation. The ready-assembled configuration reduces the number of separate components required and provides a compact solution for industrial control-panel applications.
The BGC09 assembly combines a 48 V DC control supply with a 20 A AC-1 rating at 400 V. Its open-frame construction, clamp-screw terminals and compact dimensions allow straightforward integration into OEM machinery, automation panels and other industrial electrical systems requiring DC-controlled changeover switching.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGC09 |
| Model | 11BGC09T4D048 |
| Product type | Changeover contactor assembly |
| Construction | Open frame with built-in interlock |
| Coil type | DC |
| Control supply voltage | 48 V DC |
| Rated operational current Ie, AC-1 at 400 V | 20 A |
| Contact voltage | 690 V |
| Power rating | 22 kW |
| Number of normally open main contacts | 4 |
| Main circuit connection | Screw connection |
| Auxiliary and control circuit connection | Screw connection |
| Terminal type | Clamp screw |
| Protection rating | IP20 |
| Rail mounting | Yes |
| Dimensions (H × W × D) | 88 × 58 × 56 mm |
| Weight | 450 g |
| EAN | 8013975095553 |
| Country of origin | Italy |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 No. 14 |
The Lovato 11BGC09T4D048 is a changeover contactor assembly designed for electrically controlled, interlocked switching in industrial machinery and electrical control systems.
The assembly uses a 48 V DC coil.
The 11BGC09T4D048 has a rated operational current of 20 A at AC-1, 400 V.
Yes. The assembly is supplied with a built-in interlock for controlled changeover operation.
The 11BGC09T4D048 uses clamp-screw terminals for secure electrical connections in industrial control applications.
Lovato Electric BGC09 changeover contactor assemblies provide compact, interlocked switching for industrial control panels, machinery and automation systems requiring reliable DC-controlled changeover operation.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGC09T4D048 Changeover Contactor Assembly 20 A 48 V DC", "sku": "11BGC09T4D048", "mpn": "11BGC09T4D048", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Changeover Contactors", "description": "Lovato 11BGC09T4D048 is an open-frame BGC09 changeover contactor assembly with a built-in interlock, 20 A AC-1 rating at 400 V and a 48 V DC coil for industrial switching applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated operational current AC-1 at 400 V", "value": "20 A" }, { "@type": "PropertyValue", "name": "Control supply voltage", "value": "48 V DC" }, { "@type": "PropertyValue", "name": "Contact voltage", "value": "690 V" }, { "@type": "PropertyValue", "name": "Main contacts", "value": "4 NO" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP20" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGC09T4D048 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGC09T4D048 is a changeover contactor assembly designed for electrically controlled, interlocked switching in industrial machinery and electrical control systems." } }, { "@type": "Question", "name": "What coil voltage does the Lovato 11BGC09T4D048 require?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly uses a 48 V DC coil." } }, { "@type": "Question", "name": "What is the AC-1 current rating of the Lovato 11BGC09T4D048?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGC09T4D048 has a rated operational current of 20 A at AC-1, 400 V." } }, { "@type": "Question", "name": "Does the Lovato 11BGC09T4D048 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The assembly is supplied with a built-in interlock for controlled changeover operation." } }, { "@type": "Question", "name": "What terminals does the Lovato 11BGC09T4D048 use?", "acceptedAnswer": { "@type": "Answer", "text": "The 11BGC09T4D048 uses clamp-screw terminals for secure electrical connections in industrial control applications." } } ] }
