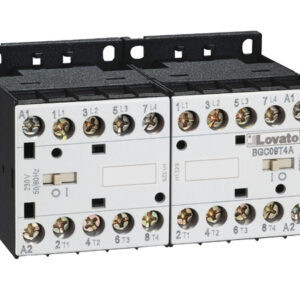

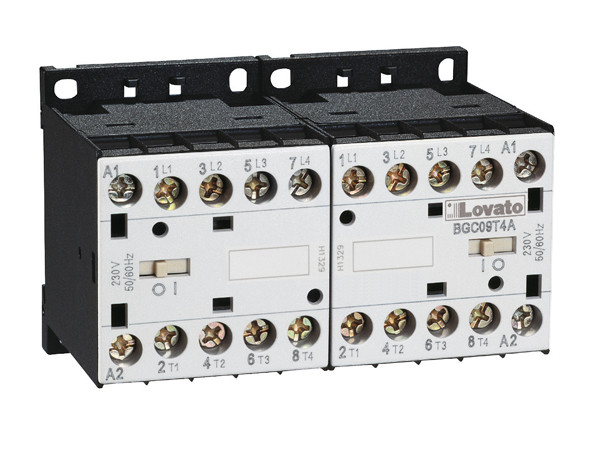

Lovato 11BGC09T4D060 is an open-frame changeover contactor assembly with a built-in interlock, 60 V DC coils and a 20 A AC-1 operational current rating at temperatures up to 40 °C.
£248.88
The Lovato 11BGC09T4D060 is an open-frame changeover contactor assembly designed for electrically switching between two circuits or supplies. It incorporates a built-in interlock and uses a 60 V DC control coil for integration with compatible industrial control systems.
The built-in interlock prevents both contactors from closing simultaneously, supporting controlled changeover operation. Supplied as a coordinated assembly, the 11BGC09T4D060 simplifies panel construction by providing the paired contactors and interlocking arrangement in one product.
With a maximum operating current of 20 A at voltages up to 440 V and an AC-1 operational current rating of 20 A at temperatures up to 40 °C, this assembly is suited to non-inductive or slightly inductive load-switching applications in industrial control panels and automation systems.
A changeover contactor assembly uses two coordinated contactors to select between separate circuits while preventing both switching paths from being engaged together. The built-in interlock in the Lovato 11BGC09T4D060 provides this mutual exclusion as part of the assembly.
The open-frame design is intended for installation within a suitable electrical enclosure. Its 60 V DC coils allow the assembly to be controlled by a compatible DC control circuit, while the AC-1 ratings define its capability for switching non-inductive or slightly inductive loads.
| HS code | 85365080 |
|---|---|
| Manufacturer | Lovato Electric |
| Series | BGC09 |
| Model | 11BGC09T4D060 |
| Product type | Changeover contactor assembly |
| Configuration | Open frame with built-in interlock only |
| Coil type | DC |
| Coil voltage | 60 V DC |
| Maximum operating current at up to 440 V | 20 A |
| AC-1 operational current at up to 40 °C | 20 A |
| AC-1 operational current at up to 55 °C | 18 A |
| AC-1 operational current at up to 60 °C | 15 A |
| AC-1 operational power at 230 V | 8 kW |
| AC-1 operational power at 400 V | 14 kW |
| AC-1 operational power at 500 V | 16 kW |
| AC-1 operational power at 690 V | 22 kW |
| UL/CSA general-use current | 20 A |
| Terminal type | Clamp screw |
| Weight | 450 g |
The Lovato 11BGC09T4D060 is used to provide controlled changeover between two circuits or supplies within a compatible industrial electrical system.
The assembly uses 60 V DC contactor coils.
Its AC-1 operational current is 20 A at ambient temperatures up to 40 °C, 18 A at up to 55 °C and 15 A at up to 60 °C.
Yes. The assembly includes a built-in interlock that prevents both contactors from closing simultaneously.
Its open-frame construction is intended for fixed installation inside a suitable electrical control panel or enclosure.
Lovato changeover contactor assemblies combine coordinated switching and mechanical interlocking in a compact product for dependable integration into industrial control panels, machinery and power-control systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGC09T4D060 Changeover Contactor Assembly 20 A 60 V DC", "sku": "11BGC09T4D060", "mpn": "11BGC09T4D060", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Changeover Contactor Assemblies", "description": "Lovato 11BGC09T4D060 is an open-frame changeover contactor assembly with a built-in interlock, 60 V DC coils and a 20 A AC-1 operational current rating at temperatures up to 40 °C.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "60 V DC" }, { "@type": "PropertyValue", "name": "AC-1 operational current at up to 40 °C", "value": "20 A" }, { "@type": "PropertyValue", "name": "Maximum operating current at up to 440 V", "value": "20 A" }, { "@type": "PropertyValue", "name": "Interlock", "value": "Built-in" }, { "@type": "PropertyValue", "name": "Configuration", "value": "Open frame" }, { "@type": "PropertyValue", "name": "Terminal type", "value": "Clamp screw" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGC09T4D060 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGC09T4D060 is used to provide controlled changeover between two circuits or supplies within a compatible industrial electrical system." } }, { "@type": "Question", "name": "What coil voltage does the 11BGC09T4D060 require?", "acceptedAnswer": { "@type": "Answer", "text": "The assembly uses 60 V DC contactor coils." } }, { "@type": "Question", "name": "What is the AC-1 current rating of this changeover assembly?", "acceptedAnswer": { "@type": "Answer", "text": "Its AC-1 operational current is 20 A at ambient temperatures up to 40 °C, 18 A at up to 55 °C and 15 A at up to 60 °C." } }, { "@type": "Question", "name": "Does the Lovato 11BGC09T4D060 include an interlock?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The assembly includes a built-in interlock that prevents both contactors from closing simultaneously." } }, { "@type": "Question", "name": "Where is the 11BGC09T4D060 installed?", "acceptedAnswer": { "@type": "Answer", "text": "Its open-frame construction is intended for fixed installation inside a suitable electrical control panel or enclosure." } } ] }
