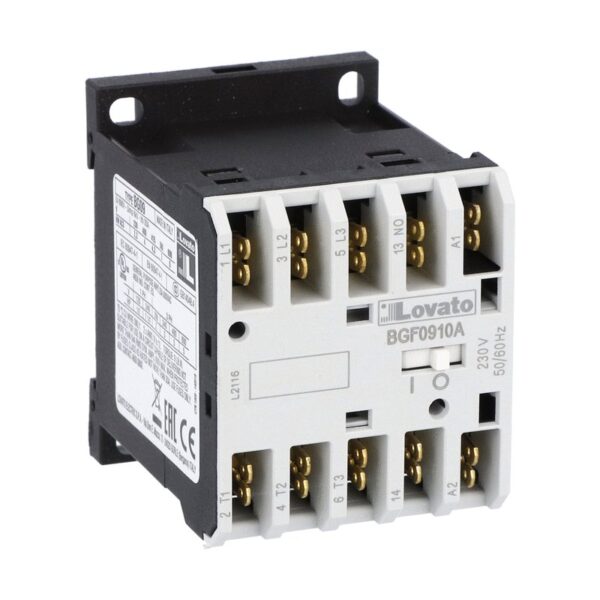

Lovato 11BGF0910D048 three-pole industrial mini contactor with 48 V DC coil, 9 A AC3 operational current, 1NO auxiliary contact and Faston terminals for industrial motor control applications.
£73.95
The Lovato 11BGF0910D048 is a compact and dependable three-pole mini contactor designed for industrial motor switching, automation panels and electrical control applications. Part of the Lovato BG contactor series, this contactor delivers reliable switching performance for AC motors and industrial loads where space efficiency and long operational life are essential.
Featuring a 48V DC coil, a 9A AC-3 rated operating current and an integrated 1NO auxiliary contact, the 11BGF0910D048 provides efficient control of motors, machines and automation equipment. Its compact design supports easy installation using DIN rail or screw mounting methods, making it suitable for modern electrical cabinets.
With three main poles, Faston terminals and compliance with international standards, the Lovato 11BGF0910D048 offers reliable switching, reduced panel space requirements and flexible integration into industrial control systems. It is widely used in motor starters, pumps, fans, machinery automation and OEM applications.
Contactors such as the Lovato 11BGF0910D048 provide electrically controlled switching of motors and industrial loads. By using a low-voltage DC control coil, automation systems can safely operate higher-power circuits while maintaining dependable machine performance.
The BG series is designed for applications requiring compact dimensions, high reliability and straightforward installation. Its integrated auxiliary contact allows easy connection with PLCs, control relays and industrial monitoring systems.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 48 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Series |
| Product type | Three-pole mini contactor |
| Number of poles | 3 |
| Type of main contacts | 3NO |
| Coil type | DC coil |
| Rated coil voltage | 48 V DC |
| IEC operational current AC3 | 9 A |
| Motor power at 400 V AC3 | 4 kW |
| Thermal current AC1 | 20 A |
| Auxiliary contacts | 1NO |
| Terminal type | Faston terminals |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Rated insulation voltage | 690 V |
| Horsepower rating at 480 V | 5 HP |
| Protection rating | IP20 when installed |
| Mechanical life | approx. 20 million operations |
| Electrical life | approx. 500,000 operations |
| Operating temperature | approx. -50 °C to +70 °C |
| Dimensions | approx. 58 × 44 × 57 mm |
| Weight | approx. 211 g |
| EAN | 8013975121368 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1 |
The Lovato 11BGF0910D048 is a three-pole contactor designed for switching motors and industrial electrical loads in automation and control applications.
The contactor operates with a 48V DC coil, making it suitable for industrial low-voltage control circuits.
The contactor supports motors rated at approximately 4.0 kW at 400V AC in AC-3 duty.
The Lovato 11BGF0910D048 includes one integrated normally open (1NO) auxiliary contact.
The device can be installed using 35mm DIN rail mounting or screw mounting inside electrical control cabinets.
Lovato BG series contactors are widely used in industrial automation and motor control systems where compact design, reliable switching and long service life are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGF0910D048 Three Pole Contactor 48V DC", "sku": "11BGF0910D048", "mpn": "11BGF0910D048", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Contactors", "description": "Lovato 11BGF0910D048 three-pole contactor with 48V DC coil, 9A AC-3 rating and 1NO auxiliary contact for industrial motor control and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "48V DC" }, { "@type": "PropertyValue", "name": "Poles", "value": "3" }, { "@type": "PropertyValue", "name": "Rated current", "value": "9A AC-3" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NO" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGF0910D048 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGF0910D048 is a three-pole contactor designed for switching motors and industrial electrical loads in automation and control applications." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor operates with a 48V DC coil, making it suitable for industrial low-voltage control circuits." } }, { "@type": "Question", "name": "What motor power can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports motors rated at approximately 4.0 kW at 400V AC in AC-3 duty." } }, { "@type": "Question", "name": "How many auxiliary contacts are included?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGF0910D048 includes one integrated normally open auxiliary contact." } }, { "@type": "Question", "name": "How is the contactor installed?", "acceptedAnswer": { "@type": "Answer", "text": "The device can be installed using 35mm DIN rail mounting or screw mounting inside electrical control cabinets." } } ] }
