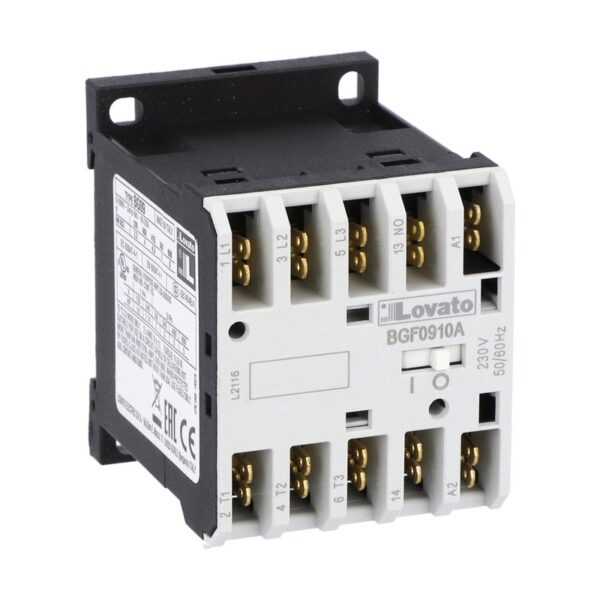

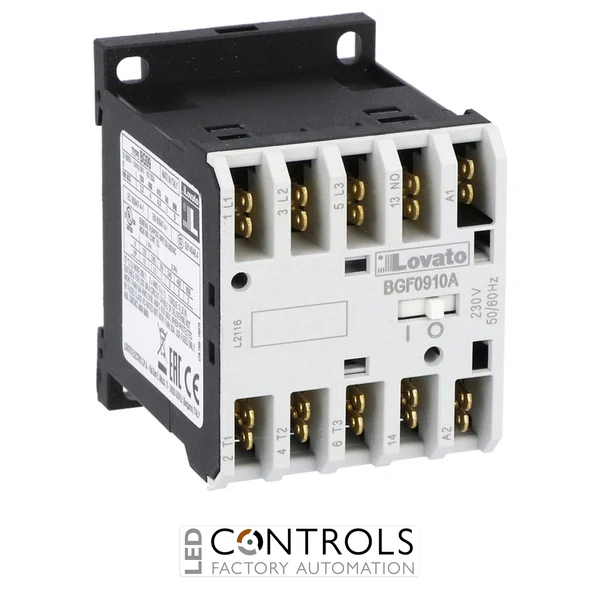

Lovato 11BGF0910L048 three-pole industrial mini contactor with 48 V DC low-consumption coil, 9 A AC3 operational current, 1NO auxiliary contact and Faston terminals for industrial motor control applications.
£79.21
The Lovato 11BGF0910L048 is a compact and efficient three-pole mini contactor designed for industrial motor switching, automation systems and electrical control panels. Part of the advanced Lovato BG contactor series, this device combines reliable switching performance with a low-consumption DC coil design, making it ideal for applications where energy efficiency, compact installation and dependable operation are required.
Featuring a 48V DC low-consumption coil, a 9A AC-3 rated operating current and an integrated 1NO auxiliary contact, the 11BGF0910L048 provides reliable control of motors, machinery and automation equipment. Its compact construction supports easy installation using DIN rail or screw mounting methods, making it suitable for modern electrical cabinets and OEM machine applications.
With three main poles, Faston terminals and compliance with international electrical standards, the Lovato 11BGF0910L048 delivers reliable switching, reduced control power consumption and flexible integration into industrial control systems. It is commonly used in motor starters, pumps, fans, conveyors and industrial automation equipment.
Contactors such as the Lovato 11BGF0910L048 provide electrically controlled switching of motors and industrial loads. The low-consumption DC coil reduces control power requirements while maintaining reliable operation in automation systems.
The BG series is designed for applications requiring compact dimensions, efficient operation and easy integration. Its auxiliary contact configuration allows connection with PLCs, control relays and industrial monitoring systems.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 48 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Series |
| Product type | Three-pole mini contactor |
| Number of poles | 3 |
| Type of main contacts | 3NO |
| Coil type | DC coil low consumption |
| Rated coil voltage | 48 V DC |
| IEC operational current AC3 | 9 A |
| Motor power at 400 V AC3 | 4 kW |
| Thermal current AC1 | 20 A |
| Auxiliary contacts | 1NO |
| Terminal type | Faston terminals |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Rated insulation voltage | 690 V |
| Horsepower rating at 480 V | 5 HP |
| Protection rating | IP20 when installed |
| Mechanical life | approx. 20 million operations |
| Electrical life | approx. 500,000 operations |
| Operating temperature | approx. -50 °C to +70 °C |
| Dimensions | approx. 58 × 44 × 57 mm |
| Weight | approx. 210 g |
| EAN | 8013975121429 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1 |
The Lovato 11BGF0910L048 is a three-pole contactor designed for switching motors and industrial electrical loads in automation and control applications.
The contactor operates with a 48V DC low-consumption coil, suitable for industrial automation control circuits.
The contactor supports motors rated at approximately 4.0 kW at 400V AC in AC-3 duty.
The Lovato 11BGF0910L048 includes one integrated normally open (1NO) auxiliary contact.
The device can be installed using 35mm DIN rail mounting or screw mounting inside electrical control cabinets.
Lovato BG series contactors are widely used in industrial automation and motor control systems where compact design, energy-efficient operation and reliable switching are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGF0910L048 Three Pole Contactor 48V DC Low Consumption", "sku": "11BGF0910L048", "mpn": "11BGF0910L048", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Contactors", "description": "Lovato 11BGF0910L048 three-pole contactor with 48V DC low-consumption coil, 9A AC-3 rating and 1NO auxiliary contact for industrial motor control and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "48V DC low consumption" }, { "@type": "PropertyValue", "name": "Poles", "value": "3" }, { "@type": "PropertyValue", "name": "Rated current", "value": "9A AC-3" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NO" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGF0910L048 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGF0910L048 is a three-pole contactor designed for switching motors and industrial electrical loads in automation and control applications." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor operates with a 48V DC low-consumption coil, suitable for industrial automation control circuits." } }, { "@type": "Question", "name": "What motor power can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports motors rated at approximately 4.0 kW at 400V AC in AC-3 duty." } }, { "@type": "Question", "name": "How many auxiliary contacts are included?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGF0910L048 includes one integrated normally open auxiliary contact." } }, { "@type": "Question", "name": "How is the contactor installed?", "acceptedAnswer": { "@type": "Answer", "text": "The device can be installed using 35mm DIN rail mounting or screw mounting inside electrical control cabinets." } } ] }
