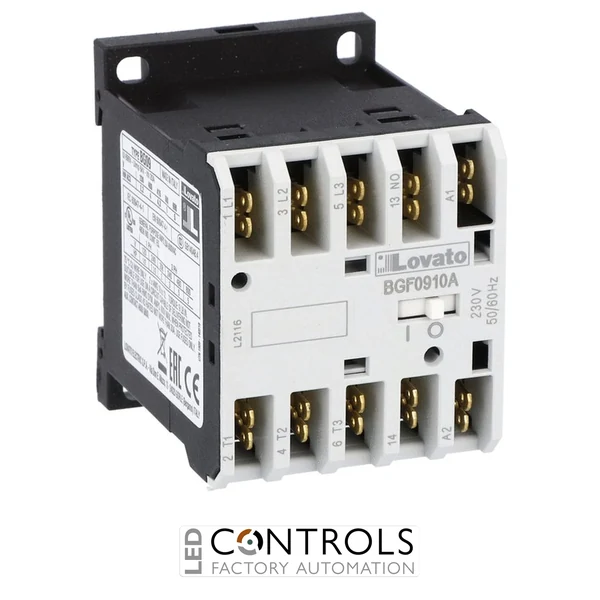

Lovato 11BGF09T4D220 four-pole industrial mini contactor with 220 V DC coil, 9 A AC3 operational current, 4NO contacts and Faston terminals for industrial automation and motor control applications.
£76.13
The Lovato 11BGF09T4D220 is a compact and reliable four-pole mini contactor designed for industrial switching, automation systems and electrical control panels. Part of the trusted Lovato BG contactor series, this device provides dependable switching performance for AC loads and motor control applications where compact dimensions, flexible switching and long operational life are required.
Featuring a 220V DC coil, a 9A AC-3 rated operating current and four main normally open contacts, the 11BGF09T4D220 is engineered for reliable control of motors, machinery and industrial automation equipment. Its compact construction supports easy installation using DIN rail or screw mounting methods, making it suitable for modern electrical cabinets.
With Faston terminals, four poles and compliance with international electrical standards, the Lovato 11BGF09T4D220 delivers dependable switching, flexible integration and efficient control for industrial machinery, pumps, fans and OEM automation systems.
Contactors such as the Lovato 11BGF09T4D220 provide electrically controlled switching of motors and industrial loads. By using a DC control coil, automation systems can safely operate electrical circuits while maintaining reliable machine performance.
The BG series is designed for applications requiring compact dimensions, reliable operation and simple installation. Its four-pole configuration allows flexible switching arrangements in industrial control and power distribution systems.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 220 V |
| Phase | Three Phase |
| IP Rating | IP20 |
| Series | BG Series |
| Product type | Four-pole mini contactor |
| Number of poles | 4 |
| Main contacts | 4NO |
| Coil type | DC coil |
| Rated coil voltage | 220 V DC |
| IEC operational current AC3 | 9 A |
| IEC thermal current AC1 | 20 A |
| Motor power at 400 V AC3 | 4 kW |
| Horsepower rating at 480 V | 5 HP |
| Terminal type | Faston terminals |
| Mounting type | Screw mounting / DIN rail 35 mm |
| Rated insulation voltage | 690 V |
| Protection rating | IP20 when installed |
| Mechanical life | approx. 20 million operations |
| Electrical life | approx. 500,000 operations |
| Operating temperature | approx. -50 °C to +70 °C |
| Dimensions | approx. 58 × 44 × 57 mm |
| Weight | approx. 220 g |
| EAN | 8013975121641 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1 |
The Lovato 11BGF09T4D220 is a four-pole contactor designed for switching motors and industrial electrical loads in automation and control applications.
The contactor operates with a 220V DC coil, suitable for industrial control circuits.
The contactor supports motors rated at approximately 4.0 kW at 400V AC in AC-3 duty.
The Lovato 11BGF09T4D220 features four main normally open poles for flexible switching applications.
The device can be installed using 35mm DIN rail mounting or screw mounting inside electrical control cabinets.
Lovato BG series contactors are widely used in industrial automation and motor control systems where compact design, reliable switching and long operational life are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGF09T4D220 Four Pole Contactor 220V DC", "sku": "11BGF09T4D220", "mpn": "11BGF09T4D220", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Contactors", "description": "Lovato 11BGF09T4D220 four-pole contactor with 220V DC coil, 9A AC-3 rating and Faston terminals for industrial motor control and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Coil voltage", "value": "220V DC" }, { "@type": "PropertyValue", "name": "Poles", "value": "4" }, { "@type": "PropertyValue", "name": "Rated current", "value": "9A AC-3" }, { "@type": "PropertyValue", "name": "Main contacts", "value": "4NO" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGF09T4D220 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGF09T4D220 is a four-pole contactor designed for switching motors and industrial electrical loads in automation and control applications." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor operates with a 220V DC coil, suitable for industrial control circuits." } }, { "@type": "Question", "name": "What motor power can this contactor handle?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports motors rated at approximately 4.0 kW at 400V AC in AC-3 duty." } }, { "@type": "Question", "name": "How many poles does this contactor have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGF09T4D220 features four main normally open poles for flexible switching applications." } }, { "@type": "Question", "name": "How is the contactor installed?", "acceptedAnswer": { "@type": "Answer", "text": "The device can be installed using 35mm DIN rail mounting or screw mounting inside electrical control cabinets." } } ] }
