11BGP0901A230 – 3P MINICONTACTOR 1NC 9A AC3 REAR PIN

Q: What coil voltage does this contactor require?

The contactor operates with a 230V AC 50/60Hz coil.

Q: What current rating does the contactor support?

The contactor supports an IEC AC-3 operating current of 9A and is suitable for motors up to approximately 4 kW at 400V AC.

Q: Does this contactor include auxiliary contacts?

Yes, the Lovato 11BGP0901A230 includes one built-in normally closed auxiliary contact.

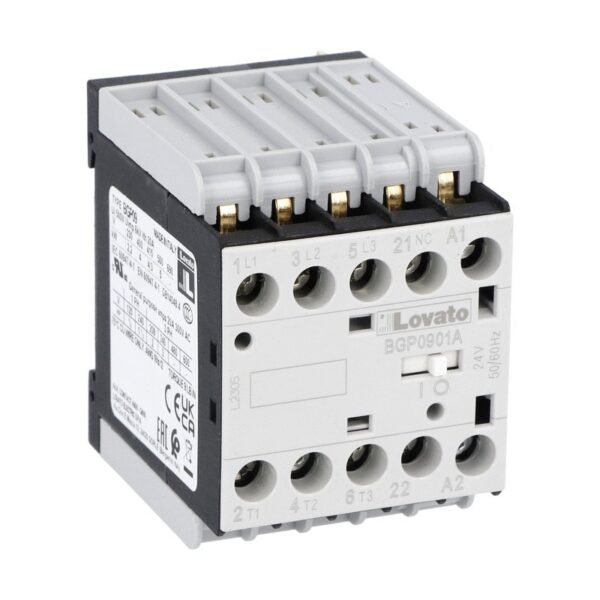

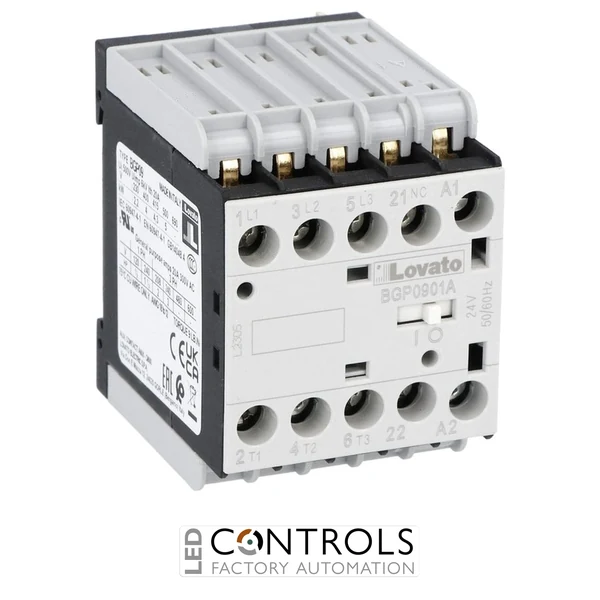

Lovato 11BGP0901A230 three-pole industrial mini contactor with 230 V AC coil, 9 A AC3 operational current, integrated 1NC auxiliary contact and rear PCB solder pin terminals for industrial automation and motor control applications.

SKU: 11BGP0901A230Alt SKU: BGP0901A230MPN: 11BGP0901A230

List Price £53.54 ex VAT

Your Price (ex VAT)

£53.54

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £53.54

Trade pricing is personalised to your account

Manufacturer Lead Time

£53.54

Why Choose the Lovato 11BGP0901A230 Mini Contactor?

The Lovato 11BGP0901A230 is a compact and reliable three-pole mini contactor designed for efficient switching and control of motors and electrical loads in industrial automation, machinery and electrical control systems. Part of the trusted Lovato BG series contactors, it delivers dependable performance where space-saving installation and reliable operation are required.

This contactor features a 230V AC 50/60Hz coil, three main power contacts and one normally closed auxiliary contact. Its compact design, high electrical endurance and flexible mounting options make it suitable for OEM machinery, automation panels and industrial switching applications.

With an IEC AC-3 operating current rating of 9A and suitability for motors up to approximately 4 kW at 400V AC, the Lovato 11BGP0901A230 is ideal for controlling small motors, pumps, fans, conveyors and industrial equipment requiring dependable AC switching performance.

Key Advantages

Compact three-pole mini contactor for industrial switching applications.
230V AC coil voltage suitable for common industrial control circuits.
9A AC-3 operating current rating for motor control applications.
Integrated 1NC auxiliary contact for control and signalling functions.
DIN rail and screw mounting compatibility for simple installation.
Reliable Lovato construction for automation and electrical control systems.

Key Features

Lovato BG series mini contactor.
Three main power poles.
230V AC 50/60Hz operating coil.
9A IEC AC-3 rated current at 400V AC.
20A IEC AC-1 thermal current rating.
One integrated normally closed auxiliary contact.
Rear PCB solder pin terminal connection.
Compatible with DIN rail 35 mm and screw mounting.

Reliable Switching for Industrial Control Systems

Mini contactors such as the Lovato 11BGP0901A230 provide dependable switching control for motors and electrical loads in industrial environments. They enable automation systems to safely manage equipment operation while maintaining a compact control panel footprint.

The Lovato BG series is designed for machine builders, OEM manufacturers and electrical engineers requiring reliable switching devices with easy installation, long service life and compatibility with modern industrial control systems.

Typical Applications

Industrial motor control panels.
Automation machinery and OEM equipment.
Pumps and ventilation systems.
Small conveyors and material handling equipment.
Machine tools and production systems.
Industrial electrical switching applications.

Technical Specifications

Coil Voltage Range	200–250 V
Power	4 kW
Current	9 A
Voltage	230 V
Phase	Three Phase
IP Rating	IP20
Series	BG Series
Product type	Three-pole mini contactor
Number of poles	3
Main contacts	3NO
Auxiliary contacts	1NC
Coil type	AC coil 50/60 Hz
Rated coil voltage	230 V AC
IEC operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC3	4 kW
Horsepower rating at 480 V	5 HP
Terminal type	Rear PCB solder pin
Mounting type	Screw mounting / DIN rail 35 mm
Rated insulation voltage	690 V
Protection rating	IP20 when installed
Operating frequency	50 / 60 Hz
Operating temperature	approx. -50 °C to +70 °C
Dimensions	approx. 58 × 44 × 57 mm
Weight	approx. 200 g
EAN	8013975144855
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1
Poles	3-pole
Coil / Supply Voltage	230 V AC
Device Type	Mini contactor
Auxiliary Contacts	1NC
Coil Type	AC
Current AC-1	20 A

Frequently Asked Questions

What is the Lovato 11BGP0901A230 used for?

The Lovato 11BGP0901A230 is a three-pole mini contactor used for switching and controlling motors and electrical loads in industrial automation systems.

What coil voltage does this contactor require?

The contactor operates with a 230V AC 50/60Hz coil.

What current rating does the contactor support?

The contactor supports an IEC AC-3 operating current of 9A and is suitable for motors up to approximately 4 kW at 400V AC.

Does this contactor include auxiliary contacts?

Yes, the Lovato 11BGP0901A230 includes one built-in normally closed auxiliary contact.

Where can this mini contactor be installed?

This contactor is designed for installation in electrical panels, automation cabinets and industrial control systems using DIN rail or screw mounting.

Trusted for Industrial Automation Applications

Lovato BG series contactors are widely used in industrial control systems to provide reliable switching, compact installation and dependable motor management solutions for automation engineers and machine builders.

Coil Voltage Range	200–250 V
Power	4 kW
Current	9 A
Voltage	230 V
Phase	Three Phase
IP Rating	IP20
Series	BG Series
Product type	Three-pole mini contactor
Number of poles	3
Main contacts	3NO
Auxiliary contacts	1NC
Coil type	AC coil 50/60 Hz
Rated coil voltage	230 V AC
IEC operational current AC3	9 A
IEC thermal current AC1	20 A
Motor power at 400 V AC3	4 kW
Horsepower rating at 480 V	5 HP
Terminal type	Rear PCB solder pin
Mounting type	Screw mounting / DIN rail 35 mm
Rated insulation voltage	690 V
Protection rating	IP20 when installed
Operating frequency	50 / 60 Hz
Operating temperature	approx. -50 °C to +70 °C
Dimensions	approx. 58 × 44 × 57 mm
Weight	approx. 200 g
EAN	8013975144855
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1
Poles	3-pole
Coil / Supply Voltage	230 V AC
Device Type	Mini contactor
Auxiliary Contacts	1NC
Coil Type	AC
Current AC-1	20 A
