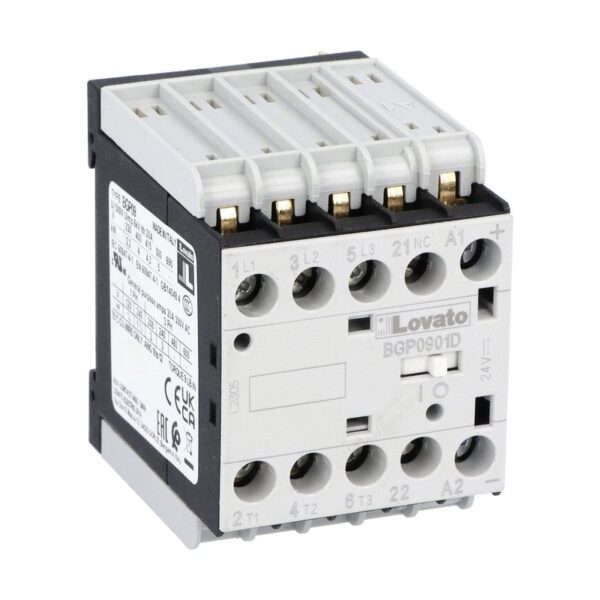

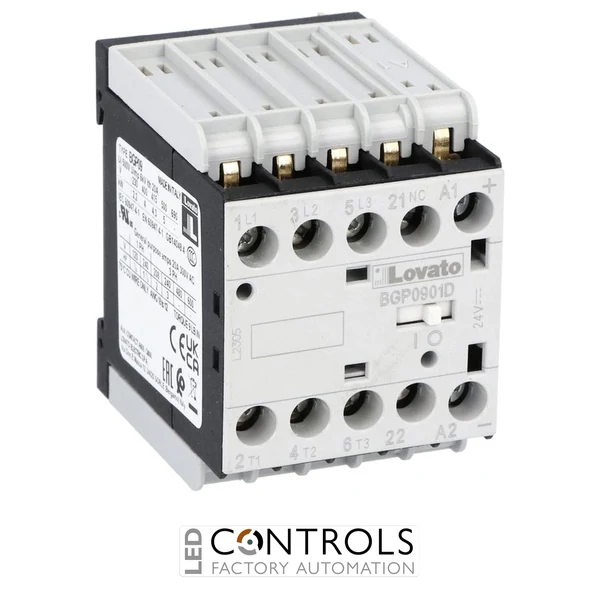

Lovato 11BGP0901D110 three-pole miniature contactor with 110 V DC coil, 9 A AC3 operational current and integrated 1NC auxiliary contact for industrial motor control and automation systems.
£71.73
The Lovato 11BGP0901D110 is a compact and reliable three-pole mini contactor designed for efficient switching and control of motors and electrical loads in industrial automation, machinery and electrical control systems. As part of the Lovato BG series contactors, it provides dependable performance with a compact design suitable for modern industrial installations.
This contactor features a 110V DC coil, three main power contacts and one normally closed auxiliary contact. Its rear PCB solder pin connection, compact dimensions and flexible mounting options make it suitable for OEM machinery, automation systems and industrial control panels requiring reliable DC coil operation.
With an IEC AC-3 operating current rating of 9A and a motor switching capability of approximately 4 kW at 400V AC, the Lovato 11BGP0901D110 is ideal for controlling small motors, pumps, fans, conveyors and industrial equipment where dependable switching performance is required.
Mini contactors such as the Lovato 11BGP0901D110 provide dependable switching control for motors and electrical loads in industrial environments. They allow automation systems to safely manage equipment operation while maintaining a compact electrical panel footprint.
The Lovato BG series is designed for machine builders, OEM manufacturers and electrical engineers requiring compact switching devices with reliable performance, easy installation and compatibility with modern automation systems.
| Power | 4 kW |
|---|---|
| Current | 9 A |
| Voltage | 110 V |
| Phase | Three Phase |
| Series | BG Mini Contactors |
| Product type | Miniature contactor |
| Number of poles | 3 |
| Main contact configuration | 3NO |
| Auxiliary contact configuration | 1NC |
| Rated operational current AC3 | 9 A |
| Motor power at 400 V AC | 4.0 kW |
| Coil type | DC coil |
| Rated coil voltage | 110 V DC |
| Rated insulation voltage | 690 V |
| Mounting type | DIN rail / screw mounting |
| Terminal type | Rear PCB solder pin |
| Operating temperature | -50 °C to +70 °C |
| Width | approx. 44 mm |
| Height | approx. 58 mm |
| Depth | approx. 57 mm |
| Weight | approx. 243 g |
The Lovato 11BGP0901D110 is a three-pole mini contactor used for switching and controlling motors and electrical loads in industrial automation systems.
The contactor operates with a 110V DC coil.
The contactor supports an IEC AC-3 operating current of 9A and is suitable for motors up to approximately 4 kW at 400V AC.
Yes, the Lovato 11BGP0901D110 includes one built-in normally closed auxiliary contact.
This contactor is designed for installation in electrical panels, automation cabinets and industrial control systems using DIN rail or screw mounting.
Lovato BG series contactors are widely used in industrial control systems to provide reliable switching, compact installation and dependable motor management solutions for automation engineers and machine builders.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 11BGP0901D110 Mini Contactor 110V DC 3 Pole 9A", "sku": "11BGP0901D110", "mpn": "11BGP0901D110", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Contactors", "description": "Lovato 11BGP0901D110 three-pole mini contactor with 110V DC coil, 9A AC-3 rating and 1NC auxiliary contact for industrial motor control and automation applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Poles", "value": "3" }, { "@type": "PropertyValue", "name": "Coil voltage", "value": "110V DC" }, { "@type": "PropertyValue", "name": "Operating current", "value": "9 A AC-3" }, { "@type": "PropertyValue", "name": "Auxiliary contact", "value": "1NC" }, { "@type": "PropertyValue", "name": "Mounting", "value": "DIN rail / screw mounting" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 11BGP0901D110 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 11BGP0901D110 is a three-pole mini contactor used for switching and controlling motors and electrical loads in industrial automation systems." } }, { "@type": "Question", "name": "What coil voltage does this contactor require?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor operates with a 110V DC coil." } }, { "@type": "Question", "name": "What current rating does the contactor support?", "acceptedAnswer": { "@type": "Answer", "text": "The contactor supports an IEC AC-3 operating current of 9A and is suitable for motors up to approximately 4 kW at 400V AC." } }, { "@type": "Question", "name": "Does this contactor include auxiliary contacts?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the Lovato 11BGP0901D110 includes one built-in normally closed auxiliary contact." } }, { "@type": "Question", "name": "Where can this mini contactor be installed?", "acceptedAnswer": { "@type": "Answer", "text": "This contactor is designed for installation in electrical panels, automation cabinets and industrial control systems using DIN rail or screw mounting." } } ] }
